Kramer Electronics, Ltd. Preliminary USER MANUAL Models: VM-2N, Video Audio Distributor VM-5S, Video Audio Distributor VM-50HN, Headphone Distributor VM-50V, 1:5 Video Distributor VM-50YC, 1:5 s-Video Distributor... -
Page 2: Table Of Contents
Figure 3: VM-50HN Headphone Distributor Figure 4: VM-50V 1:5 Video Distributor Figure 5: VM-50YC 1:5 s-Video Distributor Figure 6: Connecting the VM-2N Video Audio Distributor Figure 7: Connecting the VM-5S Video Audio Distributor Figure 8: Connecting the VM-50HN Headphone Distributor... - Page 3 Contents Tables Table 1: VM-2N Video Audio Distributor Table 2: VM-5S Video Audio Distributor Table 3: VM-50HN Headphone Distributor Table 4: VM-50V 1:5 Video Distributor Table 5: VM-50YC 1:5 s-Video Distributor Table 6: VM-2N Technical Specifications Table 7: VM-50HN Technical Specifications...
-
Page 4: Introduction
2 We recommend that you use only the power cord supplied with this device 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 5: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 6 Getting Started...
-
Page 7: Overview
VM-50YC 1:5 s-Video Distributor, see section The VM-2N Video Audio Distributor The Kramer VM-2N is a high-performance distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs. -
Page 8: The Vm-50Hn Headphone Distributor
MultiTOOLS size The VM-50V 1:5 Video Distributor The Kramer VM-50V is a high-performance distribution amplifier for composite or SD I signals. It takes one input, provides correct buffering and isolation, and distributes the signal to five identical outputs. More specifically, the VM-50V features: •... -
Page 9: Your Distributor
VM-50HN Headphone Distributor, see section • VM-50V 1:5 Video Distributor, see section • VM-50YC 1:5 s-Video Distributor, see section 1 For example, part number 22535-000251 2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 10: Your Vm-2N Video Audio Distributor

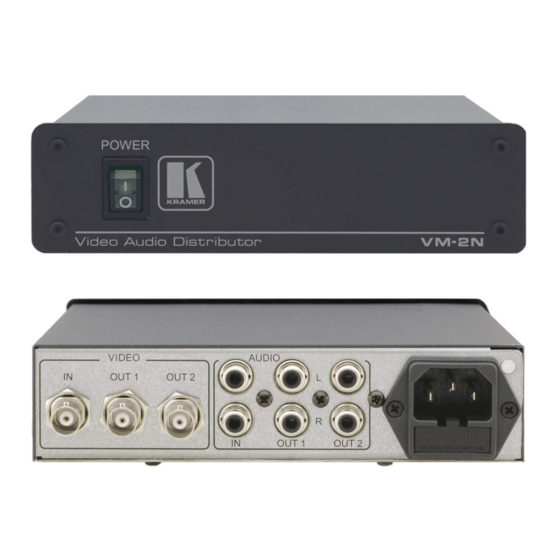

Your Distributor Your VM-2N Video Audio Distributor Figure 1 Table 1 define the VM-2N. Figure 1: VM-2N Video Audio Distributor Table 1: VM-2N Video Audio Distributor Feature Function Illuminated Power Switch Illuminated switch for turning the unit ON or OFF... -
Page 11: Your Vm-5S Video Audio Distributor
VIDEO EQ. Control (underside) Adjust the cable compensation equalization level VIDEO LEVEL Control (underside) Adjust the video signal output level 1 Insert a small screwdriver into the hole and carefully rotate it to trim the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 12: Your Vm-50Hn Headphone Distributor
Your Distributor Your VM-50HN Headphone Distributor Figure 3 Table 3 define the VM-50HN. Figure 3: VM-50HN Headphone Distributor Table 3: VM-50HN Headphone Distributor Feature Function INPUT 6.5mm phone connector Connects to the input source OUT 6.5mm phone connectors Connect to the headphones (1 to 5) 12V DC Connector Connects to the 12V DC power supply POWER LED... -
Page 13: Your Vm-50V 1:5 Video Distributor
Connects to the 12V DC power supply LEVEL Control (underside) Adjust the audio signal output level EQ. Control (underside) Adjust the cable compensation equalization level 1 Insert a small screwdriver into the hole and carefully rotate it to trim the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Your Vm-50Yc 1:5 S-Video Distributor
12V DC Connector Connects to the 12V DC power supply Connecting the Distributors This section describes how to connect the: • VM-2N Video Audio Distributor, see section • VM-5S Video Audio Distributor, see section • VM-50HN Headphone Distributor, see section •... -
Page 15: Connecting The Vm-2N Video Audio Distributor
Figure Figure 6: Connecting the VM-2N Video Audio Distributor 1 Switch OFF the power on each device before connecting it to your VM-2N. After connecting, switch on the VM-2N power and then switch on the power on each device 2 You are not required to connect two acceptors... -
Page 16: Connecting The Vm-5S Video Audio Distributor
Connecting the Distributors Connecting the VM-5S Video Audio Distributor To connect the VM-5S, as shown in Figure 7, do the following 1. Connect the input video source (for example, a video player) to the VIDEO IN BNC connector. 2. Connect the input audio source (for example, the audio from the video player) to the AUDIO IN RCA connectors noting the right and left channels. -
Page 17: Connecting The Vm-50Hn Headphone Distributor
1 Switch OFF the power on each device before connecting it to your VM-50HN. After connecting, switch on the VM-50HN power and then switch on the power on each device 2 You are not required to connect all the acceptors KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 18: Connecting The Vm-50V 1:5 Video Distributor
Connecting the Distributors Connecting the VM-50V 1:5 Video Distributor To connect the VM-50V, as shown in Figure 9, do the following 1. Connect the input video source (for example, a composite video player) to the INPUT IN BNC connector. 2. If looping the input to another device, connect a video acceptor (for example a monitor) to the INPUT LOOP BNC connector. -
Page 19: Connecting The Vm-50Yc 1:5 S-Video Distributor
1 Switch OFF the power on each device before connecting it to your VM-50YC. After connecting, switch on the VM-50YC power and then switch on the power on each device 2 You are not required to connect all the acceptors KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 20: Technical Specifications
Technical Specifications Technical Specifications Tables 6 to 10 list technical specifications for the distributors: Table 6: VM-2N Technical Specifications INPUT: 1 composite video: DC coupled. 1Vpp/75 on a BNC connector; 1 audio: stereo/balanced mono. +4dBu/50k on RCA connectors OUTPUT: 2 composite video: 1Vpp/75 on BNC connectors. -
Page 21: Table 8: Vm-5S Technical Specifications
12V DC, 40mA DIMENSIONS: 16.5cm x 12cm x 4.5cm (6.5” x 4.7” x 2.8”) W, D, H WEIGHT: 0.62kg (1.4lbs) approx ACCESSORIES: 12V DC power supply, brackets for stacking multiple units OPTIONS: RK-1 19" rack adapter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 22: Table 10: Vm-50Yc Technical Specifications
Technical Specifications Table 10: VM-50YC Technical Specifications 1 s-Video, looping: 1Vpp/75 Ω (Y), 0.3 Vpp/75Ω (C), on 4 - pin INPUT: connectors with a termination switch 5 s-Video: 1Vpp/75 Ω (Y), 0.3 Vpp/75Ω (C), on 4 -pin connectors OUTPUTS: MAX. VIDEO OUTPUT: 2Vpp (Y) s-VIDEO BANDWIDTH (-3dB): 285MHz (Y) - Page 23 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
