Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VM-5HDxln 1:5 3G HD-SDI DA P/N: 2900-300213 Rev 1... -
Page 3: Table Of Contents
Achieving the Best Performance Overview Defining the VM-5HDxln 1:5 3G HD-SDI DA Connecting the VM-5HDxln Technical Specifications Figures F igure 1: VM-5HDxln 1:5 3G HD-SDI DA Front Panel F igure 2: Connecting the VM-5HDxln 1:5 3G HD-SDI DA VM-5HDxln – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VM-5HDxln 1:5 3G HD-SDI DA away from moisture, • excessive sunlight and dust Caution:... -
Page 6: Overview
Overview The Kramer VM-5HDxln 1:5 3G HD-SDI DA is a high performance 1:5 distributor for SDI video signals. It accepts one input, equalizes and reclocks it, and distributes the signal to five identical outputs. The VM-5HDxln: • Supports up to 400m cable equalization (400m for SD signals, 220m for 1.5Gbps HD signals, and 200m for 3Gbps HD signals) -
Page 7: Defining The Vm-5Hdxln 1:5 3G Hd-Sdi Da

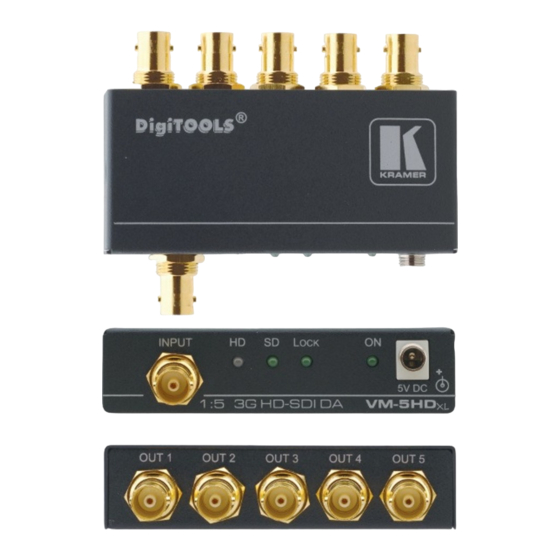

Defining the VM-5HDxln 1:5 3G HD-SDI DA Figure 1 defines the front and rear panels of the VM-5HDxln. Figure 1: VM-5HDxln 1:5 3G HD-SDI DA Front Panel Feature Function INPUT BNC Connector Connect to an SDI source HD LED Lights blue when the SDI signal is HD... -
Page 8: Connecting The Vm-5Hdxln
Figure 2: Connecting the VM-5HDxln 1:5 3G HD-SDI DA To connect the VM-5HDxln as illustrated in the example in Figure 1. Connect an SDI video source (for example, a digital camera) to the INPUT BNC connector. -
Page 9: Technical Specifications
STORAGE TEMPERATURE: –45° to +72°C (–49° to 162°F) HUMIDITY: 10% to 90%, RHL non-condensing DIMENSIONS: 9.9cm x 8.0cm x 2.5cm (3.9" x 3.15" x 1.0") W, D, H. WEIGHT: 0.2kg (0.44lbs.) approx. ACCESSORIES: Power supply, mounting bracket VM-5HDxln - Technical Specifications... - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
