Summary of Contents for Kramer VM-5HDxl
- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VM-5HDxl 1:5 3G HD-SDI DA P/N: 2900-000773 Rev 2...
-
Page 3: Table Of Contents
Getting Started Achieving the Best Performance Overview Defining the VM-5HDxl 1:5 3G HD-SDI DA Connecting the VM-5HDxl Technical Specifications Figures Figure 1: VM-5HDxl 1:5 3G HD-SDI DA Front Panel Figure 2: Connecting the VM-5HDxl 1:5 3G HD-SDI DA VM-5HDxl – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VM-5HDxl 1:5 3G HD-SDI DA away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 6: Overview
Overview The Kramer VM-5HDxl 1:5 3G HD-SDI DA is a high performance 1:5 distributor for SDI video signals. It accepts one input, equalizes and reclocks it, and distr butes the signal to five identical outputs. The VM-5HDxl: • Supports up to 400m cable equalization (400m for SD signals, 220m for 1.5Gbps HD signals, and 200m for 3Gbps HD signals) -
Page 7: Defining The Vm-5Hdxl 1:5 3G Hd-Sdi Da

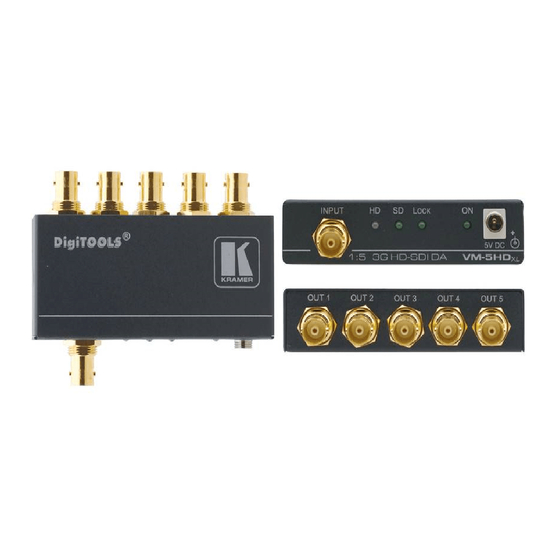

Defining the VM-5HDxl 1:5 3G HD-SDI DA Figure 1 defines the front and rear panels of the VM-5HDxl. Figure 1: VM-5HDxl 1 5 3G HD-SDI DA Front Panel Feature Function INPUT BNC Connector Connect to an SDI source HD LED... -
Page 8: Connecting The Vm-5Hdxl
Figure 2: Connecting the VM-5HDxl 1:5 3G HD-SDI DA To connect the VM-5HDxl as illustrated in the example in Figure 1. Connect an SDI video source (for example, a digital camera) to the INPUT BNC connector. -
Page 9: Technical Specifications
–45° to +72°C (–49° to 162°F) HUMIDITY: 10% to 90%, RHL non-condensing DIMENSIONS: 9.9cm x 8.0cm x 2 5cm (3.9" x 3.15" x 1.0") W, D, H. WEIGHT: 0.2kg (0.44lbs.) approx. ACCESSORIES: Power supply, mounting bracket VM-5HDxl - Technical Specifications... - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
