KR AMER ELECTRON ICS LT D. USER MANUAL MODEL: VM-5ARII Video Audio Distribution Amplifier VM-20ARII 1:20 Programmable Video Audio Distributor P/N: 2900-300148 Rev 1... -
Page 3: Table Of Contents
Technical Specifications Figures Figure 1: VM-5ARII Video Audio Distribution Amplifier – Front and Rear Panels Figure 2: VM-20ARII 1:20 Programmable Video Audio Distributor – Front Panel Figure 3: VM-20ARII 1:20 Programmable Video Audio Distributor – Rear Panel ... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
(often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer product away from moisture, excessive sunlight and dust VM-5ARII, VM-20ARII - Getting Started... -
Page 6: Overview

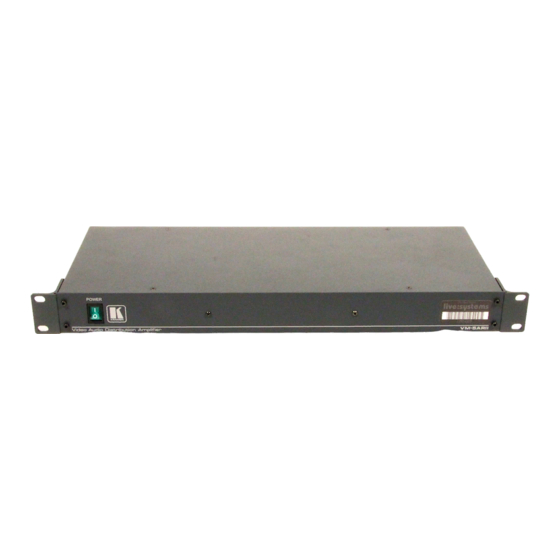

Section 3.2 The VM-5ARII Video Audio Distribution Amplifier The Kramer VM-5ARII is a high-performance distribution amplifier for composite video and unbalanced stereo audio signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs. - Page 7 1 unbalanced stereo input and 20 outputs on RCA connectors • Looped input capability • Grouped audio level control • Selectable input signal termination • Audio level and video level and equalization controls • Video AC/DC coupling selection • Standard 19” 2U rack mount size VM-5ARII, VM-20ARII - Overview...
-
Page 8: Defining The Vm-5Arii And Vm-20Arii
Defining the VM-5ARII and VM-20ARII This section defines your: • VM-5ARII Video Audio Distribution Amplifier, see Figure 1 • VM-20ARII 1:20 Programmable Video Audio Distributor, see Figure Figure Figure 4 VM-5ARII, VM-20ARII - Defining the VM-5ARII and VM-20ARII... -
Page 9: Figure 1: Vm-5Arii Video Audio Distribution Amplifier - Front And Rear Panels
Figure 1: VM-5ARII Video Audio Distribution Amplifier – Front and Rear Panels Feature Function Illuminated Power Switch Illuminated switch for turning the unit ON or OFF VIDEO IN BNC Connector Connects to the video source 75Ω/Hi-Z Pushbutton Press in for input 75Ω termination, release for no termination... -
Page 10: Figure 2: Vm-20Arii 1:20 Programmable Video Audio Distributor - Front Panel
4x1:5 – Splits four inputs to four consecutive sets of five outputs each 1:10+2x1:5 – Splits input "1" to outputs "1-10", input "3" to outputs "11-15" and input "4" to outputs "16-20" VM-5ARII, VM-20ARII - Defining the VM-5ARII and VM-20ARII... -
Page 11: Figure 3: Vm-20Arii 1:20 Programmable Video Audio Distributor - Rear Panel
Connect to the audio acceptors (from 1 to 20) VIDEO OUTPUTS (1-20) BNC Connectors Connect to the video acceptors (from 1 to 20) Power Connector with Fuse AC connector for supplying power to the unit VM-5ARII, VM-20ARII - Defining the VM-5ARII and VM-20ARII... -
Page 12: Figure 4: Vm-20Arii Underside Switches
Figure 4: VM-20ARII Underside Switches Feature Function TERM/75Ω Switches (IN1-IN4) Select 75Ω for termination (up) or HI-Z for looping (down) AC/DC Switches (IN1-IN4) Select DC (up) or AC (down) coupling VM-5ARII, VM-20ARII - Defining the VM-5ARII and VM-20ARII... -
Page 13: Installing In A Rack
Installing in a Rack This section provides instructions for rack mounting the units. Note: The VM-20ARII is a 2U unit and has rack “ears” with 5 mounting holes and screws. VM-5ARII, VM-20ARII - Installing in a Rack... -
Page 14: Connecting The Distribution Amplifiers
You are not required to connect two acceptors. 5. If needed, connect the VIDEO LOOP BNC connector to an acceptor (for example, a composite video display or another VM-5ARII) and set the termination pushbutton to 75Ω. 6. Connect the power cord to the unit (not shown in the illustration) and then to the mains electricity. -
Page 15: Connecting The Vm-20Arii Video Audio Distributor
VIDEO INPUTS 1 to 4 BNC connectors. 2. Connect up to 4 input audio sources (for example, the audio from the video players) to the AUDIO INPUTS RCA connectors 1 to 4 noting the right and left channels. VM-5ARII, VM-20ARII - Connecting the Distribution Amplifiers... - Page 16 Press the 4x1:5 switch to split four inputs to four consecutive sets of five outputs each Press the 1:10+2x1:5 switch to split input "1" to outputs "1-10", input "3" to outputs "11-15" and input "4" to outputs "16-20" VM-5ARII, VM-20ARII - Connecting the Distribution Amplifiers...
-
Page 17: Figure 6: Connecting The Vm-20Arii
Figure 6: Connecting the VM-20ARII VM-5ARII, VM-20ARII - Connecting the Distribution Amplifiers... -
Page 18: Technical Specifications
POWER SOURCE: 230V AC, 50/60Hz, (115V U.S.A.) 21VA. DIMENSIONS: 19” x 7” x 1U W, D, H, rack mountable. WEIGHT: 1.94kg (4.3lbs) approx. ACCESORIES: Power cord. Specifications are subject to change without notice at http://www.kramerelectronics.com VM-5ARII, VM-20ARII - Technical Specifications... - Page 19 Universal switching power supply: 100-240 VAC, 50/60Hz 18.5VA DIMENSIONS: 19” x 7” x 2U W, D, H, rack mountable WEIGHT: 3.6kg (8lbs) approx ACCESORIES: Power cord Specifications are subject to change without notice at http://www.kramerelectronics.com VM-5ARII, VM-20ARII - Technical Specifications...
- Page 20 VM-5ARII, VM-20ARII - Technical Specifications...
- Page 21 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
