Scan for full manual
Step 1: Check what's in the box

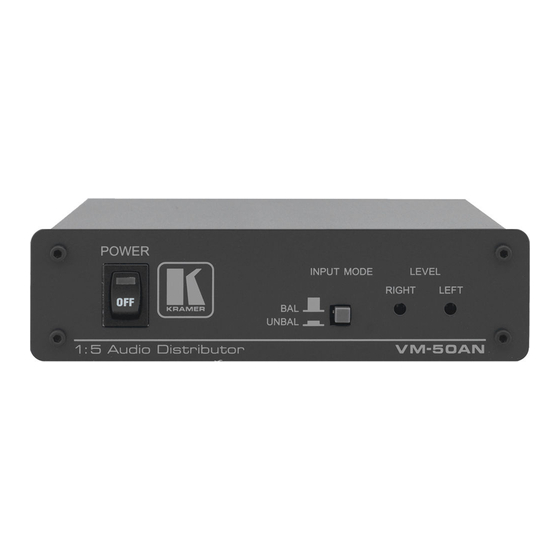

VM-50AN 1:5 Audio Distributor
Power supply (12V DC)

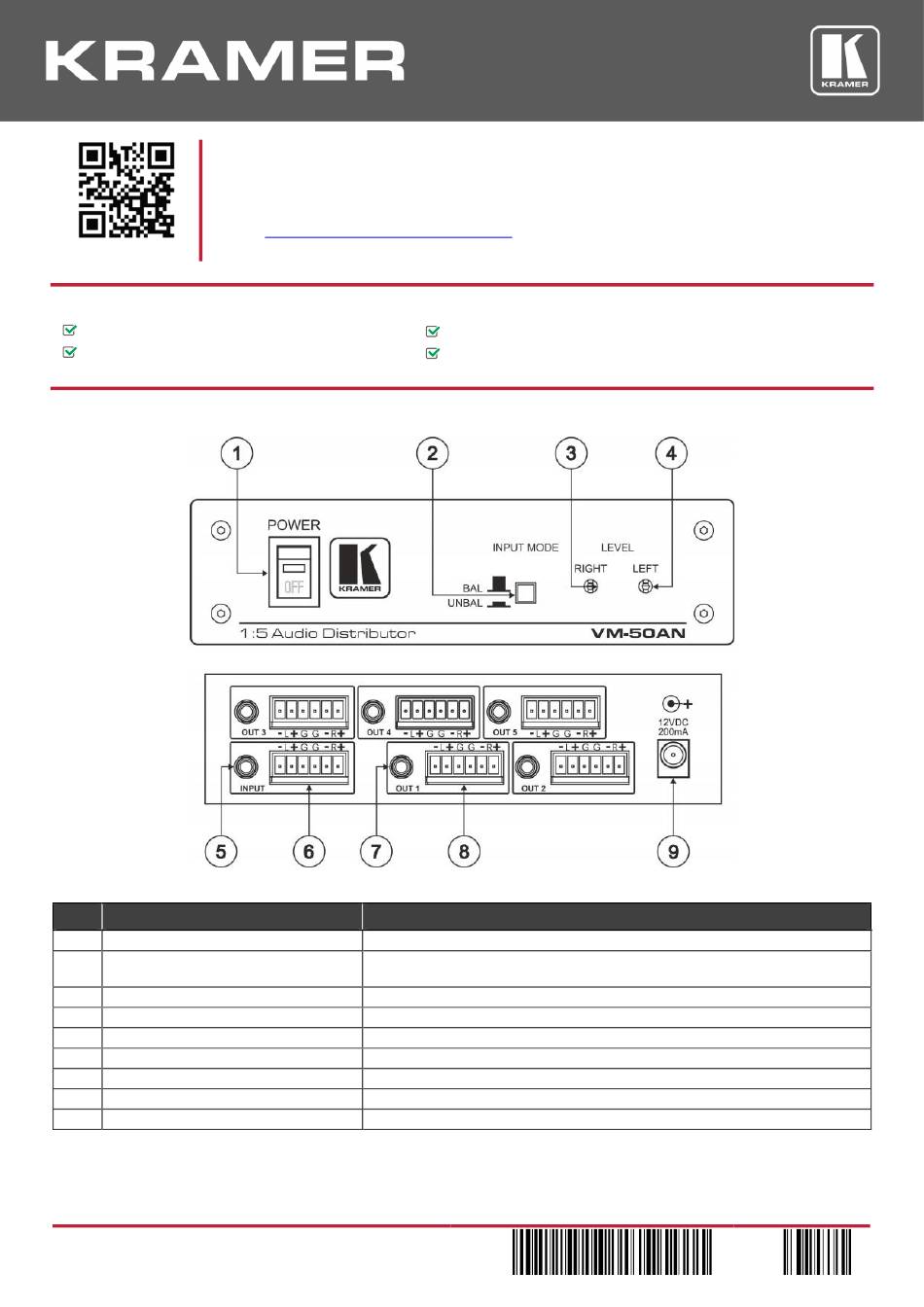

Step 2: Get to know your VM-50AN
#
Feature
1
POWER Switch
2
INPUT MODE BAL/UNBAL Button
3
RIGHT LEVEL Trimmer
4
LEFT LEVEL Trimmer
5
INPUT 3.5mm Mini Plug Connector
6
INPUT Terminal Block Connector
7
OUT 3.5mm Mini Plug Connector
8
OUT Terminal Block Connector
9
12 VDC 200mA
VM-50AN Quick Start
VM-50AN Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VM-50AN
upgrades are available.
Function
Illuminated switch supplying power to the unit
When released, selects the balanced stereo audio input when pushed in, selects
the unbalanced stereo audio
Adjusts the right output signal level (use a small screwdriver)
Adjusts the left output signal level (use a small screwdriver)
Connects to the unbalanced audio source
Connects to the balanced audio source
Connects to the unbalanced audio acceptor (from 1 to 5)
Connects to the balanced audio acceptor (from 1 to 5)
+12V DC connector for powering the unit
VM-50AN
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 2 6 4 QS
Rev: 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer VM-50AN
Summary of Contents for Kramer VM-50AN
- Page 1 Step 1: Check what’s in the box VM-50AN 1:5 Audio Distributor 4 Rubber feet Power supply (12V DC) 1 Quick start guide Step 2: Get to know your VM-50AN Feature Function POWER Switch Illuminated switch supplying power to the unit...
- Page 2 • Reliable earthing of rack-mounted equipment should be maintained. Step 4: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your VM-50AN. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-50AN.
