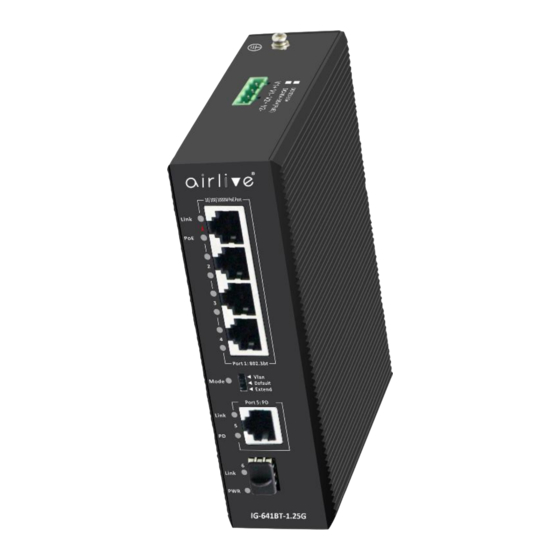

- Page 1 IG-641BT-1.25G User Manual Aug. 10, 2021 Ver. 1.0...
- Page 2 AirLive Technology Corp. AirLive Technology Corp has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
- Page 3 Table of Contents 1. Overview ....................4 1.1 Power On Switch ................5 1.2 Switch Connections ................6...
- Page 4 For the application where management is not really needed but VLAN is useful and budget is controlled, the AirLive IG-641BT can help. Using a smart DIP-switch to turn the IG-641BT VLAN feature and PoE Watch dog on. Moreover Port 4 can support data and power up to 250meter at 10Mbps over Cat.5e cable that help where a PD is installed far away, and a...
- Page 5 1.1 Power On Switch Power On the IG-641BT-1.25G Switch. The Switch can be powered by the Standard 4 Pin Terminal block or also via Port 5 (Uplink) of the Switch with a max of 60W PoE. Input Voltage: DC48~55V Input Type: 4 Pin Terminal (block V1+V1- V2+ V1-) Supports Dual Power Input PoE Input: Uplink Gigabit port (port 5) supports PoE power Supply, which can receive power up to 60W.
- Page 6 1.2 Switch Connections AirLive IGM-642BT-2.5G Industrial switch supports the high-power output PoE++ at 90W for Port 1. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more.
