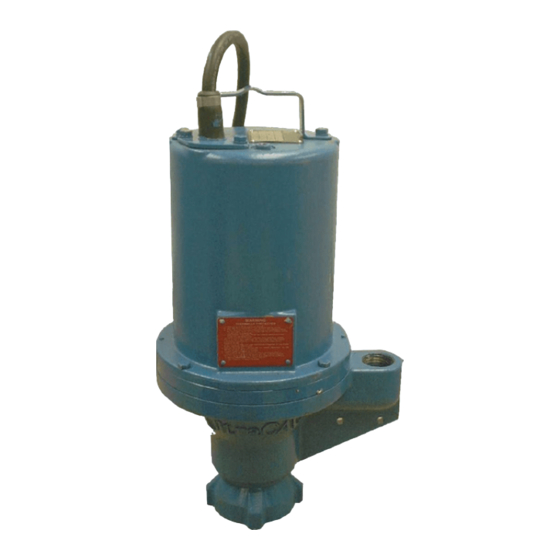

Submersible Progressing Cavity Grinder Pump
IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notification.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
INSTALLATION MANUAL
Series: SGPC
1.0 HP, 1750 RPM,
60 Hz.
SUPERSEDED
Some parts may NOT
ultra
83 West Drive, Bramton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
be available
Form No. 108093-Rev. P
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crane Barneb PS SGPC Series
Summary of Contents for Crane Barneb PS SGPC Series
- Page 1 Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notification. A Crane Co. Company...
-
Page 2: Safety First
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc © Crane Pumps & Systems, Inc. 2000, 2003, 5/04, 8/04, 12/05, 1/06... - Page 3 USER GUIDE The grinder pump Congratulations on generates sufficient your purchase of a Barnes UltraGRIND™ grinder pressure to pump this slurry from your home to pump system. With proper care and by following the wastewater plant. a few simple guidelines your grinder pump will give you many years of dependable service.
-
Page 4: Pump Specifications
PUMP SPECIFICATIONS: DISCHARGE ....... 1¼” NPT, Vertical CORD: AU & CVP ..CSA/UL Approved 12/5 Type SOW LIQUID TEMPERATURE ..104°F (40°C) Continuous L ..... CSA/UL Approved 12/3 Type SOW MOTOR HOUSING ..... Cast Iron ASTM A-48, Class 30 SPEED ........ 1750 RPM, 60Hz SEAL PLATE ...... - Page 5 inches (mm) SGPC1024AUF SGPC1024AUE* (*) ESPS-150 Level Control Sold Separatly...
- Page 6 PUMP MODEL VOLT NEMA FULL LOAD LOCKED WINDING 60Hz START AMPS ROTOR RESISTANCE CODE 60Hz AMPS MAIN -- START SGPC1014L 18.4 38.0 0.6 -- 6.2 SGPC1024L 17.5 2.3 -- 9.7 SGPC1024AU** 17.5 2.3 -- 9.7 SGPC1024AU* 17.5 2.3 -- 9.7 SGPC1024CVP 17.5 2.3 -- 9.7...
-
Page 7: Installation
SERVICE CENTERS: For the location of the nearest Barnes Service Center, check your Barnes representative or Crane Pumps & Systems, Inc., FIGURE 2 - AUF Series Service Department in Piqua, Ohio, telephone (937) 778-8947 or in Brampton, Ontario, Canada (905) 457-6223. - Page 8 SGPC “AUF” SERIES AUTOMATIC PUMPS: NOTE: For automatic pumps using ESPS level control, refer to ESPS manual. Securely mounted to a fixed object such as pipe, Automatic units are supplied with separate ON/OFF float brackets, etc. and ALARM float. The alarm float is attached to the top Has a three to three and one half-inch tether length.
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS: Wire Size - If additional cord is required consult a qualified Pump Cord - The cord assembly mounted to the pump electrician for proper wire size. must NOT be modified in any way except for shortening CORD CONNECTIONS: to a specific application. - Page 10 Wiring Schematic For Pumps with Dual Hole Motor Housing Single Phase 240 Volt AC with Closed Valve Protection (CVP) Single phase 240 Volt AC AU Series FIGURE 5...
- Page 11 SGPC GRINDER PUMP TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”...
- Page 12 MOVEABLE ASSEMBLY P/N: 116601 For SGPC UltraCAV Grider Pump with “C” Channel Rail ITEM NO. QTY. PART NO. DESCRIPTION 116610 Upper Bracket Kit 107368 Pipe Nipple 107360 Lower Guide Bracket Assembly 112354 Check Valve / Upper Moveable 116470 Street Elbow (*) Pump NOT included under these part numbers.
- Page 13 FIGURE 7...
-
Page 14: Parts Kits
PARTS KITS Seal Repair Kit ...P/N: 110477 Overhaul Kit ....P/N: 110478 Cutter Kit ....P/N: 110479 PARTS LIST ITEM PART NO. DESCRITION ITEM PART NO. DESCRIPTION 105196 Motor Housing 2-31051-224 O-Ring 105196HA Motor Housing w/Press cutout or AU 103760 Terminal Block (STD) 084343 Seal Plate 113271... - Page 15 NOTES:...
-
Page 16: Returned Goods
Crane Pumps & Systems, Inc. Distributor. RETURNED GOODS RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”. CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR. Products Returned Must Be Cleaned, Sanitized, Or Decontaminated As Necessary Prior To Shipment, To Insure That Employees Will Not Be Exposed To Health Hazards In Handling Said Material.
