Summary of Contents for SMART-AVI MXU-88

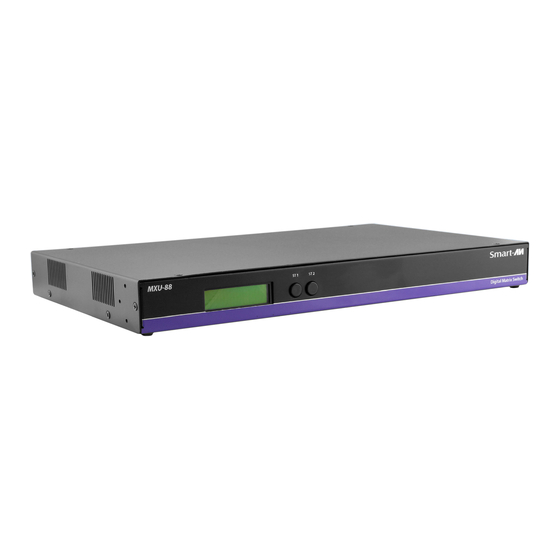

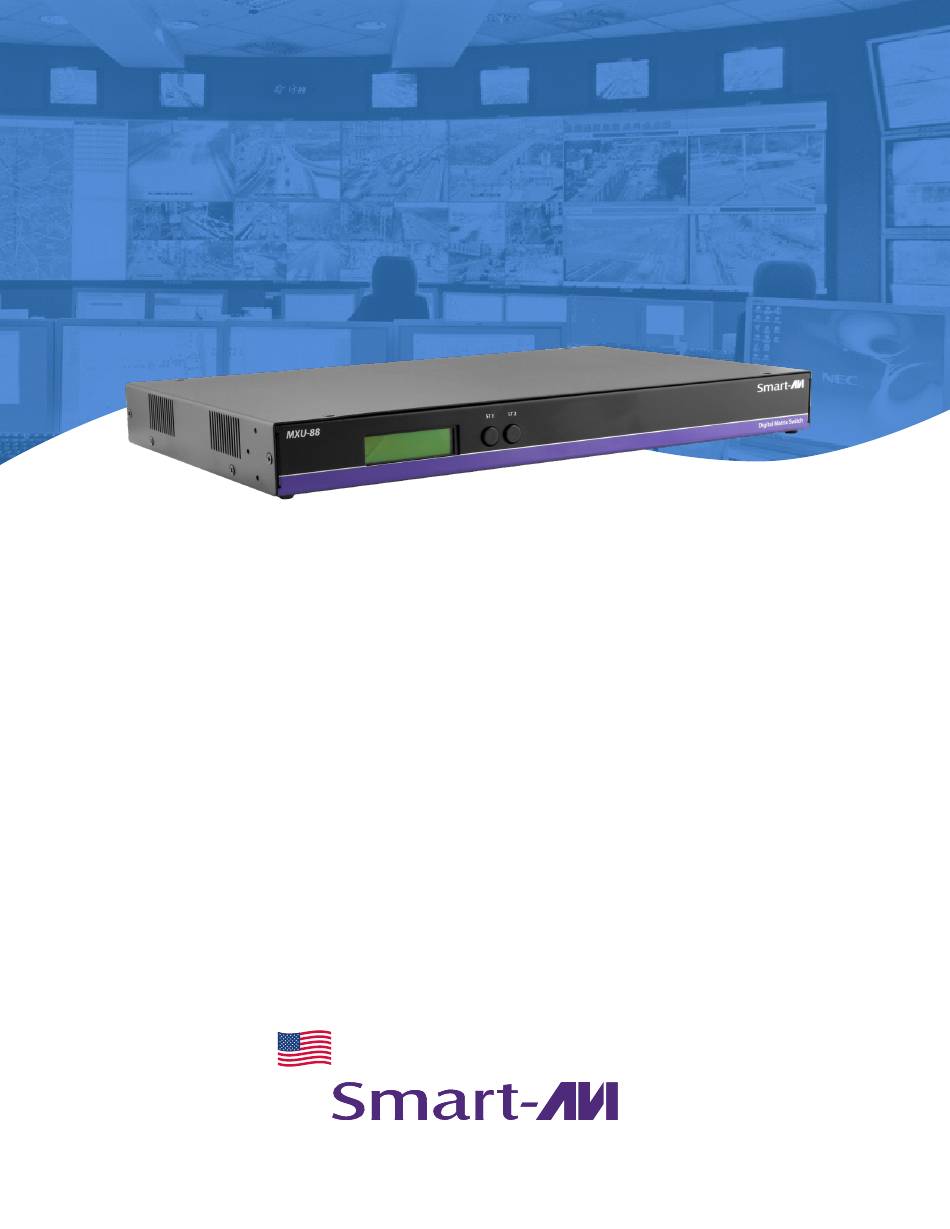

- Page 1 MXU-88 8X8 4K HDMI / USB 2.0 Matrix Switch USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?________________________________________________________________________ FRONT AND BACK___________________________________________________________________________ HARDWARE INSTALLATION__________________________________________________________________ FRONT PANEL CONTROL_____________________________________________________________________ CONTROL VIA ETHERNET____________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 8x8 4K HDMI / USB 2.0 Matrix Switch... -
Page 3: Technical Specifications
Technical Specifications Input Interface (8) HDMI Type A 19-pin Female TMDS Output Interface (8) HDMI Type A 19-pin Female TMDS Max. Resolutions Up to 4K (3840x2160 @ 30Hz) HDMI Version HDMI 1.4 Video Bandwidth 300 MHz Max. Cable Length Up to 20 ft Audio Stereo Embedded in HDMI signal Signal Type... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION MXU88-S 8x8 4K HDMI USB 2.0 Matrix Switch PS12VD5A-WLLMNT Power supply User Manual FRONT panel BACK panel 8x8 4K HDMI / USB 2.0 Matrix Switch... -
Page 5: Hardware Installation
3. Connect up to 8 computer’s USB outputs to the MXU-88 USB type B inputs 4. Connect HDMI (DVI-D with adapter) monitors to the MXU-88 HDMI outputs. 5. Connect up to 8 keyboards and mice to the MXU-88 type A USB outputs. USB hubs may be used to connect additional USB devices. -
Page 6: Front Panel Control
Info: Will display the name of the EDID currently in use. Exit: Will exit back to the main menu. • IP: Press ST1 & ST2 simultaneously to display the IP address in use by the MXU-88. 8x8 4K HDMI / USB 2.0 Matrix Switch... -
Page 7: Control Via Ethernet
CONTROL VIA ETHERNET On the front panel of the MXU-88 press the ST2 button until the cursor is by the IP selection. Press ST1 & ST2 simultaneously to display the IP address in use by the MXU-88. Enter the IP address into a web browser of your choice. - Page 8 CONTROL VIA ETHERNET (continued) From the main webpage you can select IP Config and a webpage will display with fields allowing to set the network settings for the MXU-88. 8x8 4K HDMI / USB 2.0 Matrix Switch...
-
Page 9: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 10 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
