U-Line H-8073 Quick Start Manual

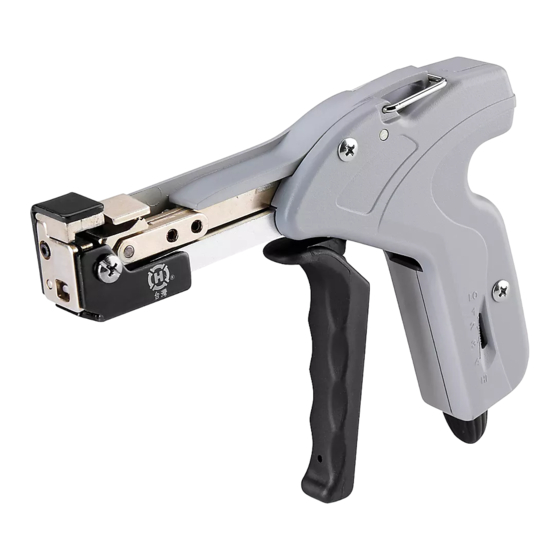

H-8073
STAINLESS STEEL
CABLE TIE GUN
OPERATING INSTRUCTIONS
1. Place stainless steel cable tie around bundle and
pull tight with hand. (See Figure 1)
Figure 1
2. Insert end of tie into mouth of machine.
(See Figure 2)
Figure 2
PAGE 1 OF 3
1-800-295-5510
uline.com
OPERATION
3. Pull trigger of cable tie gun to tighten stainless steel
cable tie. Cable tie gun will cut cable tie when it
reaches pre-set tension. (See Figure 3)
Figure 3
ADJUSTING GUN
1. Adjust tie tension by turning the tension adjustment
knob at the base of cable tie gun. (See Figure 4)
a. Turn knob to the right to increase tension.
b. Turn knob to the left to decrease tension.
NOTE: If tie is too loose, increase tension. If tie
breaks and is too tight, reduce tension.
Figure 4
Tension Adjustment
Knob
Para Español, vea página 2.
Pour le français, consulter la page 3.
0621 IH-8073
