U-Line H-11663 Instructions Manual

H-9152, H-9153, H-9706
H-11663, H-11664

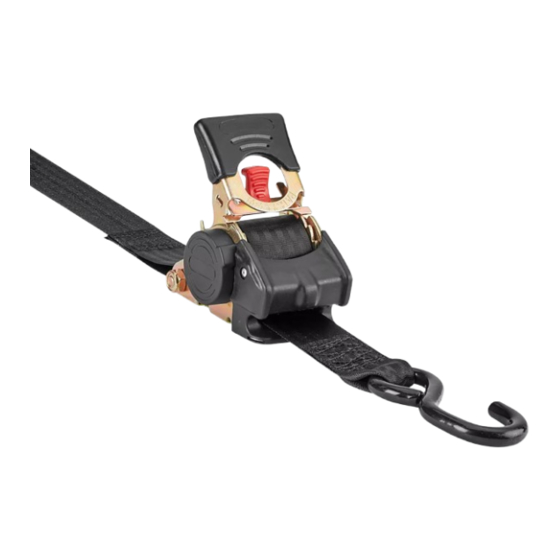

RETRACTABLE RATCHET
TIE-DOWNS
1. Press red button and move handle downwards into
release position. (See Figures 1a-1b)
Figure 1a
Red Button
Lock Position
2. Pull strap to desired length and hook to anchor
points. (See Figure 2)
Figure 2
NOTE: Handle must be in line with direction of
pull to achieve working load limit. (See Figure 3)
Figure 3
PAGE 1 OF 6
1-800-295-5510
uline.com
INSTRUCTIONS
Figure 1b
Release Position
3. Once hooked into place, press red button to tension
the strap. (See Figure 4)
Figure 4
4. Press red button and move handle upward into lock
position. (See Figures 5a-5b)
Figure 5a
Release Position
5. Once in lock position, move handle up and down to
tighten tie-down. When tight, return to lock position.
(See Figures 6a-6c)
Figure 6a
Figure 6c
Para Español, vea página 3-4.
Pour le français, consulter la page 5-6.
Press
Figure 5b
Lock Position
Figure 6b
Lock Position
