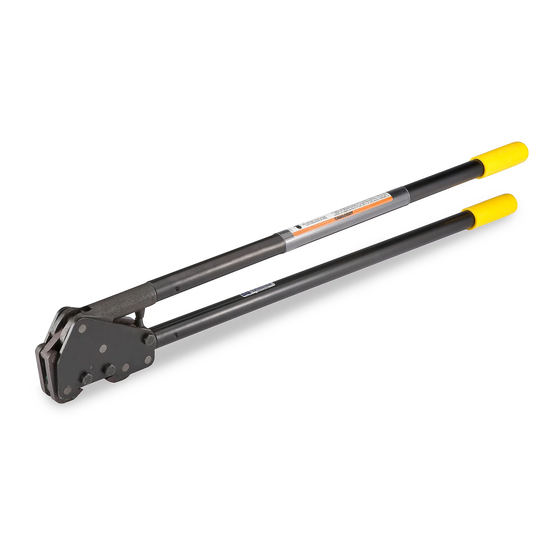

U-Line H-2584 Operating Instructions Manual

H-2584
2" HIGH TENSILE HEAVY
DUTY STEEL SEALER –
SIDE ACTION
GENERAL CONSIDERATIONS
1. EYE INJURY HAZARD - Failure to wear safety glasses
with side shields can result in severe eye injury or
blindness. Always wear safety glasses with side
shields that conform to ANSI Standard Z87.1 or EN 166.
2. FALL HAZARD - Maintaining improper footing and/or
balance when operating the tool can cause you to
fall. Do not use the tool when you are in an awkward
position.
3. CUT HAZARD - Handling strap or sharp parts could
result in cutting hands or fingers. Wear protective
gloves.
4. TRAINING - This tool must not be used by persons
not properly trained in its use. Be certain that you
receive proper training from your employer.
5. TOOL CARE - Take good care of the tool. Inspect
and clean it daily and lubricate it weekly. Replace
any worn or broken parts.
6. WORK AREA - Keep work areas uncluttered and well lit.
7. TENSIONING STRAP - When tensioning strap, use
proper tensioner for specific strap sizes. Read the
tensioner's operation and safety manual.
PROCEDURES FOR TOOL OPERATION
1. Before using this sealer, read all the instructions.
2. Always lift and carry the tool by the tool handle
knob. Lifting the tool at any other point may expose
the hand to a "pinch point."
PAGE 1 OF 6
1-800-295-5510
uline.com
SAFETY
3. Make sure the sealer jaws are placed directly on
the seal.
4. While sealing, position yourself to one side of the
tensioned strap.
5. This tool is a single notch-type sealer that requires
two sealing operations for each seal. A properly
notched seal will appear as shown. (See Figure 1)
Each notch should be placed no less than 3/16"
from the seal edge. If the notched seal does not
appear as shown, inspect the tool for worn and/or
damaged parts. Replace tool parts as needed. Do
not ship any loads secured with improperly notched
seals. Seal must be properly notched.
CUTTING TENSIONED STRAP
1. FLYING STRAP HAZARD - Using claw hammers,
crowbars, chisels, axes or similar tools will cause
tensioned strap to fly apart with hazardous force.
Use only cutters designed for cutting strap. (See
Figure 2) Read the instructions in the cutter's manual
for proper procedure in cutting strap.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
3/16"
Figure 1
0621 IH-2584
