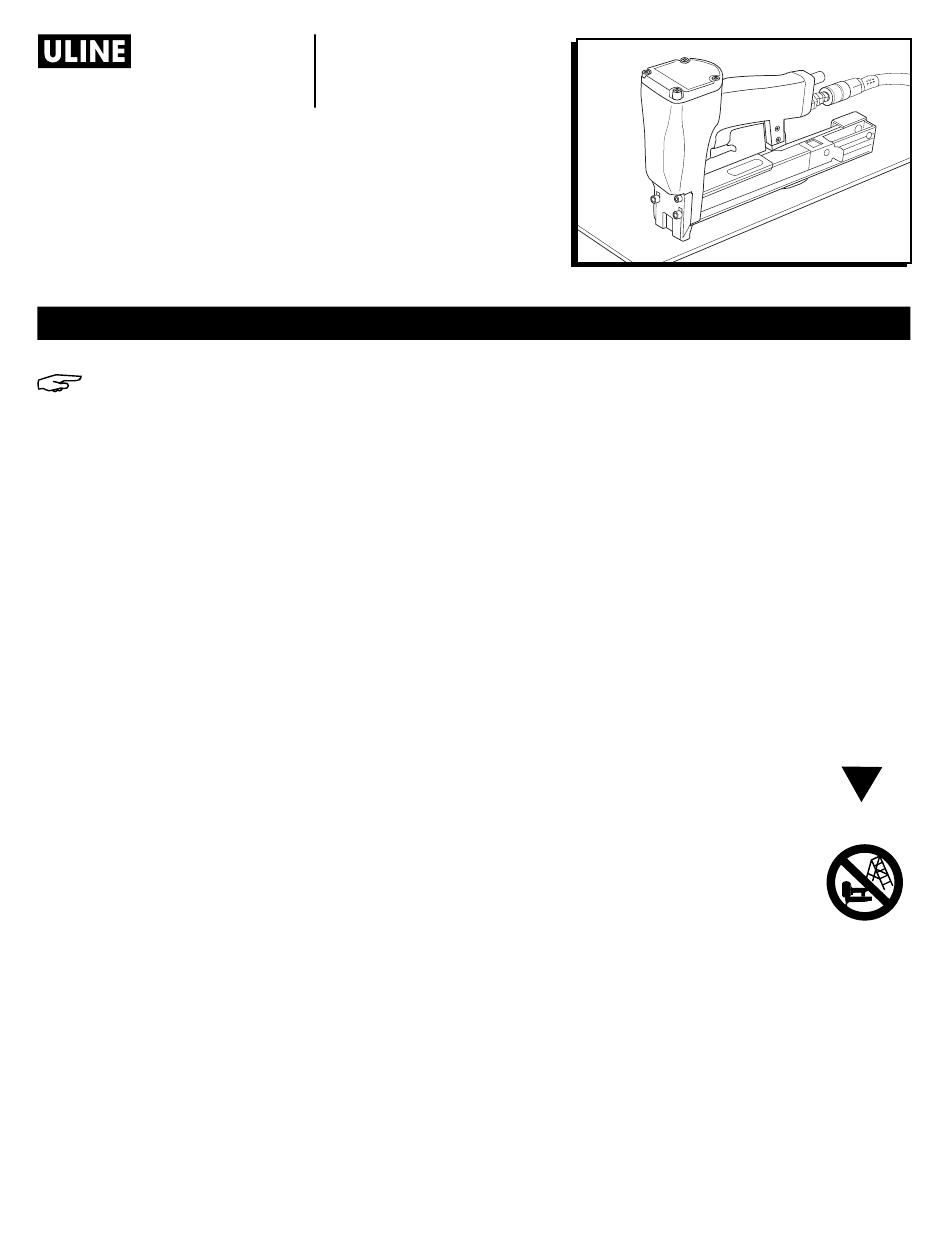

H-3535
KIHLBERG JK35-590
WIDE CROWN
PNEUMATIC TACKER
NOTE: Read these warnings to prevent injuries
to yourself and those around you.
• Never use oxygen, combustible gases, CO
or high pressure gas tanks as power sources. The
stapler may explode and cause serious injury.
• Use only dry, clean pressure-regulated compressed
air to drive the stapler.
• Eye protection must be worn by the operator and
others in the work area.
• Always use personal protection equipment as
required, such as ear protection, hard hats, etc.
• Never use a defective stapler. Ensure the trigger
operates properly and all screws and nuts are
secured tightly at all times.
• Do not modify the stapler.
• Always disconnect the stapler from the air supply
and empty the magazine when taking a break
or ending work, when servicing the stapler or
eliminating malfunctions.
• Never leave a loaded stapler unattended.
• Always assume that the stapler is loaded. No
horseplay! Respect the stapler as a working tool.
• Never point the stapler at yourself or at anyone
else, whether it contains staples or not. Always
remove your finger from the trigger when not
driving staples.
PAGE 1 OF 12
1-800-295-5510
uline.com
SAFETY
• Connect the stapler to the compressed air line
, steam
2
• Ensure that the air hose has the right dimension
• The stapler and the hose must have a coupling
• Avoid personal injury. Never hold your hand or
• Do not load the stapler with the trigger depressed.
• Use only Josef Kihlberg JK590 staples: Item #
• Always place yourself in a firmly balanced position
Pour le français, consulter les pages 9-12.
before loading staples. Maximum air pressure is
7 bar.
to avoid pressure drops which might cause
malfunctioning. Minimum 1/4".
which automatically bleeds all air pressure from
the stapler when it is disconnected.
another part of your body under the stapler.
S-18712, S-18713 and S-18714.
when using or handling the stapler.
Stapling and nailing tools that are
marked with an inverted equilateral
triangle may only be used in
conjunction with an operating safety
support.
Stapling and nailing tools that are
marked with this symbol must not be
used when standing on a stepladder
or scaffolding.
Para Español, vea páginas 5-8.
0923 IH-3535

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kihlberg JK35-590 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line Kihlberg JK35-590

  • Page 1 Para Español, vea páginas 5-8. Pour le français, consulter les pages 9-12. H-3535 1-800-295-5510 uline.com KIHLBERG JK35-590 WIDE CROWN PNEUMATIC TACKER SAFETY NOTE: Read these warnings to prevent injuries • Connect the stapler to the compressed air line to yourself and those around you.
  • Page 2: Loading The Magazine

    INSTRUCTIONS LOADING THE MAGAZINE 2. Place the stapler firmly on the work surface. Never drive staples into extremely hard or brittle material. Pull the pusher all the way back until it snaps in Do not drive staples at too steep an angle or too around the parking button.
  • Page 3: Maintenance

    INSTRUCTIONS CONTINUED TO EMPTY THE MAGAZINE REMOVING STUCK STAPLES Pull the pusher all the way back until it snaps in Park the staple pusher in its rear position. Loosen around the parking button. (See Figure 5) the two screws (a) holding the front plate and move the plate downward.
  • Page 4: Specifications

    SPECIFICATIONS MAGAZINE MFG. PART NO. HEIGHT LENGTH WIDTH WEIGHT STAPLES LENGTH CAPACITY JK35-590 195 mm 335 mm 65 mm 2,40 kg JK590 19-32 mm • Air pressure: • Magazine loading: Loaded from above. – Approx. 5,5-6,5 bar working pressure. • Firing of the stapler: Single shot firing. –...
  • Page 5: Advertencias De Seguridad

    H-3535 800-295-5510 uline.mx KIHLBERG JK35-590 ENGRAPADORA NEUMÁTICA DE CORONA ANCHA ADVERTENCIAS DE SEGURIDAD NOTA: Lea las siguientes advertencias para • Nunca apunte la engrapadora hacia usted ni evitar lesiones personales a usted y a quienes ninguna otra persona, sin importar si tiene grapas le rodean.
  • Page 6 INSTRUCCIONES CARGUE EL CARTUCHO 2. Coloque la engrapadora en una superficie de trabajo estable. No impulse las grapas en 1. Jale el impulsor completamente hacia atrás hasta materiales muy duros o frágiles. No impulse las que se inserte en el botón de freno. Cargue la tira de grapas en un ángulo demasiado pronunciado o grapas desde arriba por dentro del cartucho y empuje demasiado cerca del borde del trabajo;...
  • Page 7: Mantenimiento

    CONTINUACIÓN DE FUNCIONAMIENTO VACÍE EL CARTUCHO RETIRE LAS GRAPAS ATORADAS 1. Jale el impulsor hacia atrás hasta que se inserte en Estacione el impulsor de grapas en su posición el botón de freno. (Vea Diagrama 5) posterior. Afloje los 2 tornillos (a) que sostienen la placa frontal y mueva la placa hacia abajo.
  • Page 8: Especificaciones

    ESPECIFICACIONES Capacidad No. de Parte DEL Altura LARGO Ancho Peso Grapas LARGO FABRICANTE CARTUCHO JK35-590 195 mm 335 mm 65 mm 2.40 kg JK590 19 a 32 mm • Presión de aire: • Cómo cargar el cartucho: Se carga por la parte –...
  • Page 9 H-3535 1-800-295-5510 uline.ca KIHLBERG – AGRAFEUSE-CLOUEUSE JK35T-590 À LARGE COURONNE SÉCURITÉ REMARQUE : Lisez ces avertissements afin de • Ne pointez jamais l'agrafeuse sur vous-même ou sur prévenir toute blessure pour vous-même ou les une autre personne, qu'elle contienne des agrafes autres.
  • Page 10 UTILISATION CHARGEMENT DU MAGASIN 2. Appuyez fermement l'agrafeuse sur la surface de travail. Ne tentez pas d'agrafer des matériaux 1. Tirez le pousseur entièrement vers l'arrière jusqu'à extrêmement durs ou friables. Ne propulsez pas ce qu'il s'enclenche sur le bouton de verrouillage. les agrafes à...
  • Page 11: Entretien

    UTILISATION SUITE POUR VIDER LE MAGASIN 3. RETRAIT D'AGRAFES COINCÉES 1. Tirez le pousseur entièrement vers l'arrière jusqu'à ce 1. Verrouillez le pousseur d'agrafes dans sa position qu'il s'enclenche sur le bouton de verrouillage. arrière. Desserrez les 2 vis (a) de fixation de la plaque (Voir Figure 5) avant et déplacez la plaque vers le bas.
  • Page 12: Spécifications

    SPÉCIFICATIONS CAPACITÉ RÉF. DE FABRICATION HAUT. LONG. LARG. POIDS AGRAFES LONG. MAGASIN JK35-590 195 mm 335 mm 65 mm 2,40 kg JK590 19-32 mm • Pression d'air : • Déclenchement de l'agrafeuse : propulsion – Pression de service d'environ 5,5-6,5 bars. d'agrafes uniques. – Pression d'air maximale de 7 bars. •...
