ASSEMBLY INSTRUCTIONS
7
9

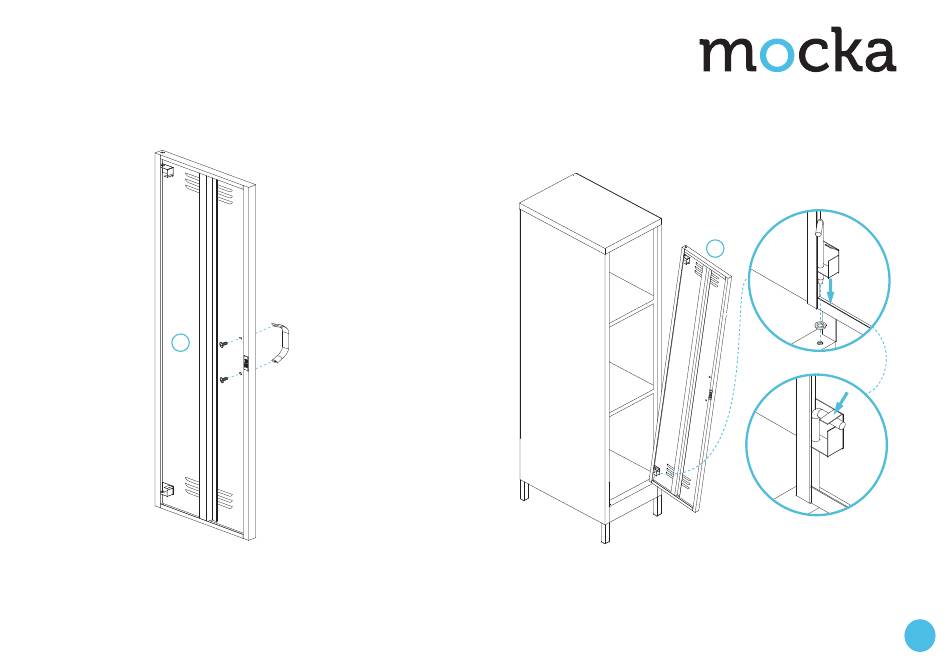

Attach handle (D) to door panel [9] with 2x bolts (E) and tighten with a
screwdriver.
mocka.co.nz | mocka.com.au
mocka.co.nz | mocka.com.au
E
D
E
8
To attach the bottom of the door, insert 1x ring (B) and 1x rod (C) through
the door panel [9] as shown. Twist the rod into place and secure by
bending the clasp down.
C
9
B
C
5
5
