Hamptons

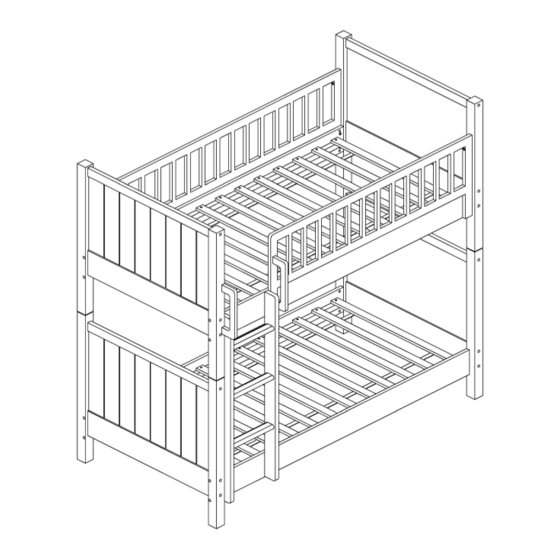

Kids 2 in 1 Bunk Bed-Single
Thank you for your purchase.
Please follow the instructions below for correct assembly
A
B
C
I
I
16x
46x
17x
16x
nut
bolt
bolt
wood
dowel
Hardware Supplied
WARNING:
Falls from elevated beds can be fatal and deaths have occurred where children children. have
1 The fallen risk from of injury elevated or death beds. from This a is fall relevant from an for all
elevated ages. bed The risk compared is greater to a for non-elevated younger bed is:
10x greater for 7-8 year olds
7x greater for 9-10 year olds
3x greater for 11-12 year olds
IMPORTANT STATEMENT
1.Children should be should are be discouraged from playing on to the bunk bed.
2.The bunk bed should be checked periodically to ensure that the guardrail, access
device and other components are maintened in the correct position and state
of repair and that all connectors are tight.
.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D
E
F
G
i
l
r
52x
1x
4x
screw
allen
round
key
stick
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
WARNING:
TOP BUNKS AND ELEVATED BEDS ARE DANGEROUS AND
ARE NOT RECOMMENDED FOR CHILDREN UNDER THE AGE OF 9.
4x
wood
cork
