Head Temperature Bar Graph; Display Watts Or W/Cm2 - Dynatronics Dynatron 850 Plus Service Manual

When the temperature is again satisfactory, press the START key to resume the treatment;
output power resumes, the displays return to its normal state, and the timer resumes. While the
soundhead is still too hot, the device will not allow you to resume the treatment.
To prevent overheating of the soundhead, maintain good coupling throughout the treatment.
For direct coupling, you may need to apply more conductive gel or lotion during the
treatment to achieve better coupling.
You can reduce the power during the treatment if you are treating an area where it is difficult
to obtain good coupling.

Head Temperature Bar Graph

During an ultrasound treatment, you can view a graph showing the relative soundhead
temperature by pressing SOUND and the HI/LO keys simultaneously. As shown in the
illustration below, the Time display shows the letter "H" followed by a bar graph with from 1
to 6 segments lighted. The more segments displayed, the hotter the soundhead. This display
does not provide an actual temperature reading, but does give a visual indication when the
soundhead is becoming too hot. To return to the treatment time display, press the TIME key.

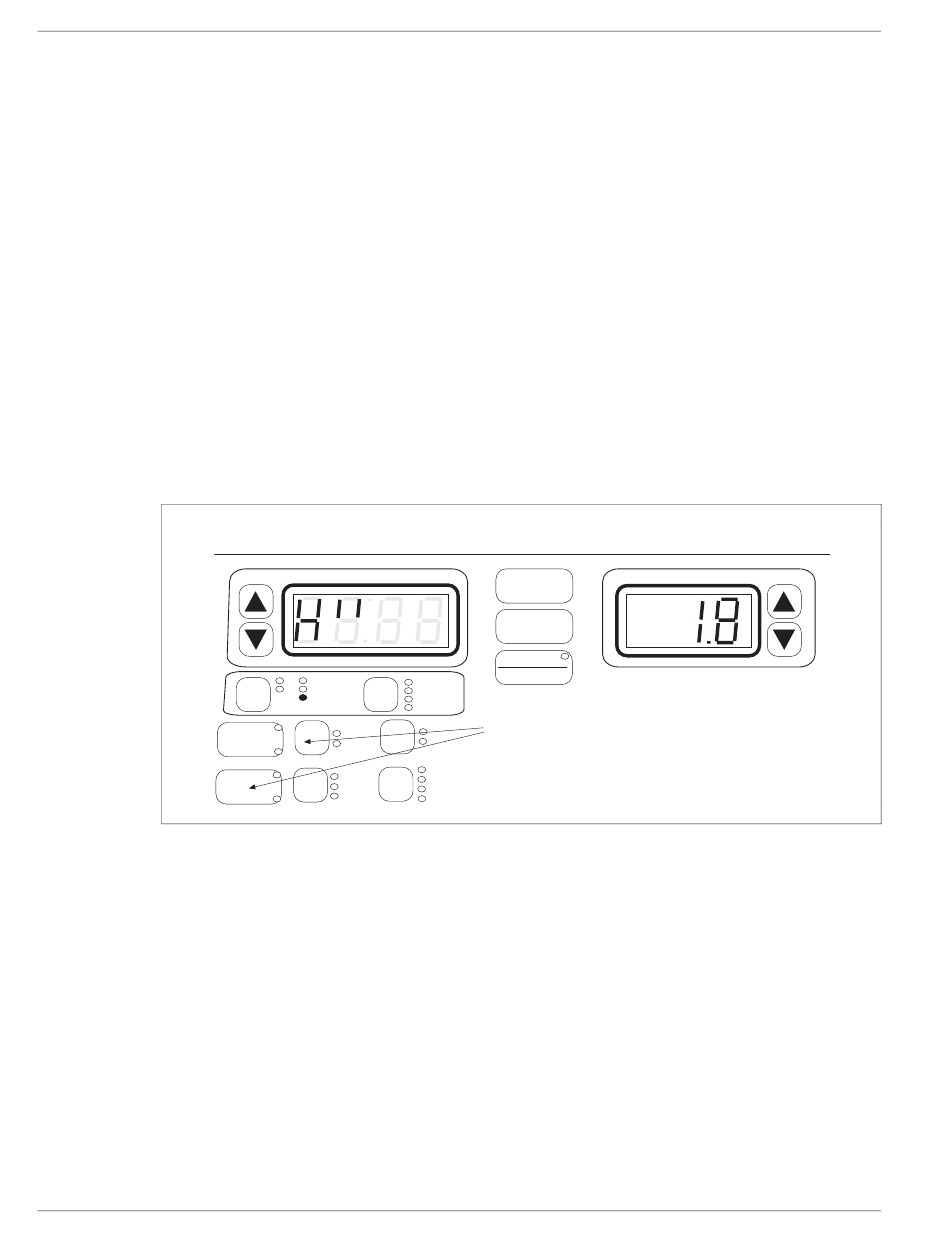

Temperature Bar Graph. During an ultrasound treatment press SOUND and the HI-LO keys
simultaneously to view a bar graph representing the soundhead temperature..

Display Watts or W/cm2

Power for the Dynatron 850plus may be displayed as WATTS or W/cm
for power is W/cm
treatment.
•
ULTRASOUND - Treatment Instructions
Dynatron
Head Temperature Bar Graph
TIME
HV 1
1
MICRO
2
CH
SOUND
IFC
HIGH
LOW
PREMOD
1 MHz
SOUND
2 MHz
COMBO
3 MHz
2
, but you may select the display you prefer at any time before or during a
To change the power display, press the PAUSE/FUNCTION key and hold it down
for two seconds. To change back, again press and hold the PAUSE/FUNCTION key
for two seconds. The device will beep to indicate you have changed the display.
Note that if you are in a treatment when you press and hold the Pause key, the
treatment may be paused (the Pause LED is on) and you should press Pause briefly
again to turn off the Pause LED and resume the treatment.
850plus & 550plus
®
START
STOP
PAUSE
FUNCTION
TIME
FREQ
RATE
WIDTH
Press the SOUND and the HI/LO keys simultaneously
TARGET
during an ultrasound treatment to view a graph
SWEEP
showing relative head temperature. Press Time to
return to the treatment time display.
10%
20%
50%
CONT
54
POWER-INTENSITY
2
. The default setting
