Time and Power Displays

The "Time" display and the "Power-Intensity" display can show the settings for only one
channel at a time. The Time and Power-Intensity settings displayed are for the channel with
the GREEN light only. Any other channel in use at that time will have a YELLOW light to
show it is active but its parameters are not currently displayed.
To view the settings for another
channel or output, press the channel
toggle key one or more times until
the light for the desired channel
becomes GREEN. The GREEN
light appears next to a different
channel or output each time you
press the toggle key, and the Time
and Power-Intensity displays change
to show the parameters currently in
effect for that channel.
The green and yellow channel lights
each will also appear solid (non-
flashing) or flashing. A solid light
means current is being delivered to
the channel at this time (for example, during the ON cycle of the Russian stimulation
treatment). A flashing light means current is not being delivered to the channel at this time
(for example, during the OFF cycle of the Russian stimulation treatment).
GREEN Flashing
YELLOW Flashing

Ultrasound Heads (Dynatron 850plus only)

The Dynatron 850plus features the new Dynatronics SmartHead™ ultrasound applicator
soundhead that has all calibration information self-contained. SmartHeads may be used
interchangeably with any 50 Series Plus model or the Dynatron 125 model with no need for
entering calibration numbers into the device.
Dynatron
CHANNEL / OUTPUT INDICATOR LIGHTS
GREEN Solid • You CAN see this channel's parameters displayed on Time
and Power-Intensity displays.
• The channel IS delivering current.
• You CAN see this channel's parameters displayed on Time
and Power-Intensity displays.
• The channel IS NOT delivering current.
YELLOW Solid • You CANNOT see this channel's parameters displayed on
Time and Power-Intensity displays.
• The channel IS delivering current.
• You CANNOT see this channel's parameters displayed on
Time and Power-Intensity displays.
• The channel IS NOT delivering current.
850plus & 550plus
®

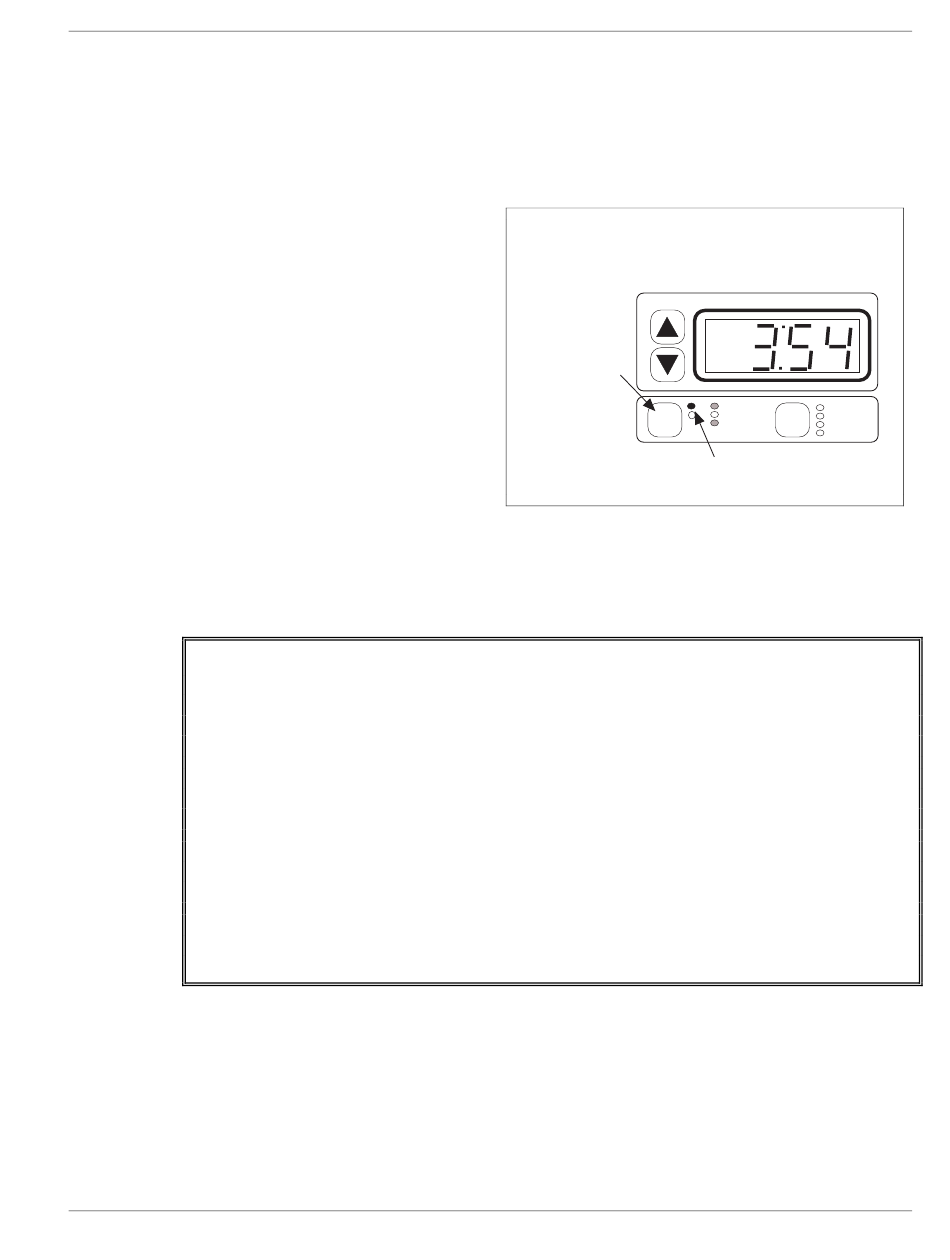

When a channel is selected its parameters are displayed in
the Time and Power-Intensity displays, and treatment
parameters for that treatment may be modified.
Press the
channel toggle
key to select any
channel that is
currently in use.
The LED for the channel selected becomes GREEN and the
LEDs for all other active channels become YELLOW.
Channel Toggle Key
15
TIME
HV 1
1
TIME
MICRO
2 FREQ
CH
SOUND
RATE
WIDTH
Installation & Features
