Dynatronics Dynatron 850 Plus Service Manual page 16

6 4 7
14
CH
13
IFC
12
PREMOD
CH 1

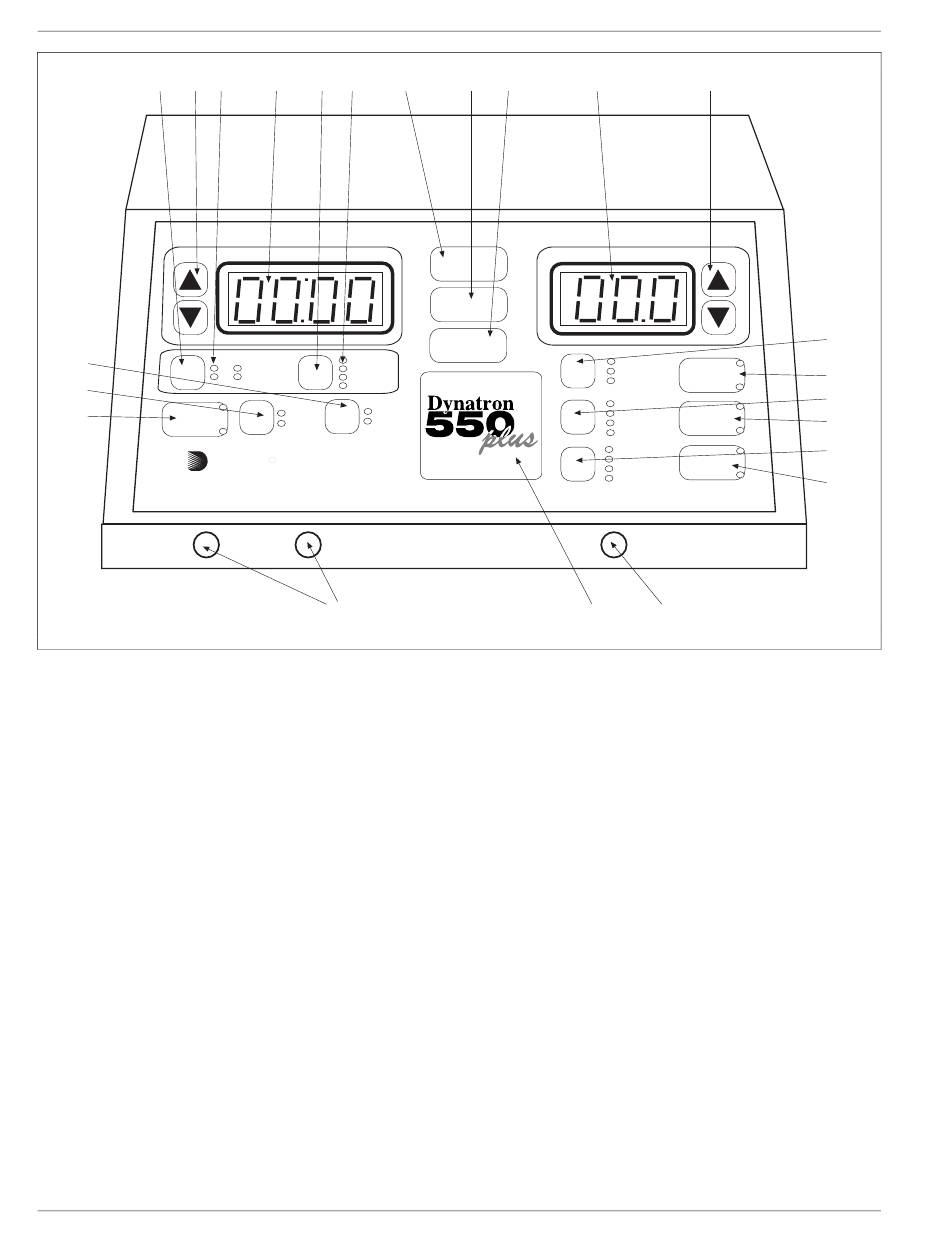

Dynatron 550plus Control Panel
key while you press the Stop key, or by reducing that channel's treatment time to zero.
3. PAUSE/FUNCTION: This key is used in combination with other key presses for
accessing unique features including: select polarity (high volt and microcurrent), audio
volume control (microcurrent), and to stop one treatment only. Specific instructions for
using this key are provided later in this manual.
For Dynatron 850plus only: This key is also used to pause an ultrasound treatment. First
press the channel toggle (CH) to select SOUND, then press PAUSE/FUNCTION; the
ultrasound output is stopped, the treatment time is paused, and the light on the Pause key
is on. When this key is pressed again, the ultrasound treatment resumes and the light on
the Pause key is off. The PAUSE option is not available with the Dynatron 550plus since
that model does not offer ultrasound. NOTE: During a Combo treatment, only the
ultrasound output and the treatment timer are stopped when you press Pause; the stim
output continues.
4. TIME ARROW KEYS: These UP/DOWN arrow keys are used to increase/decrease the
treatment time or other parameter that is displayed in the Time display.
5. TIME DISPLAY: This display is used to show the treatment time for one treatment at a
time; the display shows treatment time for the selected channel (the selected channel is
indicated by the green LED—all other channels in use at the
Installation & Features
Dynatron
5 8 9
TIME
TIME
1 HV FREQ
MICRO RATE
2
WIDTH
TARGET
HIGH
SWEEP
LOW
Dynatronics
CH 2
25
850plus & 550plus
®
1 2 3
POWER-INTENSITY
START
STOP
FUNCTION
TARGET
8
10 11
NORMAL
BIPHASIC
CO-CONT
RECIP RUSSIAN
10/10
+
10/30
HI VOLT
10/50
-
CONT
.5 RAMP
+
1.0 RAMP
MICRO
1.5 RAMP
-
2.0 RAMP
HV
15 26
21
19
22
20
23
24
