Minolta DIMAGE SCAN MULTI II F-3100 Instruction Manual page 99

NAVIGATION
Though the Navigation function automates a series of scanning operations, the operations which
require you to select or input something cannot be automated.

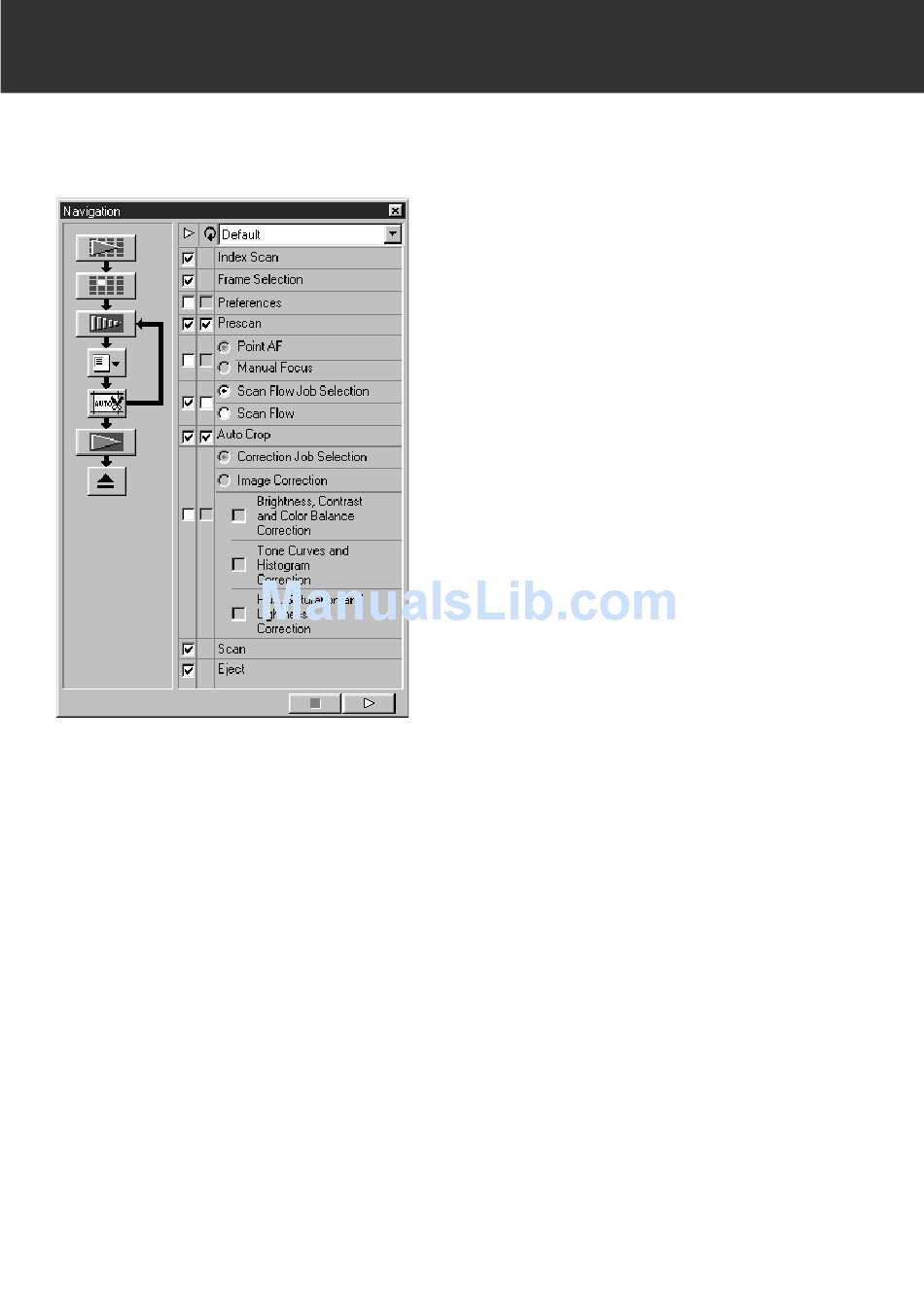

For example, when performing the Navigation set
described on the left, the operation stops
temporarily after performing the index scan of all
frames and the frames are displayed in a
thumbnail representation. After performing "Frame
Selection" by clicking on the image to be
prescanned and pressing the Enter key, or by
double-clicking on the image to be prescanned, the
operation resumes.
And, when "Scan Flow Job Selection" is swlected,
the Job Selection window appears and the
operation stops temporarily. After selecting the job
file to be applied, the operation re-starts.
When using the utility software, rather than the
Twain Driver/Plug-in Software, the file save dialog
box is displayed and the operation stops
temporarily when "Scan" is readied. After
specifying or inputting the file destination, file name
and file type and clicking on Save in the file save
dialog box, the operation resumes and the final
scan is performed.
– 99 –
