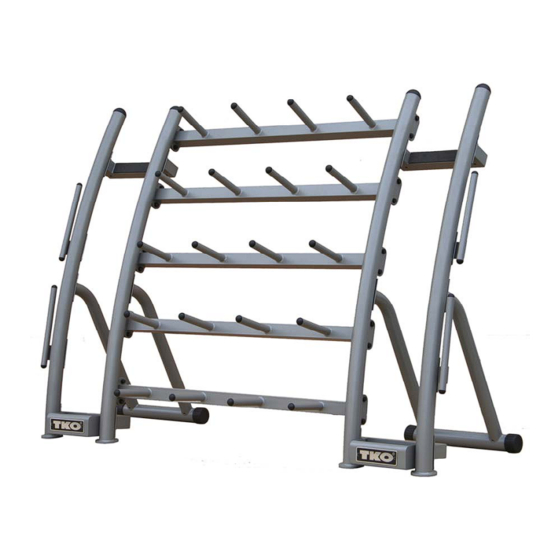

- Page 1 CARDIO PUMP RACK 20 SET Model 834CPR Owner’s Manual V2.0—06.2012 www.tko.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 Hours: Monday-Friday 8:30am to 4:30pm CT © Copyright 2011, TKO Sports Group USA Limited. All rights reserved. TKO Sports Group USA Limited. 4660 Pine Timbers, Suite 198, Houston, TX 77041 Phone + 713-895-9270 Fax + 713-934-8495 www.tko.com...
- Page 4 Product Diagram...
-
Page 5: Exploded Drawing
Exploded Diagram EXPLODED DRAWING... -
Page 6: Parts List
Parts List PARTS LIST Part number Description Q’ty Upright frame – Outer frame Spring clip storage peg End cap (28 mm dia.) Rear support frame Allen bolt – M10 x 20 mm L. Washer for M10 bolts Bar holder EVA padding Logo plate Rivet –... -
Page 7: Assembly Step
Assembly ASSEMBLY STEP Step 1 Connect the Bar support cross frame (19) to the Inner upright frame (11) and the outer upright frame (1), Using 4 Allen Bolts (5) and 4 washers (6). Connect the Bar holder (7) to the bottom of the Inner upright frame (11) and the Outer upright frame (1), Using 4 Allen Bolts (5) and 4 washers (6). - Page 8 Assembly ASSEMBLY STEP Step 2 Connect the Rear support frame (4) to the upright frame assembly, Using 4 Allen Bolts (5) and 4 Washers (6). Tighten all nuts and bolts with Allen wrench (included)
- Page 9 Assembly ASSEMBLY STEP Step 3 Connect all the Cardio plate storage cross frame (12) to the upright frame using 20 Carriage Bolts (14), 20 Washers (6) and 20 Nylon Nut (18). Tighten all the nuts and bolts with wrench.
