- Page 1 MAT/ACCESSORY RACK Model 850MR Owner’s Manual V2.0—06.2012 www.tko.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 Hours: Monday-Friday 8:30am to 4:30pm CT © Copyright 2011, TKO Sports Group USA Limited. All rights reserved. TKO Sports Group USA Limited. 4660 Pine Timbers, Suite 198, Houston, TX 77041 Phone + 713-895-9270 Fax + 713-934-8495 www.tko.com...
-

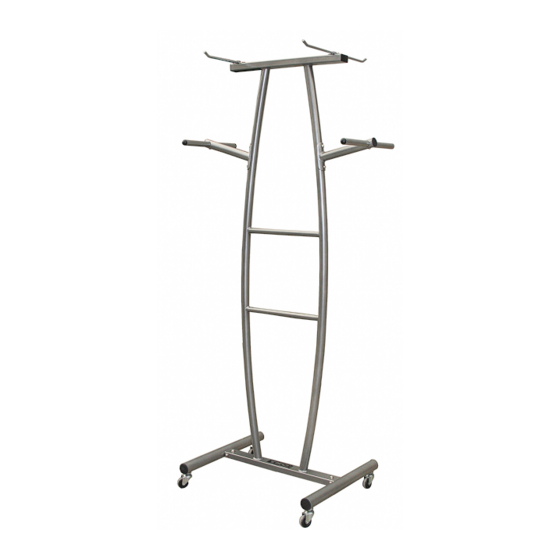

Page 4: Product Diagram
Model 850M Product Diagram Mat/Accessory Rac... -
Page 5: Exploded Diagram
Exploded Diagram EXPLODED DRAWING... -
Page 6: Parts List
Parts List PARTS LIST Part No. Description Q’ty Base Frame Main Frame Support Frame Accessory Storage Bar End Cap ∮38 End Cap F30x60 Mat Storage Rod End Cap ∮25 End Cap ∮50 Flat Washer for M6 bolt Screw M6x15mm Flat Washer for M8 bolt Transport Wheel Rivet ∮4mm x 12 mm Allen Bolt M8 x 20mm... -
Page 7: Assembly Steps
Assembly ASSEMBLY STEPS Step 1. Please attach the Mat Storage Rods (7) to the Main Frame (2), using 8 Screws (11) and 8 Flat Washers (10). Please adjust these 2 Rods are parallel and then tighten all the screws. Step 2. Please attach the Transport Wheels (13) to the Base Frames (1) and make sure they are tightened. - Page 8 Assembly ASSEMBLY STEPS Step 3. Please attach the Base Frames (1) to the Main Frame (2), using 6 Allen Bolts (15) and 6 Flat Washers (12). Please tighten all the bolts. Step 4. Please attach the Support Frames (3) to the Main Frame (2), using 4 Allen Bolts (15) and 4 Flat Washers (12).
- Page 9 Assembly Step 5. Please attach the Accessory Storage Bars (4) to the Support Frames (3), using 2 Screws (11) and 2 Flat Washers (10). Please tighten all the screws.
