HS4100-EVK
Evaluation Kit for the HS4101 Humidity and Temperature Sensor
The HS4100-EVK Evaluation Kit is used to assess
the HS4101 High-Performance Analog Relative
Humidity and Temperature Sensor. The hardware
allows users to communicate with the evaluation
board through a standard USB interface, and to view
digitized measurements from the sensor using the
Demo Software. The analog output voltage of the
sensor can also be measured with a multimeter using
easily accessible testpoints on the evaluation board.
The evaluation board can be powered directly from
the USB port of the user's computer.
Board Contents
■
HS4100-EVK evaluation board
■
Three HS4101 sensor modules
■
Sensor module extension cable
■
USB cable
R36UH0008EU0100 Rev.1.00
Jun 16, 2022
Features
■
■
■

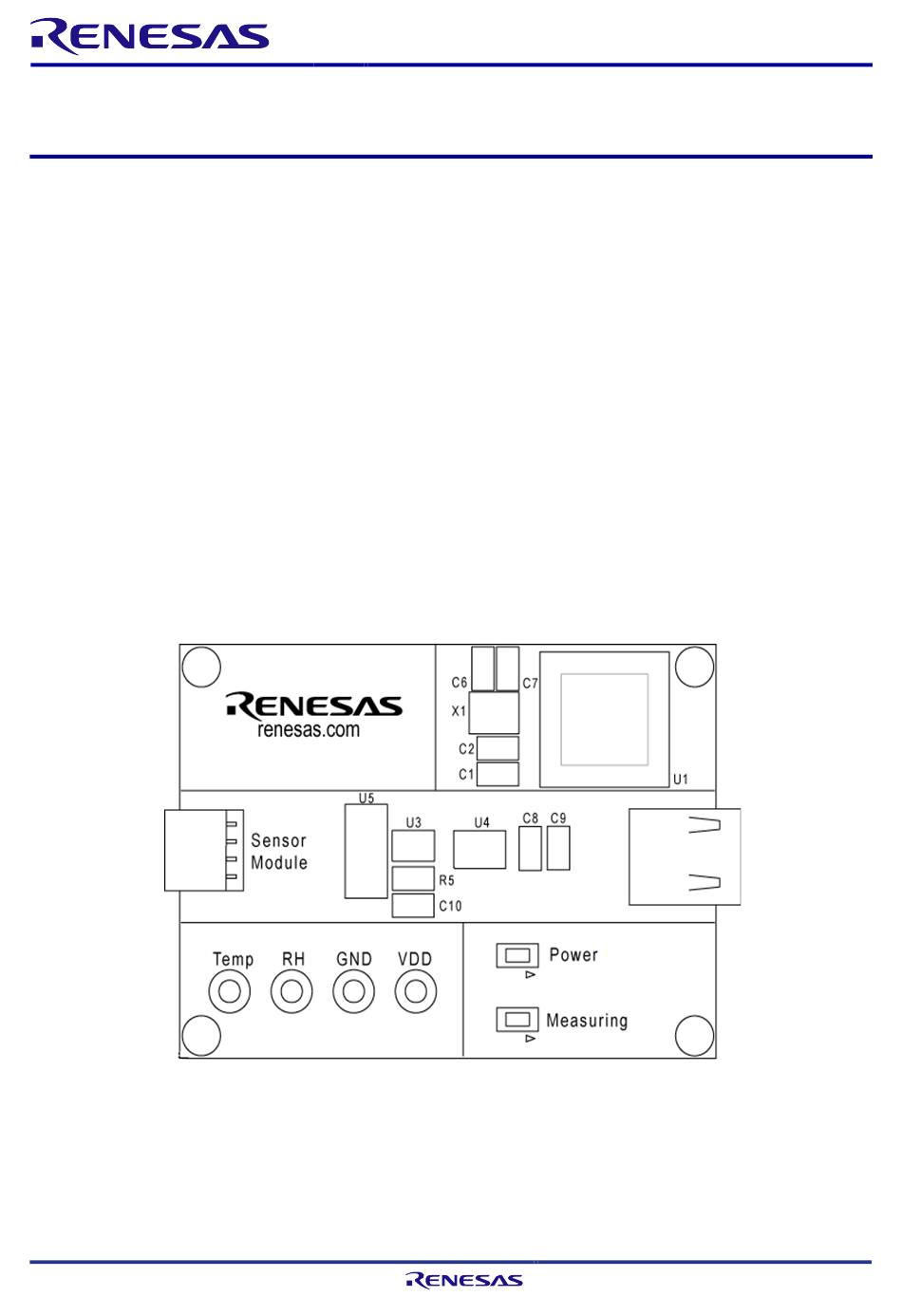

Figure 1. HS4100-EVK Evaluation Kit
Evaluation Kit Manual
Relative Humidity Sensor Module with HS4101
sensor:
●
RH accuracy: ±1.5%RH
Demo Software:
●
Data plotter
Sensor module extension cable allows extending
the HS4101 Sensor Module to different
measurement areas
© 2022 Renesas Electronics
Page 1
Advertisement
Table of Contents
Related Manuals for Renesas HS4100-EVK
Summary of Contents for Renesas HS4100-EVK
- Page 1 Evaluation Kit Manual HS4100-EVK Evaluation Kit for the HS4101 Humidity and Temperature Sensor Features The HS4100-EVK Evaluation Kit is used to assess the HS4101 High-Performance Analog Relative ■ Relative Humidity Sensor Module with HS4101 Humidity and Temperature Sensor. The hardware...
- Page 2 Ordering Information ............................ 6 Revision History ............................6 Figures Figure 1. HS4100-EVK Evaluation Kit ........................1 Figure 2. Initial Display after Installation of the Demo Software ................3 Figure 3. Evaluation Kit Connections........................4 Figure 4. Start Measurements ..........................4 Figure 5.
- Page 3 A Windows -based computer is required for interfacing with the evaluation kit. The user must have administrative rights on the computer to install the Renesas Demo Software for the kit. The computer must meet the following minimum systems requirements: ■...
- Page 4 Kit Hardware Connections Complete the following procedure to set up the kit as shown in Figure 3: 1. Install the software from the USB flash drive or download from renesas.com as described in Software Installation and Setup. 2. Connect one of the HS4101 sensor modules facing up, with or without the extension cable attached, into the sensor module connector 3.
- Page 5 HS4100-EVK Evaluation Kit Manual 2. Using the EVK Measurement Settings To change the interval and number of measurements to be made, select Measurement Settings from the Tools menu, enter the desired values, and then click OK, as shown in Figure 5. For the range of valid settings for these two entry fields, see Valid Settings Ranges.
- Page 6 HS4100-EVK Evaluation Kit Manual 3. Ordering Information Part Number Description HS4100-EVK Evaluation Kit, including HS4100-EVK evaluation board, HS4101 sensor HS4100-EVK modules, sensor module extension cable, USB key with Demo Software, USB cable 4. Revision History Revision Date Description 1.00 June 16, 2022 Initial release.
- Page 7 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
