HS4000-EVK
Evaluation Kit for the HS4001 Humidity and Temperature Sensor
The HS4000-EVK Evaluation Kit is used to assess
the HS4001 High-Performance Relative Humidity
and Temperature Sensor. The hardware allows users
to perform data logging experiments, and it can
communicate through a standard USB interface with
the user's computer using the Demo Software. This
software can be used to view measurements in real-
time, adjust the resolution of the sensor, configure
measurement parameters, and download previously
logged measurements.
The evaluation board can be powered directly from
the USB port of the user's computer or from a 1632
coin cell battery to enable fully autonomous
(untethered) data logging.
Board Contents
■
HS4000-EVK evaluation board
■
Three HS4001 sensor modules
■
Sensor module extension cable
■
USB cable
R36UH0004EU0100 Rev.1.00
May 10, 2022
Features
■
■
■

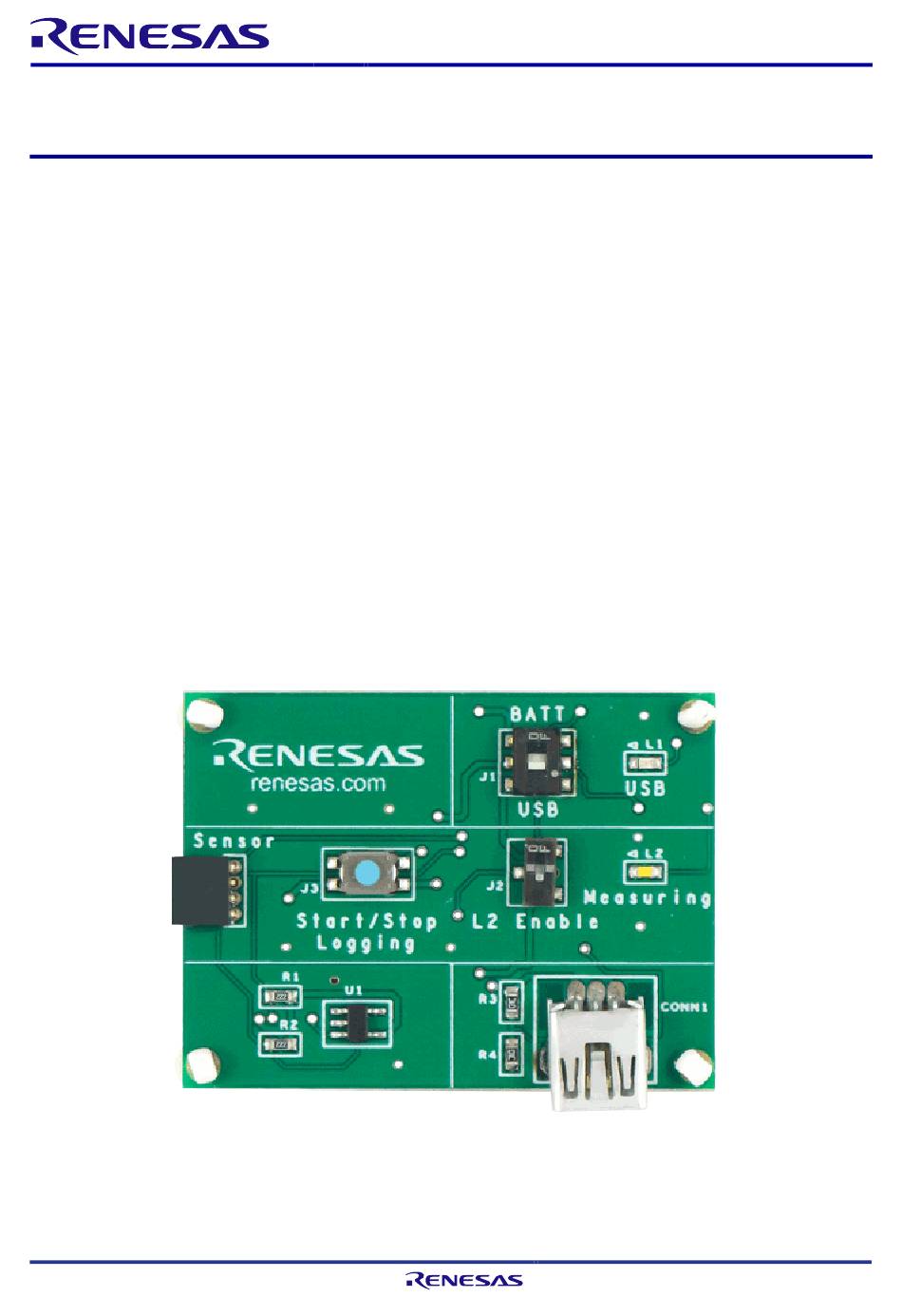

Figure 1. HS4000-EVK Evaluation Kit

Evaluation Kit Manual
Relative Humidity Sensor Module with HS4001
sensor:
●
RH accuracy: ±1.5%RH
Demo Software:
●
Data plotter
●
Measurement resolution configuration
●
Data export
Sensor module extension cable allows extending
the HS4001 Sensor Module to different
measurement areas
© 2022 Renesas Electronics
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Renesas HS4000-EVK

Summary of Contents for Renesas HS4000-EVK

  • Page 1: Figure 1. Hs4000-Evk Evaluation Kit

    Evaluation Kit Manual HS4000-EVK Evaluation Kit for the HS4001 Humidity and Temperature Sensor Features The HS4000-EVK Evaluation Kit is used to assess the HS4001 High-Performance Relative Humidity ■ Relative Humidity Sensor Module with HS4001 and Temperature Sensor. The hardware allows users...

  • Page 2: Table Of Contents

    Ordering Information ............................ 7 Revision History ............................7 Figures Figure 1. HS4000-EVK Evaluation Kit ........................1 Figure 2. Initial Display after Installation of the Demo Software ................3 Figure 3. Evaluation Kit Connections........................4 Figure 4. Start Measurements ..........................4 Figure 5.

  • Page 3: Functional Description

    -based computer is required for interfacing with the kit and configuring the device. The user must have administrative rights on the computer to install the Renesas Demo Software for the kit. The computer must meet the following minimum systems requirements: ■...

  • Page 4: Kit Hardware Connections

    Kit Hardware Connections Complete the following procedure to set up the kit as shown in Figure 3: 1. Install the software from the USB flash drive or download from renesas.com as described in Software Installation and Setup. 2. Connect one of the HS4001 sensor modules facing up, with or without the extension cable attached, into the sensor module connector 3.

  • Page 5: Using The Evk

    HS4000-EVK Evaluation Kit Manual 2. Using the EVK Measurement Settings To change the interval and number of measurements to be made, select Measurement Settings from the Tools menu, enter the desired values, and then click OK, as shown in Figure 5. For the range of valid settings for these two entry fields, see Valid Settings Ranges.

  • Page 6: Exporting Data

    HS4000-EVK Evaluation Kit Manual Exporting Data The data displayed in the plotter area can be exported in two different formats. ® ■ To export the measured data points in a Microsoft Excel compatible comma-separated text file, select Save Data from the File menu. Create a filename for the data, and select the location where the file will be saved.

  • Page 7: Data Logging Settings

    ■ Measurement resolution: 8, 10, 12, 14 bits 3. Ordering Information Part Number Description HS4000-EVK Evaluation Kit, including HS4000-EVK evaluation board, HS4001 sensor HS4000-EVK modules, sensor module extension cable, USB key with Demo Software, USB cable 4. Revision History Revision...
  • Page 8 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
