OB1203SD-BT-EVK
Integrated Context Engine for Heart Rate and Blood Oxygen Saturation measurement with BLE
The Integrated Context Engine (ICE) for Biosensing
(see Figure 2) includes:
Renesas OB1203 reflective photoplethysmography
(PPG), proximity (PS) and light / color (LS/CS)
sensor
Telink's TLSR8258F512 micro controller with
Bluetooth Low Energy (BLE) radio
LiPo's LP201030 rechargeable Li ion battery, 3.7
V, 40mAh, 10
30
×
×
[1] Light and color sensing function not used in this application.
The ICE hardware performs reflective, non-invasive
measurements (e.g., at the fingertip), transmits the data
via BLE to a smartphone or tablet (see Figure 1), where
the Heart Rate (HR) and blood oxygen saturation
(SpO
) are determined by an Android app. During this
2
process the proximity sensor function keeps the
measurement running as long as there is a finger
present.
TLSR8258
Controller

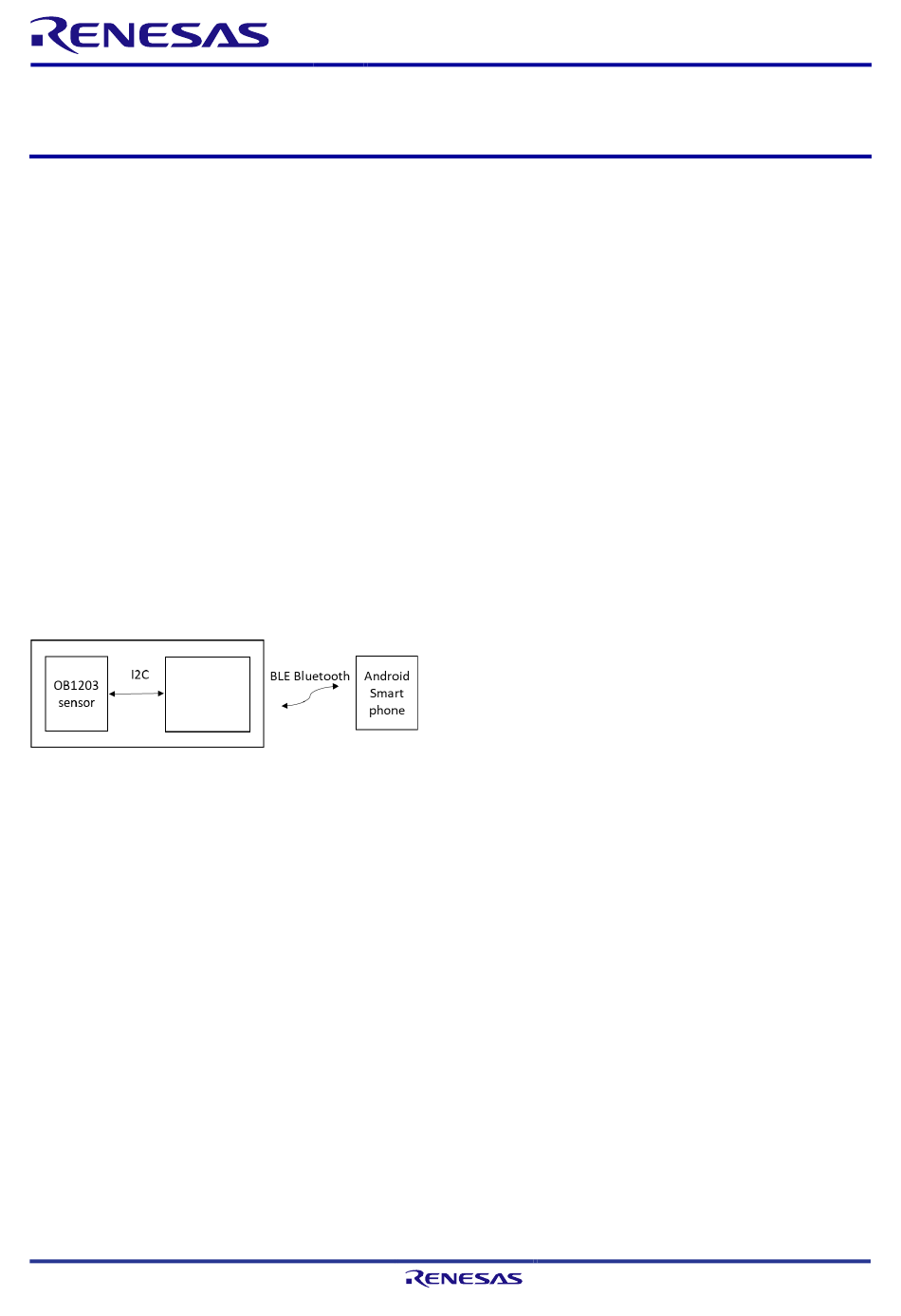

Figure 1. Block Diagram of ICE

OB1203 Sensor Features
Highly reliable and industry-proven OSIP package
with integrated cover glass for hypoallergenic
products
Integrated and factory trimmed LED source, driver,
and photodetector
PPG (Heart Rate and Blood Oxygen Concentration):
Aesthetic industrial design options with unique
far-red LED allowing SpO
behind visibly dark, IR-transmissive ink.
16 to 18 bits output resolution
High speed sampling up to 3200 samples per
second for highest resolution and improved
SNR
On-chip averaging and FIFO data storage
enable convenient asynchronous access to data
X0008647 Rev.1.2
Feb.8.21
3
2 mm
.
measurements
2
Proximity Sensor:
Up to 16 bits resolution
Ambient light suppression
[1]
Analog and digital crosstalk cancelation
Wide operation temperature range: -40°C to +85°C
Wide supply voltage range:
1.7V to 3.6V for digital / analog
3.3 V to 5.0 V for LEDs
2
I
C interface capable of 100kHz or 400kHz
communication
Programmable level-based interrupt functions
Industry's smallest package: 4.2 × 2 × 1.2 mm
14-pin module
Radio Mode Features
Telink TLSR8258F512
BT 4.2 BLE 2.4GHz radio
32-bit MCU at 48MHz, 512 kB flash, 32kB SRAM
Wide supply voltage range: 1.9V to 3.6V
Compact size: 32-pin, 5.0 × 5.0 × 0.75 mm package
ICE Characteristics
PCB (see
Operation temperature range: -40°C to +85°C
PCB supply voltage range: 3.3 V to 6.5V
PCB: 40mm × 11mm (21mm with program pads) ×
5mm with USB charge connector (3.1mm without)
Program pad PCB section removable
Battery life:
150 × 30s measurements
Typical PCB quiescence current: 0.5 µA at 4V
Battery capacity: 40mAh if charged up to 4.2V
Battery operation: 3.3V to 4.2V
Rechargeable via USB Micro cable
> 70% shelf: 1 year stored (-20°C to 30°C)
Battery operating temperature range -20C° to + 60°C
Applications
Mobile devices: Wearables, Fitness, and Accessories
Industrial: Worker Safety, Driver Assist
Evaluation Kit Manual
Figure 2
):
3
Page 1
Copyright © 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OB1203SD-BT-EVK and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas OB1203SD-BT-EVK

  • Page 1: Figure 1. Block Diagram Of Ice

    ■ Proximity Sensor: (see Figure 2) includes: ● Up to 16 bits resolution ● ■ Renesas OB1203 reflective photoplethysmography Ambient light suppression (PPG), proximity (PS) and light / color (LS/CS) ● Analog and digital crosstalk cancelation sensor ■ Wide operation temperature range: -40°C to +85°C ■...
  • Page 2: Table Of Contents

    OB1203SD-BT-EVK Evaluation Kit Manual Contents ICE Hardware..............................3 Sensor Function............................. 4 Getting Started ............................... 5 Resources ............................... 7 PCB Schematics ............................ 7 PCB Layout ............................9 PCB Components ..........................10 Programming Pins ..........................10 Programming Tools ..........................10 Bill of Materials ............................ 11 OB1203 Run Mode ..........................
  • Page 3: Ice Hardware

    OB1203SD-BT-EVK Evaluation Kit Manual 1. ICE Hardware Figure 2. ICE Hardware X0008647 Rev.1.2 Page 3 Feb.8.21...
  • Page 4: Sensor Function

    OB1203SD-BT-EVK Evaluation Kit Manual 2. Sensor Function Figure 3 shows the principal of a reflective measurement. In this case the sensor is located under a cover glass that uses black and IR transmissive ink to visibly hide the PCB / sensor module. Light from the sensor module’s LED is reflected from the finger tissue and detected by the photo diode.
  • Page 5: Getting Started

    OB1203SD-BT-EVK Evaluation Kit Manual 3. Getting Started 1. Install the Android app: a. Download the app from the USB stick or GitHub https://github.com/hyperdga/Android_OB1203_serial_BLE b. Click on the app to install. c. Go to Settings -> Apps -> IDT HR Sensor -> Permissions -> activate ‘your location’.
  • Page 6: Figure 7. Finger Rest Examples

    OB1203SD-BT-EVK Evaluation Kit Manual Figure 7. Finger Rest Examples X0008647 Rev.1.2 Page 6 Feb.8.21...
  • Page 7: Resources

    OB1203SD-BT-EVK Evaluation Kit Manual 4. Resources PCB Schematics ■ The PCB contains the OB1203 and Telink devices as well as the following components: ● Voltage stabilization and bypass capacitors for the OB1203 ● Voltage stabilization and bypass capacitors, antenna, and quartz for the Telink module ●...
  • Page 8: Figure 10. Mcu Schematics

    OB1203SD-BT-EVK Evaluation Kit Manual Figure 10. MCU Schematics (Note: The battery voltage sense feature is supported by HW but not programmed yet in FW.) Figure 11. Power Schematics (Note: When the switch U2 is pressed (upper left), the U12 becomes conductive and the MCU wakes up. The MCU keeps the wake line high for about 40 seconds leaving U12 conductive.
  • Page 9: Pcb Layout

    OB1203SD-BT-EVK Evaluation Kit Manual Figure 12. Connector Schematics PCB Layout Figure 13. PCB Bottom with Telink Chip Left of the Middle Figure 14. PCB Top with OB1203 at the Right X0008647 Rev.1.2 Page 9 Feb.8.21...
  • Page 10: Pcb Components

    OB1203SD-BT-EVK Evaluation Kit Manual PCB Components Figure 15. PCB Functions Programming Pins Figure 16. Functions of Programming Pins (Note: Remove re-chargeable battery for programming) Programming Tools Hardware: ■ Telink Programmer, available from Telink Software: ■ Telink-Semi IDE for C coding and compiling ■...
  • Page 11: Bill Of Materials

    OB1203SD-BT-EVK Evaluation Kit Manual e. Click Activate. Click Download. g. Click Start mcu. Available with user manual from https://www.telink-semi.com/. Bill of Materials RefDes Value Name Manufacturer 2.4GHz ANT3216A063R2400A Yageo 18pF CAP 0402 tight 1.2pF CAP 0402 tight 220pF CAP 0402 tight 1.8pF...
  • Page 12: Algorithm

    OB1203SD-BT-EVK Evaluation Kit Manual HR Algorithm ■ Partial autocorrelation coarse / fine search method Algorithm ■ Collect about 2.5s worth of data ■ Measure and remove DC ■ Remove slope ■ Measure RMS ■ R = (Red_rms/Red_dc) / (IR_rms/IR_dc) ■...
  • Page 13: Ordering Information

    OB1203SD-BT-EVK Evaluation Kit Manual 5. Ordering Information Orderable Part Number Description OB1203SD-BT-EVK OB1203SD-BT Evaluation Board 6. Revision History Revision Date Description  Changed to PCB version R6. Feb.8.21  Updated the document to the latest template.  Reformatted headers and footers within document.
