Board Connections
Module Connections
The phyBOARD-Mira comes with the following add-on adapters and cables preassembled:
•

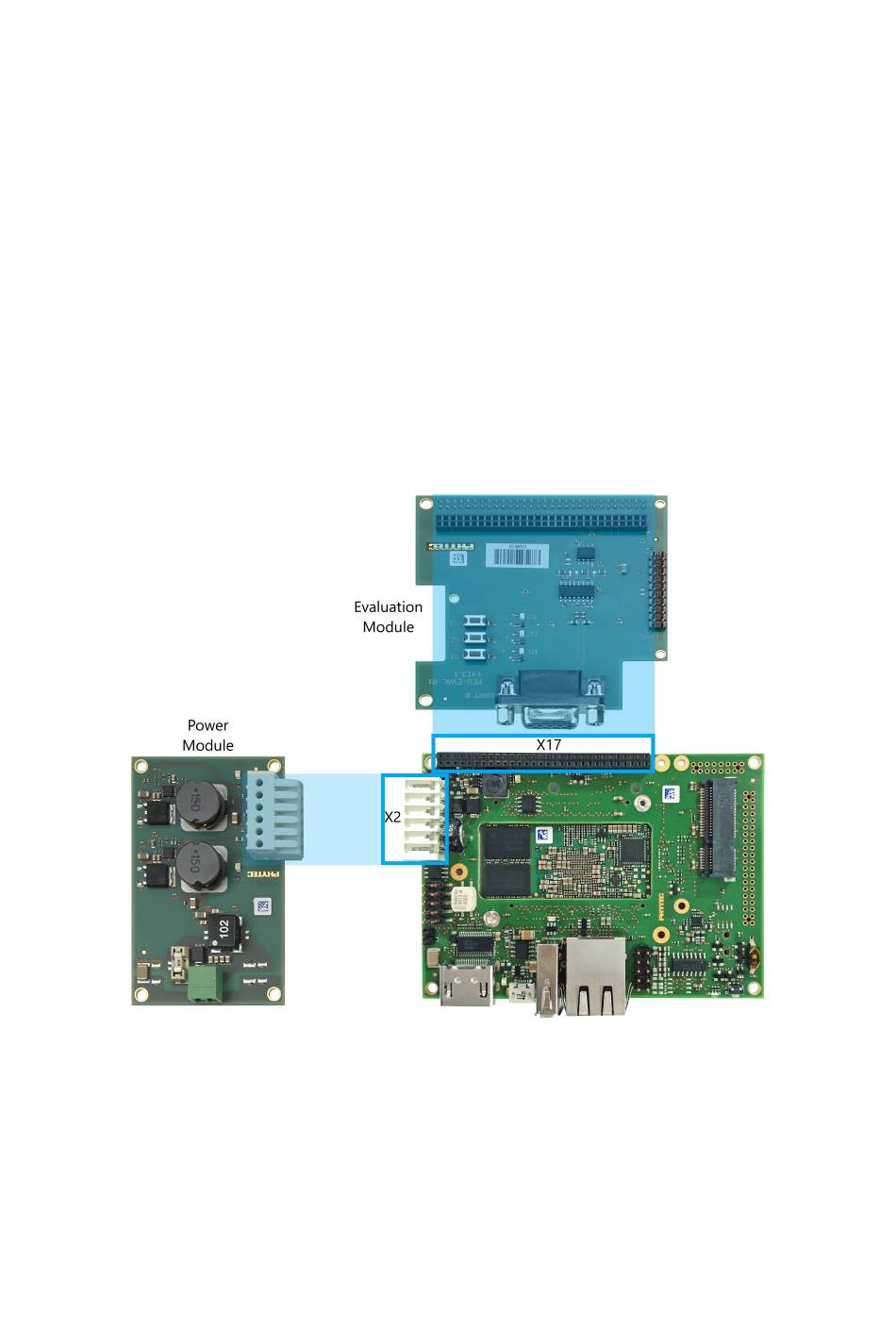

Evaluation Module (PEB-EVAL-01) connected via the Expansion Connector (X17) on the phyBOARD-Mira
(phyBOARD-Mira (top view) with Evaluation and Power
•
Power Module (PEB-POW-01) connected via the Power Connector (X2) on the phyBOARD-Mira
Mira (top view) with Evaluation and Power
•
Voice Recognition Adapter (PEB-AV-07) connected via the A/V Connectors (X13 and X14) on the phyBOARD-
Mira
(phyBOARD-Mira (bottom view) with Voice Control
•
RS-232 cable connected to the CAN pin header (X3). When plugged in, the red stripe on the adapter cable
should be oriented toward the HDMI (X28) interface. (NOT SHOWN)
•
Serial null cable (RS-232) connected to the UART3 pin header (X23). When plugged in, the red stripe on the
adapter cable should be oriented toward the HDMI (X28) interface. (NOT SHOWN)
3 phyBOARD-Mira (top view) with Evaluation and Power Modules
L-1014e.A4 phyBOARD-Mira Voice Control Kit with Beamforming Quickstart Guide
Modules)
Modules)
Module)
(phyBOARD-
