Phytec phyCORE-i.MX 8M Plus Quick Start Manual

®
phyCORE -i.MX 8M Plus
phyBOARD ® -Pollux / SBC Kit
Get your phyCORE-i.MX 8M Plus powered up and connected in just a few simple steps.

1 | PREPARING THE HARDWARE

1. Have the included connection cables at hand: You need a USB-A to USB-B micro cable,
a standard Ethernet cable and the power adapter (+24 V / 1 A).
2. Connect the USB cable to your host PC and the Debug FTDI (X1).
3. Set the Boot Mode DIP Switch (S3) to SD Card (Figure 1).
4. Insert the USB drive into the host PC.
5. Power up the phyCORE-i.MX 8M Plus.
Connect the power adapter (+24 V DC) to the power supply connector (X23).
6. Turn your power supply on.
F igur e 1: Boot Mode DIP Switch (S3)
SD Card Setting

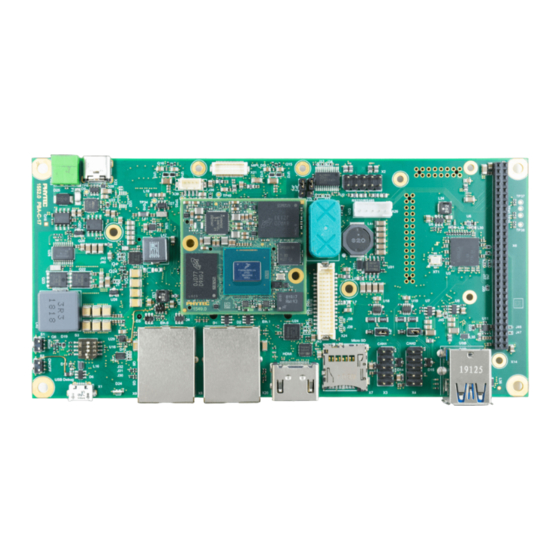

p hy B OA R D ® - Pollu x
with phyCORE ® -i.MX 8M Plus
F RO N T
Germany France
PHYTEC Messtechnik GmbH PHYTEC France SARL
D-55129 Mainz F-72140 Sillé le Guillaume
t +49 6131 9221-32 t +33 2 43 29 22 33
f +49 6131 9221-33 f +33 2 43 29 22 34
www.phytec.de www.phytec.fr
www.phytec.eu
USA India
PHYTEC America LLC PHYTEC Embedded Pvt. Ltd.
Bainbridge Island, WA 98110 Bangalore
t +1 206 780 9047 560102
f +1 206 780 9135 t +91 80 40867046
www.phytec.com www.phytec.in
China
PHYTEC Information Technology Co. Ltd.
Nanshan District
518052 Shenzhen
t +86 755 6180 2110
www.phytec.cn
Kit Contents
phyBOARD-Pollux with phyCORE-i.MX 8M Plus
PB-03123-001.Ax
Optional Accessories
• Display Kit 10" LVDS Direct Connection
KLCD-AC168.A0
• Display Kit 7" LVDS A/V Adapter Connection
KPEB-AV-10
Quick Quick
Start Start
Guide Guide
Power Adapter +24 V RS-232 Cable
Ethernet Cable USB flash drive
with Virtual Machine
• Sterling WIFI-Bluetooth Expansion Board (2.4GHz/5GHz)
PEB-WLBT-05
• Heatspreader XK048
• Heatsink XK049
B AC K
USB-A to USB-B
Micro Cable
