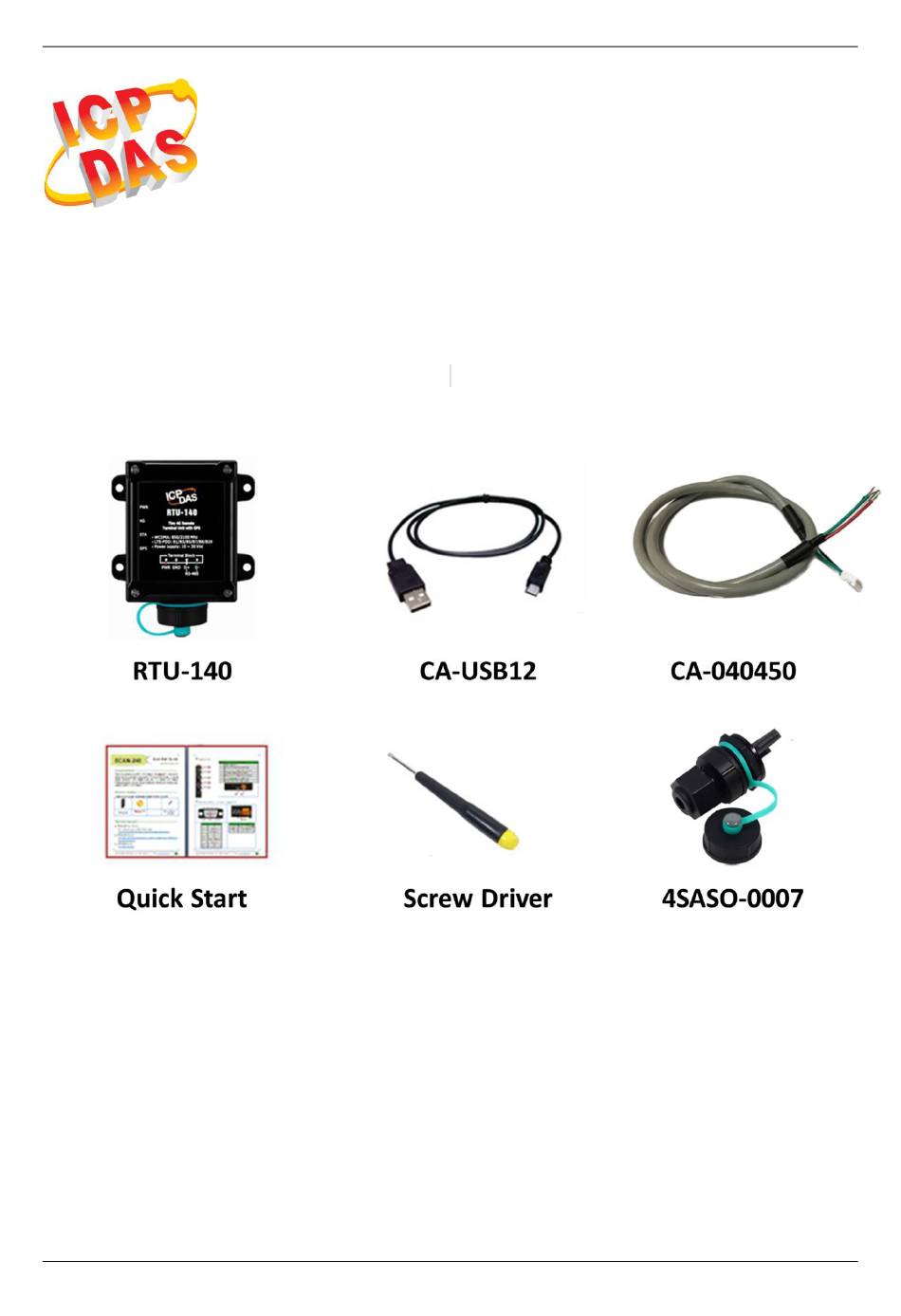

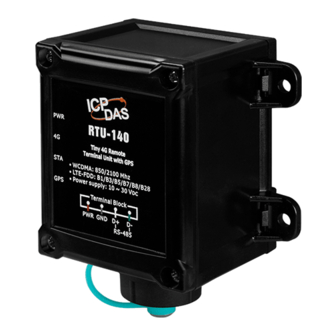

- Page 1 RTU-140 Quick Start v1.00 2019/05/08 RTU-140 Quick Start What’s In the Box! ············································ In addition to this guide, the package includes the following items:...
- Page 2 RTU-140 Quick Start v1.00 2019/05/08 Appearance and Pin Assignments COM Port and Power Input Description Power Input： Black P.GND +10VDC ~ +30VDC Green RS-485 White Utility Port Red frame Micro USB...
- Page 3 RTU-140 Quick Start v1.00 2019/05/08 LED indicators LED Status LED Description Hengliang Power supply Flashes every 0.5 Battery charging seconds Hengliang 4G network search Flashes every 0.2 Data transfer / 4G network seconds registration completed Flashes once 3G network registration every 0.8 seconds...
- Page 4 Step 2: Follow the prompts to complete the installation How to use RTU Utility Operation Before RTU-140 Series Utility is connected to the PC correctly, please confirm these following steps: 1. The STA LED is blanking. There are 2 kinds of blanking in RTU-140.
- Page 5 Select PC-side COM PORT connected to RTU-140 Login/Logout： Before you can do anything with the RTU-140, you must log in. After the login is successful, the option will become Logout, and the options in the Utility will allow the operation. If the SMS machine has been reopened or turned off, you must log in again.
- Page 6 Signal Quality： Query the signal strength of the current device. 3. Status Bar Display information about the operation of the RTU-140 Utility, from left to right, in order (1) PC-side COM Port number used by the Utility. (2) Transmission parameter setting of COM Port.
