Close intermediate landings:
On a construction site intermediate landings can be made inac-cessible, if
desired. Instead of deleting those landings and reprogramming the landings
above, the landings can be locked out in the control system.
This is performed in the following manner:
– Drive to the landing in normal mode (for example landing 4 of totally 8).

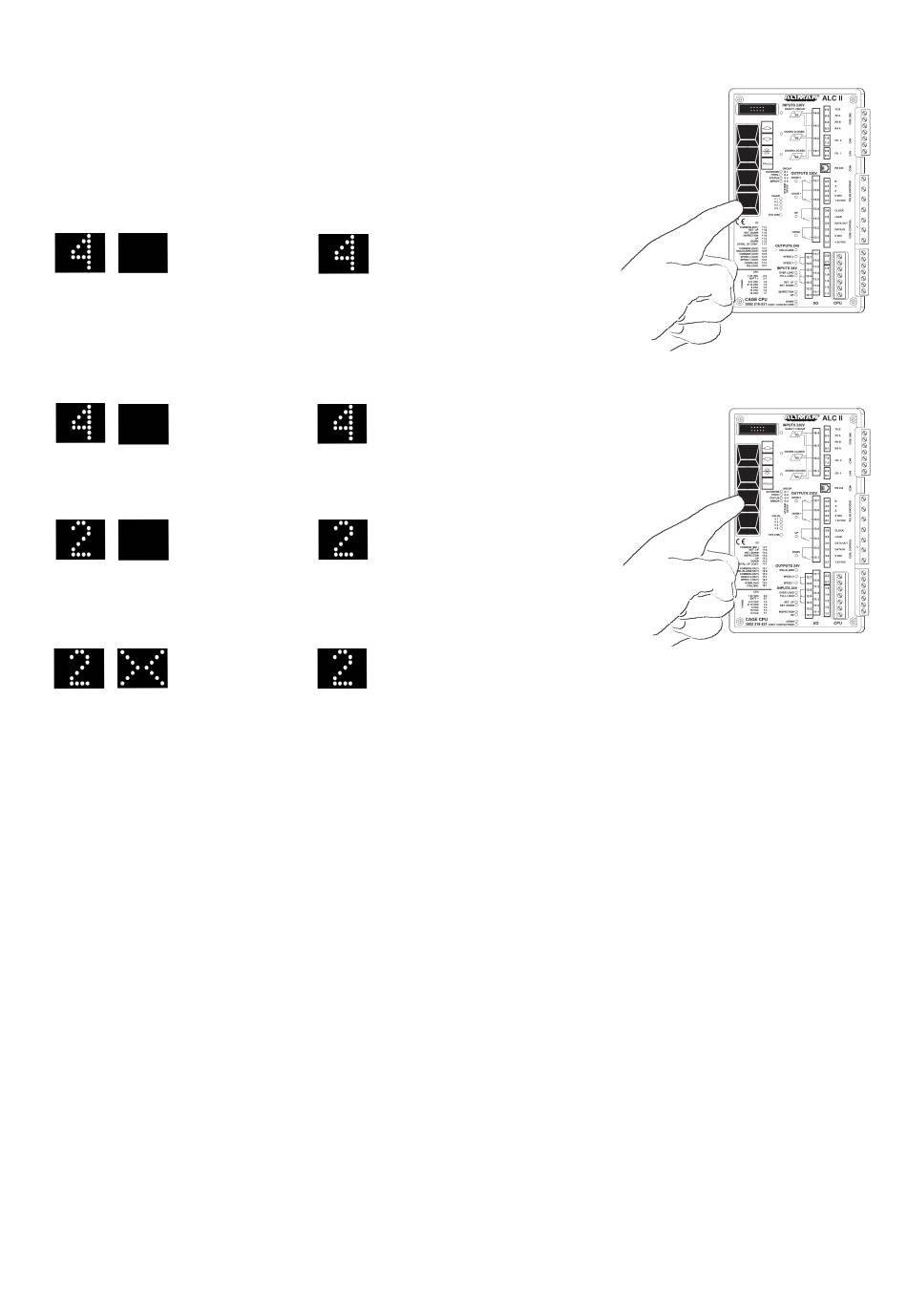

The display shows:
– Press the Prog. button on the car CPU and keep it depressed After
approximately 3 seconds the Prog. LED will illuminate. Then release the
Prog. button and depress the Stop Next Landing button.
Do not touch the doors when the system starts unlock the doors.
The display shows:
The 4 th landing is now closed, all doors are locked and the lift has returned
to normal operation. Move the lift to an open landing – for example landing
2.
The permanent lift does not attempt to start if you try to desti-nate it to a
"closed" landing. The display for the construction hoist will show an "X" in
this situation.
Programming of minus floor (floors below the 0 ground floor):
This is performed in the following manner:
–
All floors erased and standing on ref. breaker.
–
Press the Prog. button on the car CPU inside the main panel until the Prog.
LED is illuminated.
The lift is now in programming mode.
–
Run with up/down to the lowest floor, then press the Stop Next Landing
button.
The system will unlock the doors one by one. Open suitable door for the
landing in question and leave it open.
–
When the door is open there are 4 banks of indication to choose from.
To change banks press Prog. and step with Up/Down buttons.
–
Choose for example –4 and close the door.
–
Go up to the next floor. The system will automatically choose the correct
indication, if not step to the correct indication.
Remarks:
If running with joystick for up or down, the lift stops as normal on 0. Press
again for top or bottom.
On HW the lift by default goes to the lowest floor if nothing else is
programmed.
After the CD travel the lift stops on floor 0.
When erasing all floors you must be on lowest floor.
Remember that programming of minus floor is not the same as changing
floor indication.
To set minus 2 (–2) with keyboard, press 0 and 2.
4 lights up on the display
for the single system.
4 lights up on the display
for the single system.
2 lights up on the display
for the single system.
2 lights up on the display
for the single system.
