Alimak ALC II User Manual page 20

A
14

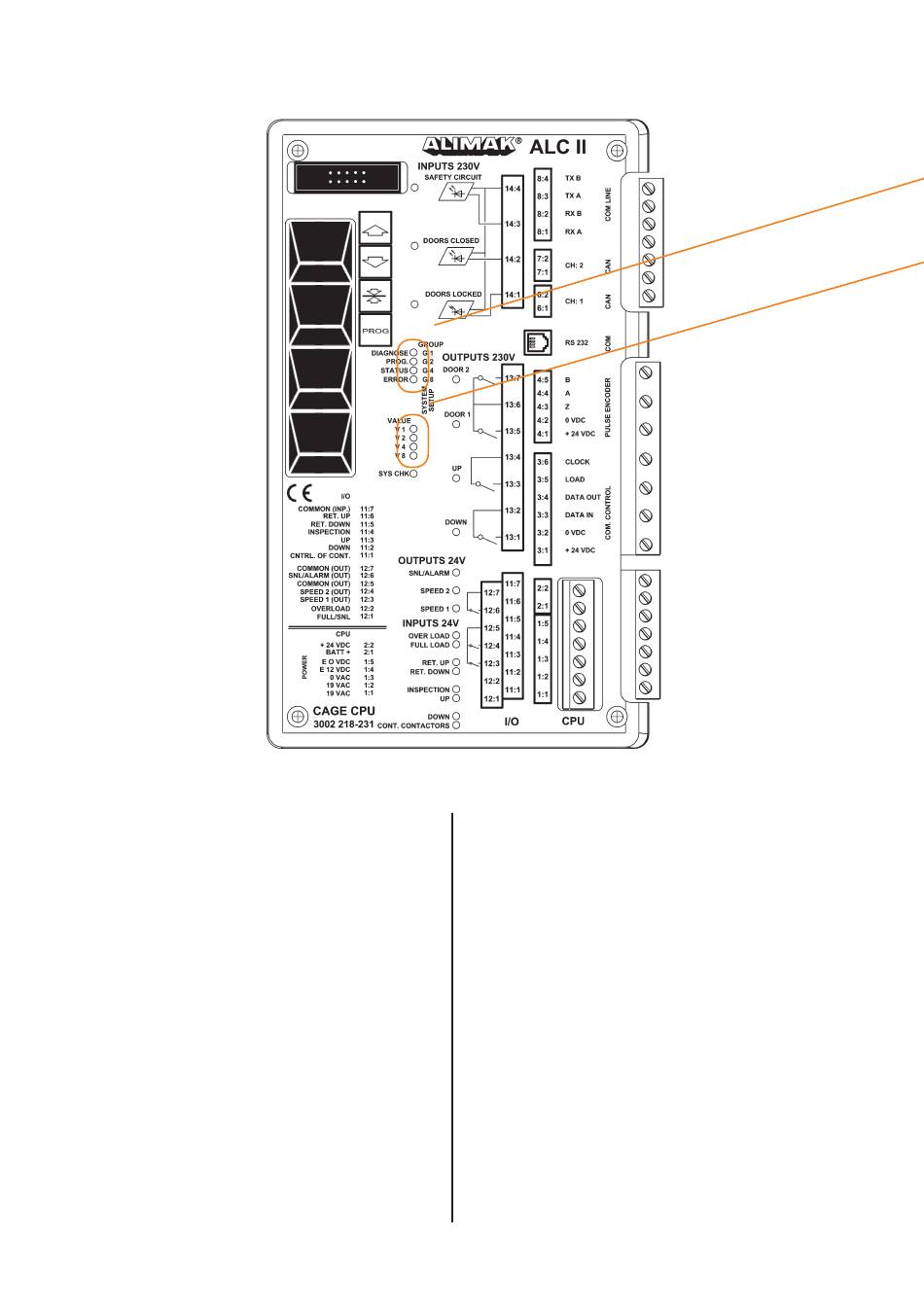

Example 1:
Door close sequence set to nom, 6 sec.
GROUP 0 o VALUE 9
o
o
o
Example 2:
Car to be addressed to landing A (level 3) when high
wind speed occurs.
•
GROUP 7 VALUE 1
•
•
o
GROUP 10 o VALUE 3
•
o
•
o
•
V2 + V4 = 6 sec.
•
V4
o
•
High wind speed
o
o
o
•
V1 + V2 = 3
•
(level 3 chosen)
o
o
ALIMAK 34906 - 1/09
Example 3:
Car to be addressed to landing B (level 18) automatically
with 5 min. delay.
GROUP 8 o VALUE 5
o
o
•
GROUP 12 o VALUE 2
o
•
•
•
GROUP 13 VALUE 1
o
•
•
•
= means LED ON
o = means LED OFF
•
V1 + V4 = 5 min.
o
•
•
addressed to landing B
o
•
level 2
o
o
•
level 16 to be added
o to level 2 (previous
o group 12 above)
o = level 18
