Information and fault indications on displays
Fault indications
A hoist / lift equipped with the ALIMAK ALC control system and
landing level display on the lift electrical panel has access to a fault
indication system. Faults indicated at the display are the following:

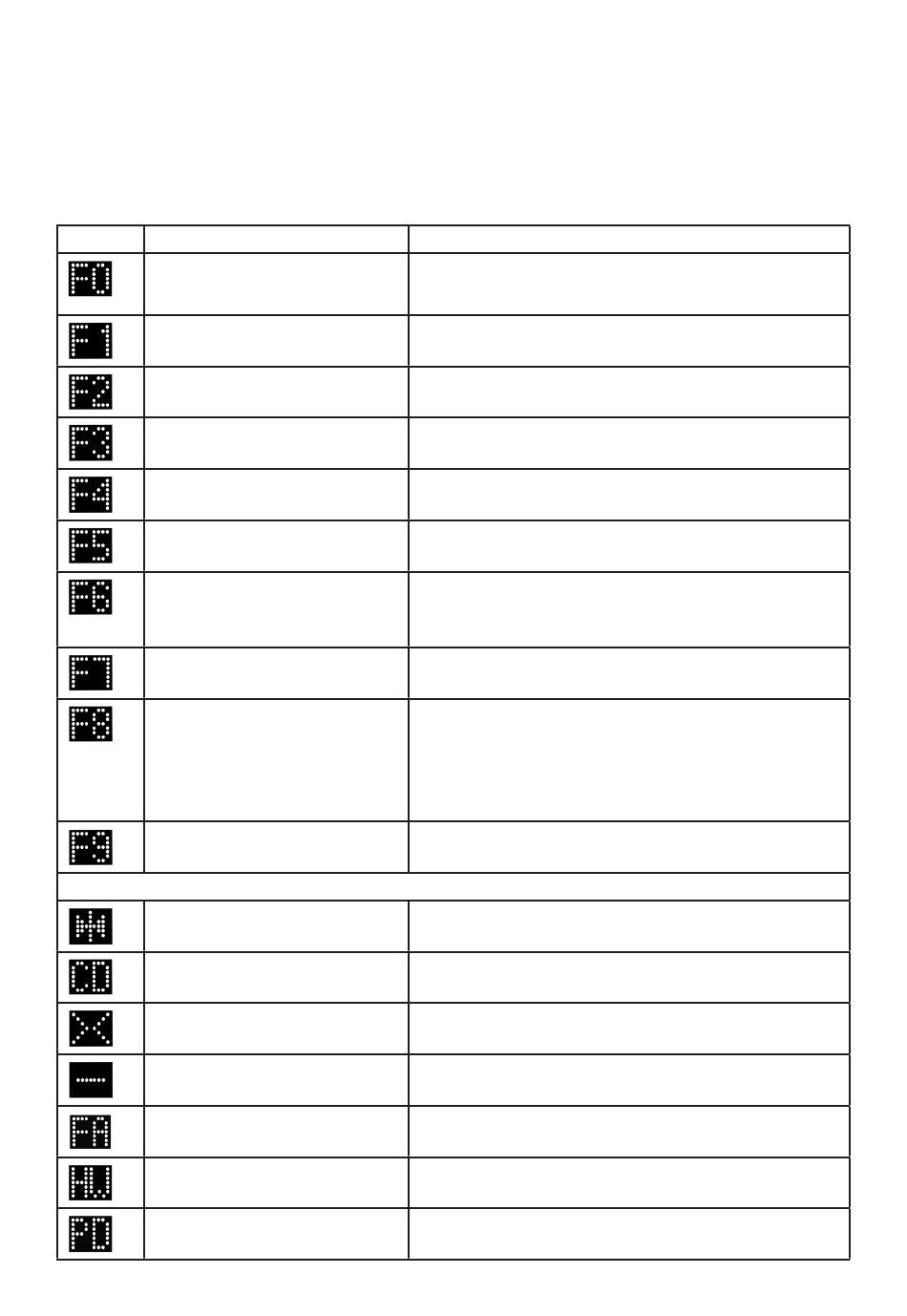

Symbol Text in display
I/O Error
Safety circuit.
Door error
EN ramp fault
Lock fault
Overload
Inspection drive
Programming
Motor Error
Emergency Stop in Base
Adaptive fault
Speed fault
Config error
Calibration fault
Temperature fault
Ctrl Circuit fault
Door open
Calibration drive
Blocked lift
Car Only
Fire / Fire2 / Flood
High wind
Permission to drive
Explanation
Error in I/O boards. Card/s missing or broken.
Safety circuit broken.
Door circuit open with hoist between landings
Fault in door closing sequence, or EN ramp/
Hydraulic lock device
Overload
Hoist in Inspection or in Programming mode. To
reset after inspection drive, break the safety circuit.
Hoist does not start within start time/ fault on pulse
encoder. Error in CAN-interface with VFC drive.
Must be set set in parameters.
Emergency push button at base activated
(construction hoists only)
See page A16 for specification of F8 errors.
Fault in the control circuit of the contactors.
Door(s) open
The system is in position for calibration drive. Carry
out the calibration drive
Inside the car: closed landing.
At the base: No communication with car CPU.
At the base: "Car only". Lift can only be addressed
from inside the car. (Car only)
Fire / flood alarm
High wind speed / Low temperature (Hard winter)
Permission to drive
