Alimak ALC II User Manual page 22

A
16

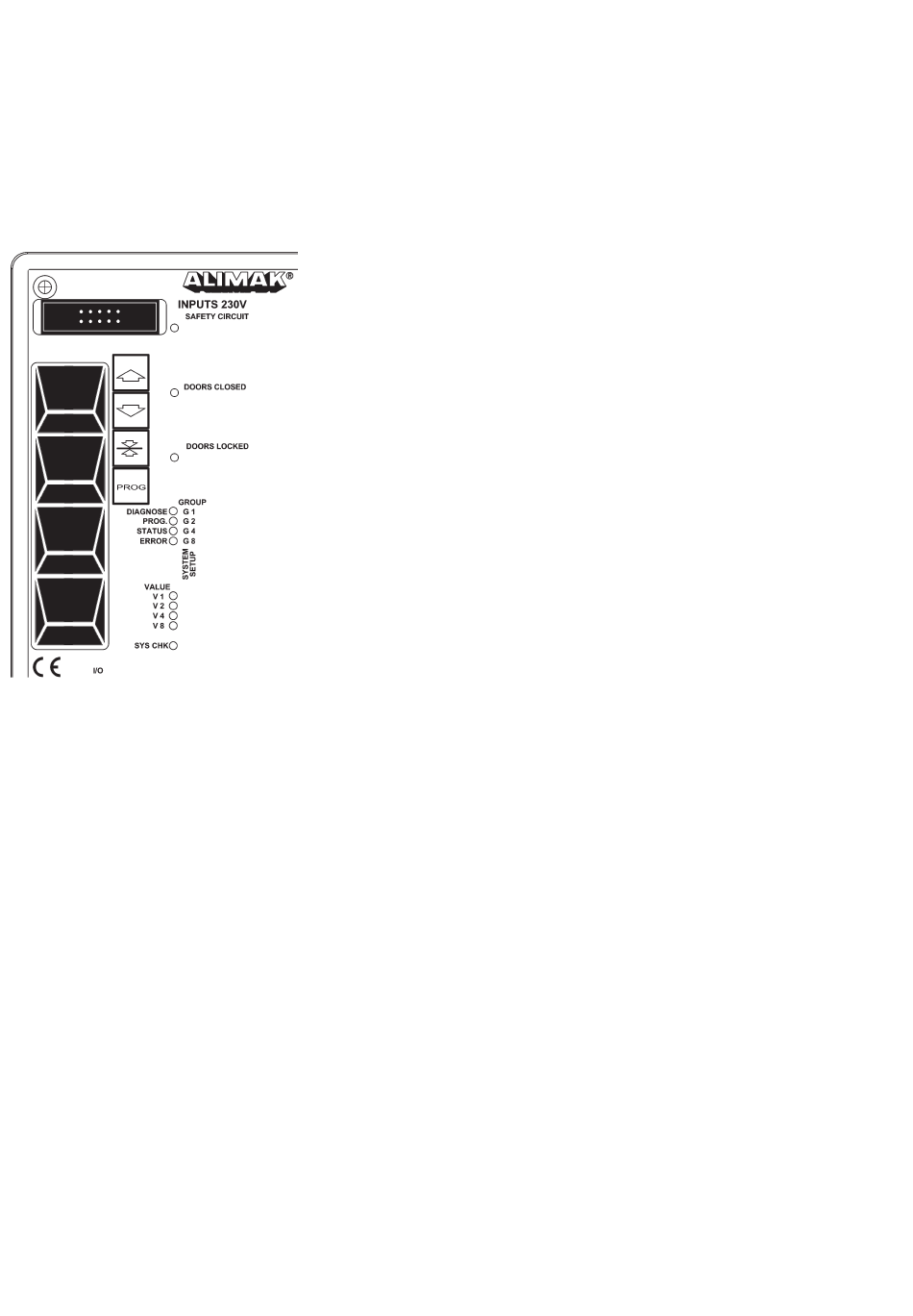

Information and fault indications on the car CPU
Group Normal mode
o s
VALUE V1
V2 o s
o s
V4
o s base configuration fault
V8
Group Normal & Status mode (push the Prog. button once)
VALUE V1 o s
o s
V2
o s
V4
V8 o s occupied
Error mode (push the Prog. button once)
VALUE V1 o s
o s
V2
V4 o s
o s calibration fault F8:4
V8
Error & Status mode (push the Prog. button once more)
o s
VALUE V1
o s
V2
V4 o s
o s interlock fault F3:2
V8
Diagnose mode – flashing,
(Norm./Insp. switch in Insp. position)
VALUE V1 o s
o s
V2
o s
V4
V8 o s RxIP (receive)
Diagnose mode – led G1 flashing,
(Norm./Insp. switch in Insp. pos. and SNL button depressed)
o s
VALUE V1
V2 o s
o s
V4
o s CAN1 rx
V8
Note 1
If V1 + V2 flash rapidly out of syn, the system calibration has not been
performed.
Note 2
If internal voltage drops under 20VDC, an f8 alarm will be shown as
indication, but it will not stop the lift/hoist.
ALIMAK 35046 - 1 /11
busy, car in operation
base OK (flashing)
car/base OK (flashing)
movement
z-pulse
direction upwards
car configuration fault F8:3
motor alarm F6
temperature fault F8:5
speed error F8:2
EN load ramp fault F3:1
stopping accuracy error F8:1
GPRS modem (Or in Ex. mode out of door zone)
IP adress choosen
TxIP (transmit)
GPS
GPS position valid
CAN2 rx
