System set-up

A system set-up has to be performed in order to prepare the
controller for the actual lift and its functions. Set-up is per-
formed in the following manner:
– Switch off the main power.
– Disconnect the battery.

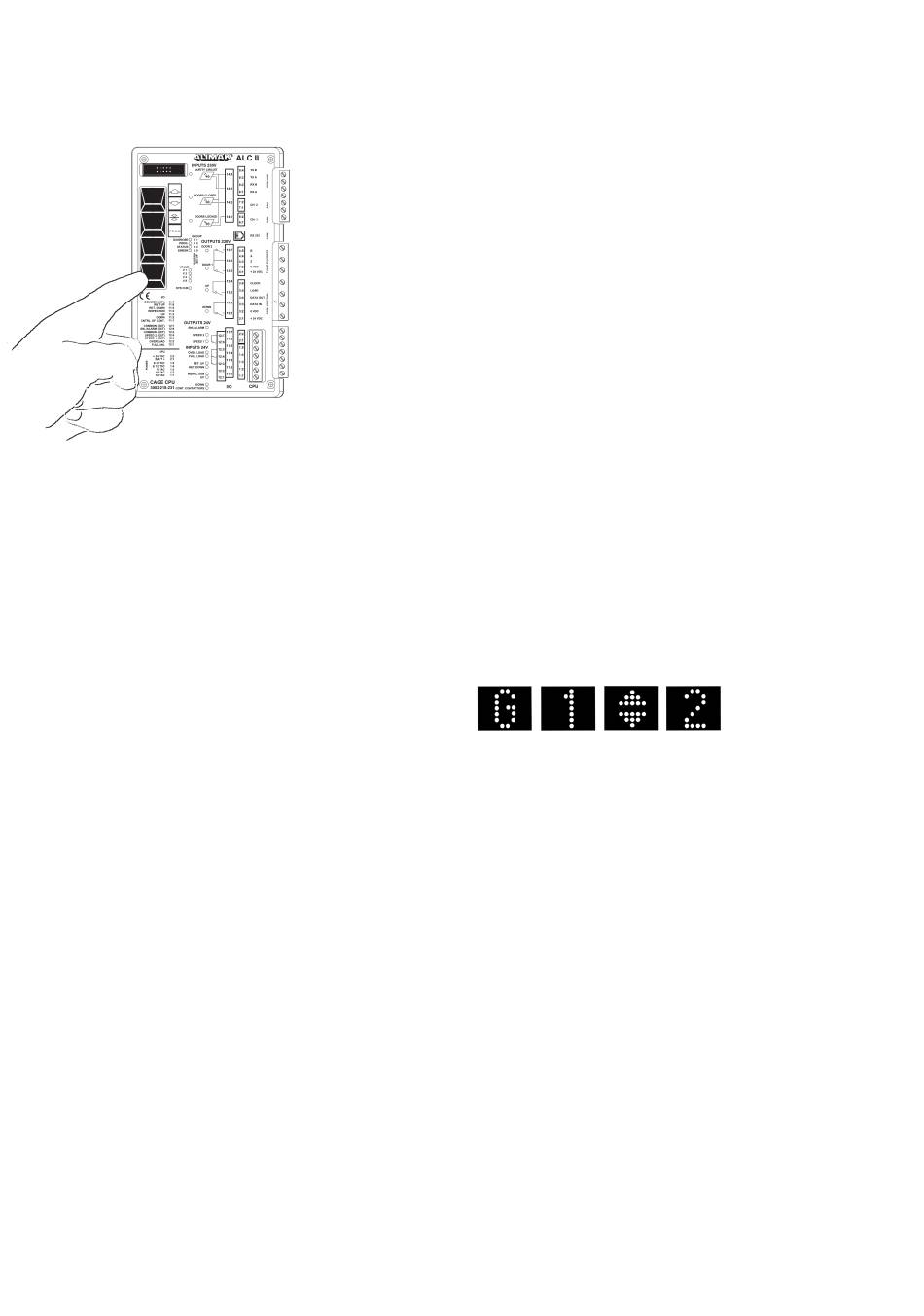

– Press on and hold Prog. button.
Note: The button must be kept depressed during the entire
set-up procedure.
– Switch on the main power. The system is now in set-up
mode.
On the main unit there are 2 locations with 4 LED indicators
in a row close to the push-buttons.
In system set-up mode the 4 LEDs indicate VALUE, V1,
V2, V4 and V8 in binary code. (LED "sys. check" is flashing).
The 4 LEDs above indicate GROUP, G1, G2, G4 and G8 in
binary code. (LED "SYS. CHECK" is illuminated).
When programming system parameters on the ALCII, the
GROUP and VALUE information shown on the ALCII
indicate the Group and Group Values.
For permanent lifts, there are also symbols shown in
sequence on the display, for group, number, and value
respectively.
Example of display symbols in sequence:
The Up or Down buttons are used to select GROUP level.
The Stop Next Landing button is used to open and select
VALUE level.
Select VALUE with Up / Down buttons.
Depress the Stop Next Landing button to store VALUE level
and the system then will switch to GROUP.
– Set the binary code in accordance with the lift and its
functions, using the table on page A13.
– The value will be stored every time Stop Next Landing
push-button is depressed.
– Release Prog. button.
– Connect the battery. The system set-up is now completed.
See collection of illustrative examples at the end of this manual.
NOTE! All values in GROUP 15 must be preset before the
factory calibration drive is performed. After running the
factory calibration drive the GROUP 15 will be locked for
further changes.
ALIMAK 34822 - 1 /05
Group 1, value 2.
