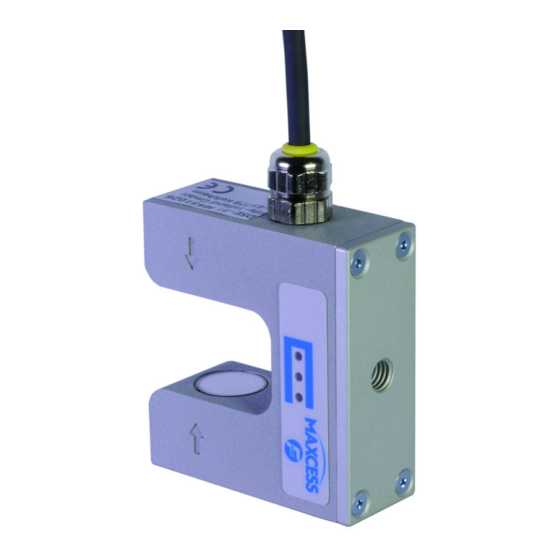

- Page 1 FIFE GUIDING SOLUTIONS FIFE DSE-31 Ultrasonic Sensor Operating Instructions MI 1082 1...
-
Page 2: Table Of Contents
Adresses ............8-1 MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 3: Introduction
The sensor must only be used in accordance with its intended purpose and in a technically flawless conditions. The sensor must not be changed or opened. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 4: Improper Usage
Additional sensor data can be provided to other hardware equipment if the Fife D-MAXE is linked appropriately to the network. MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 5: Safety Instructions
The signal word CAUTION refers to a possible danger which could lead to slight to moderate injury. The signal word ATTENTION refers to a possible danger which could lead to material damage. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 6: Symbols
Keep for future use. Additional markings – Bulleted list ∙ Instructions 1. Instructions which must be processed in the specified order 2. End of the instructions Reference or cross-reference Note: Reference to important information. MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 7: Personnel Requirements
The electrician is specially trained for the field in which he or she works and is familiar with the relevant standards and regulations. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 8: Preventing Hazards
Fife-Tidland may be used. – The sensor may not be used as a support, handle or step. There is a danger that the sensor will become damaged (breaking off/snapping), resulting in personal injury. MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 9: Installation
The electronic components may be damaged. – Do not place close to strong electrostatic fields: The electronic components may be damaged. – Not in places where there is a risk of explosions. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 10: Dimensions
A large variety of assembly options are possible in connection with the various sensor mountings. ATTENTION Tighten the M8 fastening screws to a max. torque of 9Nm. Tighten the M5 fastening screws to a max. torque of 3Nm. MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... - Page 11 MO-32/8 max 55 Sensor bracket type MB Square bar Sensor max. bracket length MB-20 1600 15,5 MB-25 2200 18,5 41,5 18,5 MB-32 2400 23,5 23,5 1 square bar Figure 3.2: Type MB www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor...
-
Page 12: Electrical Connection
– The negative potential must be connected to ground. – The sensor housing must be grounded via the cable screen. see also the drawing for the sensor cable in the system documentation MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 13: Operation
Depending on the material of the web that is being guided, it is possible that the web edge could grind against the inside of the sensor fork, resulting in notches and incisions on the sensor. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 14: Sensor Calibration
The LED on which the edge of the material web is located flickers. The LED(s) of the covered area(s) is/are lit. Example B Example A Example B flickers flickers 1 Material web Figure 4.1: DSE-31 sensor MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 15: Maintenance
3. Unscrew the sensor from its bracket. 4. Store the sensor in a cool, clean and dry place. Ambient conditions, page 7-1 see Dispose of the sensor according to your national requirements. www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 16: Troubleshooting
Amplitude of measuring signal too The error cannot be corrected by the customer. high Service required or the sensor must be sent to Fife-Tidland GmbH. Amplitude of measuring signal too General hardware error MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 17: Technical Data
7,6mm (Sensor field of view) Linearity 5% typical error (at 10% .. 90% of signal) Web plane change 5% max. error (20% .. 80% of gap width) Temperature error 5% (at 10°C .. 40°C) www.maxcess.eu DSE-31 MI 1082 1 Digital Ultrasonic Sensor... -
Page 18: Electrical Connection
4 Output signal (analogue or RS-485) Figure 7.1: M12 connector Standards The DSE-31 sensor was constructed in accordance with the standards and regulations of the European Union. A Declaration of Conformity is available. MI 1082 1 DSE-31 www.maxcess.eu Digital Ultrasonic Sensor... -
Page 19: Service
Max-Planck-Straße 8 Siemensstraße 13-15 65779 Kelkheim 48683 Ahaus Deutschland Deutschland Telefon: +49 - 6195 - 7002 - 0 E-Mail: service@maxcess.eu Web: www.maxcess.eu Maxcess 222 West Memorial Road Oklahoma City, OK 73114, USA Telefon: +1 - 405 - 755 - 1600 E-Mail: service@maxcessintl.com... - Page 20 8 - 2 SERVICE EUROPE, MIDDLE EAST NORTH, CENTRAL CHINA JAPAN INDIA AND AFRICA AND SOUTH AMERICA Tel +49.6195.7002.0 Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +81.43.421.1622 Tel +91.22.27602633 sales@maxcess.eu sales@maxcessintl.com info@maxcessintl.com.cn japan@maxcessintl.com india@maxcessintl.com www.maxcess.eu www.maxcessintl.com www.maxcessintl.com.cn www.maxcess.jp www.maxcess.in © 2019 Maxcess...
