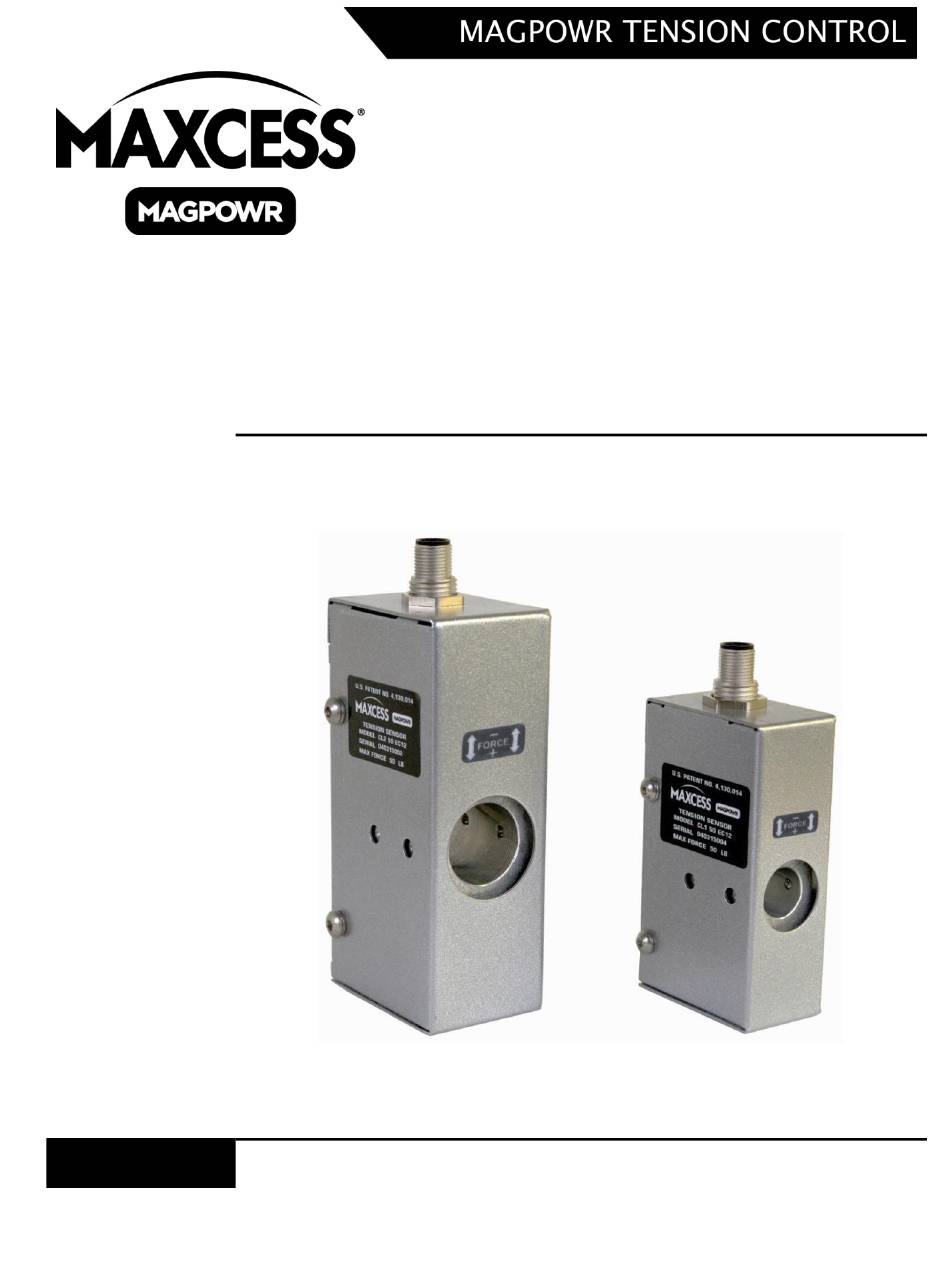

- Page 1 CL Cantilever Load Cells Instruction Manual MI 850A192 J 1...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION About these operating instructions ..............1-1 CE marking ......................1-2 Product overview ....................1-2 SAFETY INSTRUCTIONS Instructions for use ....................2-1 Safety symbols ..................... 2-1 Symbols used ....................... 2-2 Basic safety information ..................2-3 MODEL NUMBERS Model number key ....................3-1 Standard models.................... -
Page 3: Introduction
1–1 INTRODUCTION About these All of the information herein is the exclusive proprietary property of Maxcess International, and is disclosed with the understanding operating that it will be retained in confidence and will neither be duplicated instructions nor copied in whole or in part nor be used for any purpose other than for which disclosed. -
Page 4: Ce Marking
1–2 INTRODUCTION CE marking Only the 2006/42/EC Machinery directive applies to these devices and they are not marked with the CE sign. Electromagnetic Compatibility (EMC) The load cell device is inherently benign in terms of electromagnetic compatibility and the EMC directive has not been applied. -
Page 5: Safety Instructions
2–1 SAFETY INSTRUCTIONS Instructions for To ensure safe and problem free installation of the load cell device, the load cell must be properly transported and stored, professionally installed and placed in operation. Proper operation and maintenance will ensure a long service life of the device. Only persons who are acquainted with the installation, commissioning, operation and maintenance of the system and who possess the necessary qualifications for their activities may... -
Page 6: Symbols Used
2–2 SAFETY INSTRUCTIONS Symbols used The following safety identification symbols are used in these operating instructions. WARNING/CAUTION – General danger or important note Reference to general hazards that may result in bodily injuries or damage to device or material. WARNING/CAUTION – Danger due to crushing Reference to danger of injury caused by crushing. -
Page 7: Basic Safety Information
2–3 SAFETY INSTRUCTIONS Basic safety information Proper use The load cell devices are intended to be used on machines or systems to monitor the tension in a web via the customer’s cantilever shaft and roll assembly installed in the load cell. Indoor operation. -
Page 8: Model Numbers
3–1 MODEL NUMBERS Model number key CL – 1 – 25 - EC12 M Sxx Series Size Maximum load Connnector Type Units Specials 1 or 2 kg* / lbs * kg if 'M' is present in 'Units' Standard models M12 Connector English Shaft Bore Size 1 Size 2... -
Page 9: Connecting Cables
3–2 MODEL NUMBERS Connecting cables M12 cables (standard) Model Length (meters) Max Temperature LCC5M LCC10M LCC15M LCC20M LCC25M LCC30M 80 °C LCC35M LCC40M LCC45M LCC50M LCC55M LCC60M + power white + signal black - signal green - power www.maxcessintl.com MAGPOWR CL Load Cells MI 850A192 J 1... -
Page 10: Legacy Models
3–3 MODEL NUMBERS Legacy models Obsolete and non-stock Size 1 Size 2 Model Force Rating Model Force Rating CL1-5 5 lb [2.27 kg] CL2-50 50 lb [22.7 kg] CL1-15 15 lb [6.8 kg] CL2-150 150 lb [68.0 kg] CL1-50 50 lb [22.7 kg] CL2-500 500 lb [226.8 kg] Connector cables (legacy) -
Page 11: Product Dimensions
4–1 PRODUCT DIMENSIONS Product dimensions Standard models CL1-5-EC12 CL1-2-EC12M CL2-15-EC12 CL2-7-EC12M CL1-15-EC12 CL1-7-EC12M CL2-50-EC12 CL2-25-EC12M CL1-50-EC12 CL1-25-EC12M CL2-150-EC12 CL2-75-EC12M CL2-500-EC12 CL2-250-EC12M 113.8 [4.48] 113.8 [4.48] 143.5 [5.65] 143.5 [5.65] 95.8 [3.77] 95.8 [3.77] 126.2 [4.97] 126.2 [4.97] 37.8 [1.49] 37.8 [1.49] 51.6 [2.03]... -
Page 12: Legacy
4–2 PRODUCT DIMENSIONS Product dimensions Legacy (obsolete) CL1-5 CL2-50 CL1-15 CL2-150 CL1-50 CL2-500 129.8 [5.11] 159.3 [6.27] 113.0 [4.45] 142.5 [5.61] 37.8 [1.49] 51.6 [2.03] 31.0 [1.22] 43.7 [1.72 54.6 [2.15] 61.0 [2.40] 41.4 [1.63] 56.4 [2.22] 15.5 [0.61] 21.8 [0.86] 25.4 [1.00]... -
Page 13: Installation
5–1 INSTALLATION Mechanical and electrical installation CAUTION – Possible damage to load cell. Do not hammer on the load cell. CAUTION – Possible damage to load cell. Do not disassemble the load cell; there are no serviceable parts inside. WARNING – Danger of injury from crushing. Maintenance and repair tasks on the load cell device must be performed only when the machine has been stopped and has been secured from being turned on again. -
Page 14: Shaft Roll Assembly
5–1 INSTALLATION Mounting continued The force direction arrow should also bisect the wrap angle of the web, and point in the same direction as the resultant tension Figure 2. force as shown in Figure 2. Resultant force alignment Wiring See page 3-2 Shaft and roll 1. -
Page 15: Specifications
6–1 SPECIFICATIONS Specifications WARNING – Do not use the devices outside of their rated specifications. Gage Resistance 350 ohm Gage Type Metal foil, full bridge Excitation Voltage 10 VDC maximum Output Signal 21 mVDC maximum at full load rating Operating Temperature -30ºC to 80ºC Temperature effect on zero 0.02% of rating per ºC... - Page 16 AND AFRICA AND SE ASIA Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +91.22.27602633 Tel +81.43.421.1622 Fax +1.405.755.8425 Tel +49.6195.7002.0 Fax +86.756.881.9393 Fax +91.22.27602634 Fax +81.43.421.2895 asia@maxcessintl.com sales@maxcessintl.com Fax +49.6195.7002.933 info@maxcessintl.com.cn india@maxcessintl.com japan@maxcessintl.com www.maxcess.asia www.maxcessintl.com sales@maxcess.eu www.maxcessintl.com.cn www.maxcess.in www.maxcess.jp www.maxcess.eu © 2016 Maxcess...
