Summary of Contents for Maxcess SE-26B
- Page 1 SE-26B Line Guide Sensor Installation Manual MI 1-928 1 B...
-
Page 2: Table Of Contents
SERVICE LIST OF FIGURES Figure 1. SE-26B Outline dimensions ................. 3-1 Figure 2. SE-26B Mounted on M20 mounting bracket ............3-1 Figure 3. Guiding types ...................... 3-2 Figure 4. Changing sensor direction .................. 3-2 Figure 5. Guiding different material types ................3-3 www.maxcessintl.com... -
Page 3: Introduction
1–1 INTRODUCTION About these All of the information herein is the exclusive proprietary property of Maxcess International, and is disclosed with the operating understanding that it will be retained in confidence and will instructions neither be duplicated nor copied in whole or in part nor be used for any purpose other than for which disclosed. -
Page 4: Product Overview

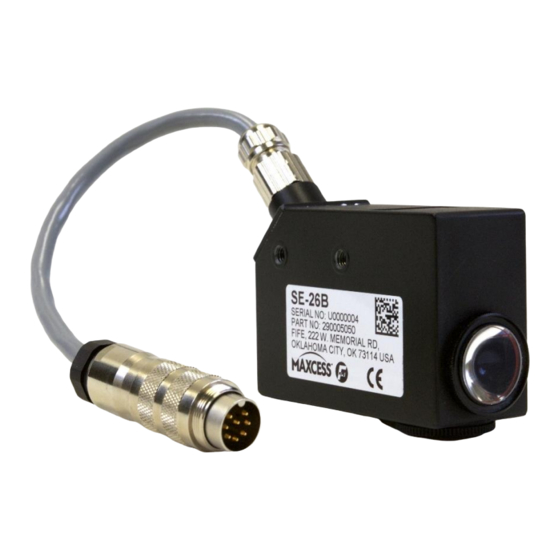

1–2 INTRODUCTION Product overview The SE-26B is a visible white LED light sensor that can be used to guide to the center of a line or to an edge. The sensor provides two output signals to the Fife guiding controller, one for EDGE mode and one for LINE mode. -
Page 5: Safety Instructions
The signal word WARNING refers to the danger of moderate to severe bodily injuries. The signal word CAUTION refers to the danger of slight to moderate bodily injuries or material damage. The signal word NOTICE refers to the possibility of damage to equipment. www.maxcessintl.com SE-26B MI 1-928 1 B... - Page 6 WARNING/CAUTION – Danger due to voltage, electric shock Reference to danger of injury caused by electric shock due to voltage. WARNING/CAUTION – Danger due to hot surfaces Reference to risk of injury caused by burning. www.maxcessintl.com SE-26B MI 1-928 1 B...
-
Page 7: Basic Safety Information
Any line guiding sensor which is damaged must not be installed or put into operation. Only perform installation, maintenance or repair tasks on the line guiding sensor when the machine into which the SE-26B is installed has been stopped and is secured from being turned on. - Page 8 Maintenance and repair WARNING – Death or injury can result from unexpected movement of the machine into which the SE-26B is installed. Protect against unexpected movement by removing electrical power from the line guiding sensor and the machine into which the line guiding sensor is installed.
-
Page 9: Installation
3–1 INSTALLATION Product dimensions Figure 1. SE-26B Outline dimensions Figure 2. SE-26B Mounted on M20 mounting bracket www.maxcessintl.com SE-26B MI 1-928 1 B... -
Page 10: Mechanical Installation
WARNING – Danger of injury from crushing. Maintenance and repair tasks on the SE-26B must be performed only when the machine into which the SE- 26B is installed has been stopped and has been secured from being turned on again. -
Page 11: M20 Mounting Bracket
Different material types FLAT non-reflective materials Mount the SE-26B sensor perpendicular to the web so that all of the light from the sensor is reflected back into the lens. GLOSSY reflective materials (Example: glossy laminates, metallic materials, shiny Mylar®) Mount the SE-26B sensor at a 15°... -
Page 12: Operation
ASC mode prevents large guide movements when the line or edge of the material is lost by the sensor. When guiding to a non-continuous line or edge, enable ASC mode in the Fife guiding controller. www.maxcessintl.com SE-26B MI 1-928 1 B... -
Page 13: Maintenance
5–1 MAINTENANCE Maintenance No regular maintenance is required on the SE-26B. The sensor is not field serviceable. Contact Maxcess for service requests: page 8-1. www.maxcessintl.com SE-26B MI 1-928 1 B... -
Page 14: Troubleshooting
TROUBLESHOOTING Fault description Probable cause Solution No Light Spot No power to Fife guding Check Fife guding controller power controller. wiring. Cable connection loose. Check cable connections on SE-26B pigtail and Fife guiding controller. www.maxcessintl.com SE-26B MI 1-928 1 B... -
Page 15: Specifications
5% to 85% Pollution degree 2 (IEC664-1) Sensor Output Range -20 mA to +20 mA for line guiding -20 mA to +10 mA for edge guiding Certifications and environmental compatibility Product certifications – RoHS www.maxcessintl.com SE-26B MI 1-928 1 B... -
Page 16: Service
Fax: 1.405.755.8425 Fax: +49.6195.7002.933 Web: www.maxcessintl.com Web: www.maxcess.eu If it is necessary to return the SE-26B for service, care must be taken to properly package the unit to prevent damage during shipment. If possible, use the original shipping containers. AMERICAS...
