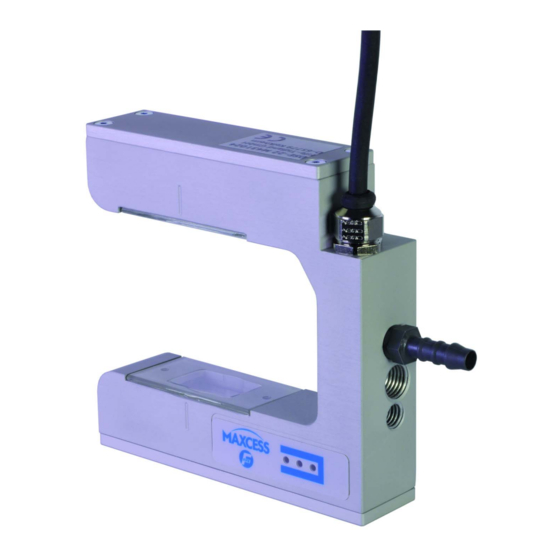

- Page 1 FIFE GUIDING SOLUTIONS FIFE DSE-22 Operating Instructions Infrared Light Sensor MI 1081 1 A...
-
Page 2: Table Of Contents
Adresses ............8-1 MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 3: Introduction
For more information, see the web guide controller operating instructions. The sensor must only be used in accordance with its intended purpose and in a technically flawless conditions. The sensor must not be changed or opened. www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 4: Improper Usage
Depending on the type of dirt contamination, this makes it possible to keep the protectors, which cover transmitter and receiver, free of large pieces of dirt with a continuous or pulsing flow of air. MI 1081 1 A DSE-22 www.maxcess.eu... - Page 5 Additional sensor data can be provided to other hardware equipment if the Fife D-MAXE is linked appropriately to the network. The protectors can be made of plastic or glass. www.maxcess.eu DSE-22 MI 1081 1 A...
-
Page 6: Safety Instructions
The signal word CAUTION refers to a possible danger which could lead to slight to moderate injury. The signal word ATTENTION refers to a possible danger which could lead to material damage. MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 7: Symbols
Keep for future use. Additional markings – Bulleted list ∙ Instructions 1. Instructions which must be processed in the specified order 2. End of the instructions Reference or cross-reference Note: Reference to important information. www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 8: Personnel Requirements
The electrician is specially trained for the field in which he or she works and is familiar with the relevant standards and regulations. MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 9: Preventing Hazards
These risks must be recorded in a risk assessment by the machine/system builder and taken into consideration in the operating instructions. www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 10: Installation
– Do not place close to strong magnetic fields: The electronic components may be damaged. – Do not place close to strong electrostatic fields: The electronic components may be damaged. – Not in places where there is a risk of explosions. MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 11: Dimensions
3 Threading for air connection 2 7/16-20 UNF threading for sensor bracket type 4 M5 threading for sensor bracket type MB type M and MO 5 Connection cable length 100mm (without plug) Figure 3.1: DSE-22 Dimensions, GW=51mm (standard) www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 12: Mechanical Fastening
Tighten the M5 fastening screws to a max. torque of 3Nm. Tighten the M8 fastening screws to a max. torque of 9Nm. Tighten the 7/16-20 UNF fastening screws to a max. torque of 12Nm. MI 1081 1 A DSE-22 www.maxcess.eu... - Page 13 MO-25/7/16 max 55 Sensor bracket type MB* Square bar Sensor max. bracket length MB-20 1600 15,5 MB-25 2200 18,5 41,5 18,5 1 square bar Figure 3.3: Type MB Other dimensions are possible upon request. www.maxcess.eu DSE-22 MI 1081 1 A...
-
Page 14: Electrical Connection
(PELV). – The negative potential must be connected to ground. – The sensor housing must be grounded via the cable screen. see also the drawing for the sensor cable in the system doc- umentation MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 15: Operation
Depending on the material of the web that is being guided, it is possible that the web edge could grind against the inside of the sensor fork, resulting in notches and incisions on the sensor. www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 16: Calibrating The Sensor Inputs Of The Web Guide Controller
The LED on which the edge of the material web is located flickers. The LED(s) of the covered area(s) is/are lit. Example B Example A Example B flickers flickers 1 Material web Figure 4.1: DSE-22 sensor MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 17: Maintenance
3. Unscrew the sensor from its bracket. 4. Store the sensor in a cool, clean and dry place. Ambient conditions, page 7-1 Dispose of the sensor according to your national requirements. www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 18: Troubleshooting
Setup error/no setup data Amplitude of measuring signal too The error cannot be corrected by the customer. high Service required or the sensor must be sent to Amplitude of measuring signal too Fife-Tidland GmbH. General hardware error MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 19: Technical Data
A data sheet (EK) can be requested for the respective material. Properties Light source Modulated infrared light Wavelength = 875 ± 25nm Spectral bandwidth = 37nm Sensor field of view 20mm Linearity 5% max. error (at 10% .. 90% of signal) www.maxcess.eu DSE-22 MI 1081 1 A... -
Page 20: Electrical Connection
3 P-GND 4 Output signal (analogue or RS-485) Figure 7.1: M12 connector Standards The DSE-22 sensor was constructed in accordance with the standards and regulations of the European Union. A Declaration of Conformity is available. MI 1081 1 A DSE-22 www.maxcess.eu... -
Page 21: Service
Max-Planck-Straße 8 Siemensstraße 13-15 65779 Kelkheim 48683 Ahaus Deutschland Deutschland Telefon: +49 - 6195 - 7002 - 0 E-Mail: service@maxcess.eu Web: www.maxcess.eu Maxcess 222 West Memorial Road Oklahoma City, OK 73114, USA Telefon: +1 - 405 - 755 - 1600 E-Mail: service@maxcessintl.com... - Page 22 8 - 2 SERVICE EUROPE, MIDDLE EAST NORTH, CENTRAL CHINA JAPAN INDIA AND AFRICA AND SOUTH AMERICA Tel +49.6195.7002.0 Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +81.43.421.1622 Tel +91.22.27602633 sales@maxcess.eu sales@maxcessintl.com info@maxcessintl.com.cn japan@maxcessintl.com india@maxcessintl.com www.maxcess.eu www.maxcessintl.com www.maxcessintl.com.cn www.maxcess.jp www.maxcess.in © 2020 Maxcess...
