Summary of Contents for Maxcess FIFE DSE-17

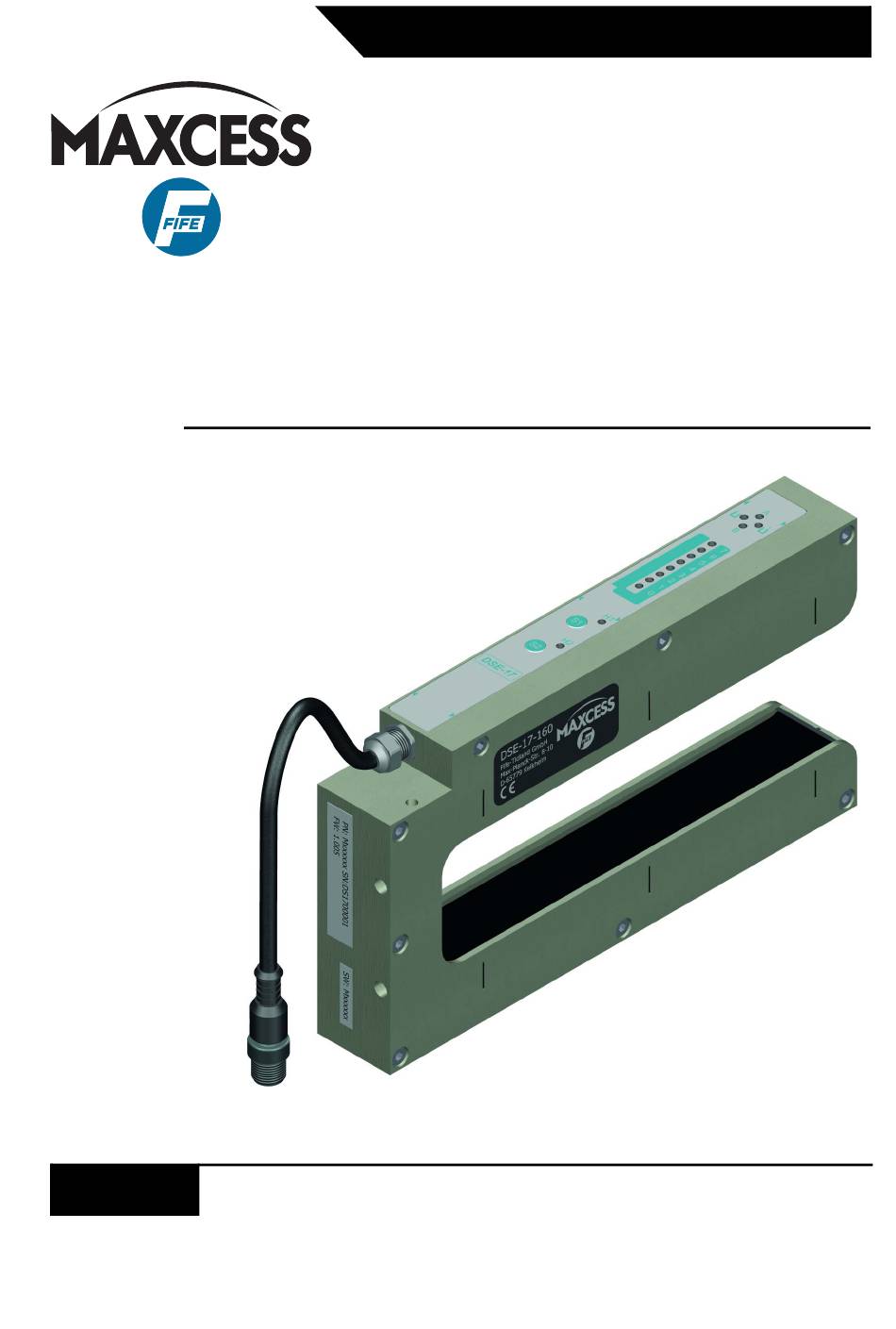

- Page 1 FIFE GUIDING SOLUTIONS FIFE DSE-17 Operating Instructions Infrared Sensor MI 1064 1 C...
-
Page 2: Table Of Contents
Air supply (optional) ........... 9-5 MI 1064 1 C DSE-17 www.maxcess.eu... - Page 3 Addresses ............10-1 www.maxcess.eu...
-
Page 4: Introduction
The sensor must only be used in accordance with its intended purpose and in a technically flawless conditions. The sensor must not be changed or opened. The protection panes are fastened with a special adhesive. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 5: Air Supply (Optional)
– This minimum contrast is set to 32% by default. – The position of the positive contrast with the smallest distance from the closed end of the sensor is assigned to the output function "Edge 1." www.maxcess.eu DSE-17 MI 1064 1 C... - Page 6 7 Upper side of the sensor fork 3 Displays 8 Fork opening 4 Part, serial and firmware numbers 9 Field of view restriction - 6.8mm on each side 5 Configuration number Figure 1.1: DSE-17 digital infrared sensor MI 1064 1 C DSE-17 www.maxcess.eu...
-
Page 7: One Web Mode
"Edge 1." Of the two negative contrasts, the position of the contrast with the greatest distance from "Edge1" is assigned to output function "Edge 2." The two remaining contrasts are not used for any further purposes. www.maxcess.eu DSE-17 MI 1064 1 C... - Page 8 The sensor is automatically calibrated to the transparency of the material. If the density of the material is not distributed evenly (cloudy), it is therefore possible that the output signal will be subject to greater fluctuations than is the case without these properties. MI 1064 1 C DSE-17 www.maxcess.eu...
-
Page 9: Safety Instructions
The signal word CAUTION refers to a possible danger which could lead to slight to moderate injury. The signal word ATTENTION refers to a possible danger which could lead to material damage. www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 10: Symbols
Keep for future use. Additional markings – Bulleted list ∙ Instructions 1. Instructions which must be processed in the specified order 2. End of the instructions Reference or cross-reference Note: Reference to important information. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 11: Personnel Requirements
These risks must be recorded in a risk assessment by the machine/system builder and taken into consideration in the operating instructions. www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 12: Installation
– Operating altitude: max. 3000m – Protect from vibrations – Not in the vicinity of strong magnetic fields The electronic components may be damaged. – Not in places where there is a risk of explosions. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 13: Dimensions
INSTALLATION 3 - 2 Dimensions .Y Y DSE-17-160 sensor DSE-17-300 sensor .Y Y 1 Thread for fastening 2 Length of connection cable about 140mm Figure 3.1: Dimensions of DSE-17-160 and DSE-17-300 www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 14: Mechanical Fastening
Holes with M5 threads are available on the housing for mounting the DSE-17 sensor. Figure 3.1 Figure 3.2 – A sensor bracket is required for the DSE-17-160 sensor. – Two sensor brackets are required for the DSE-17-300 and DSE-17-420 sensor. MI 1064 1 C DSE-17 www.maxcess.eu... - Page 15 Figure 3.4: DSE-17-160 with sensor bracket of type MB Square bar Mechanical Max. length fastening DSE-17-160 DSE-17-300 DSE-17-420 MB-20 1450 1400 1350 70,5 ca. 43 MB-25 1800 1750 1700 73,5 ca. 47 MB-32 2350 2300 2250 78,5 ca. 52 www.maxcess.eu DSE-17 MI 1064 1 C...
-
Page 16: Electrical Connection
In some cases the sensor can be connected via a Y-cable or an external distributor box to two sensor inputs on the web guide controller. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 17: Control Elements
– LED H2 is turned off in its regular operation state. – LED H2 flashes while the sensor is being calibrated. – LED H2 flashes in a certain pattern. The sensor is indicating an error. table, page 8-1 www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 18: Examples
– The sensor detects one material web edge. – The material web covers the outer part (3/8) of the sensor field of view. – The material web is located closer to the lower sensor side Example 1 Example 2 MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 19: Commissioning
Depending on the configuration, all analog outputs of the sensor return 0mA or 4mA. This assigned value is used to determine the reference value for the uncovered sensor on the web guide controller (no material in the field of view). www.maxcess.eu DSE-17 MI 1064 1 C... - Page 20 Note: If no key is pressed for more than 2minutes the sensor returns to its regular operation state. No calibration data will be saved. MI 1064 1 C DSE-17 www.maxcess.eu...
- Page 21 The sensor returns to its regular operation state without saving the data from the calibration. Press the S2 key and hold it for 3seconds to return to the regular operation state Calibration data will not be saved. www.maxcess.eu DSE-17 MI 1064 1 C...
- Page 22 Operation No tasks or settings are required for the sensor during operation. MI 1064 1 C DSE-17 www.maxcess.eu...
-
Page 23: Calibrating Sensor Dse-17
2. Disconnect the signal cable from the sensor. 3. Unscrew the sensor from its bracket. 4. Store the sensor in a cool, clean and dry place. Dispose of the sensor according to your national requirements. www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 24: Troubleshooting
Software version 1.022 an later: Overtemperature error The error is set at 65°C and canceled when the temperature falls back to 55°C. An error is displayed until it has been remedied. Note: Error display is suppressed during calibration. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 25: Technical Data
2 edges (1 web) Distance between the edges Normal mode: > 40mm Mode for narrow webs: > 15mm within the central 25mm of the fork opening > 12mm at the center of the fork opening www.maxcess.eu DSE-17 MI 1064 1 C... - Page 26 When the mode for narrow webs is used, the relevant web must be guided by suitable mechanisms within the central range of the fork opening. Fig. A Fig. B Fig. C Figure 9.1: Usable fork opening MI 1064 1 C DSE-17 www.maxcess.eu...
-
Page 27: Characteristic Values
The sensor calibration was performed in the installation position. from 10°C to 40°C *** The calibration of the web guide controller was performed at operation temperature. Resolution of the analog signals 12-bit resolution for 20mA 11-bit resolution for 10mA www.maxcess.eu DSE-17 MI 1064 1 C... -
Page 28: Electrical Connection
RS485-B RS485-A Signal 3 Signal 4 Use of individual analog signals is configuration-dependent. For information regarding the specific configuration of this sensor, refer to the drawing under the configuration number in the system documentation. MI 1064 1 C DSE-17 www.maxcess.eu... -
Page 29: Air Supply (Optional)
5µm or better Residual oil content 0.01mg/m³ or better Standards The DSE-17 sensor has been designed and constructed according to the standards and regulations of the European Union. A declaration of conformity is available on file. www.maxcess.eu DSE-17 MI 1064 1 C... - Page 30 E-Mail: service@maxcessintl.com Web: www.maxcessintl.com EUROPE, MIDDLE EAST NORTH, CENTRAL CHINA JAPAN INDIA AND AFRICA AND SOUTH AMERICA Tel +49.6195.7002.0 Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +81.43.421.1622 Tel +91.22.27602633 sales@maxcess.eu sales@maxcessintl.com info@maxcessintl.com.cn japan@maxcessintl.com india@maxcessintl.com www.maxcess.eu www.maxcessintl.com www.maxcessintl.com.cn www.maxcess.jp www.maxcess.in © 2020 Maxcess...
