CV-100/P1100 Series
User Manual
Version: V1.54
Industrial Panel PC
Power Efficient Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-W115/P1101 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CV-W115/P1101 Series

Summary of Contents for Cincoze CV-W115/P1101 Series

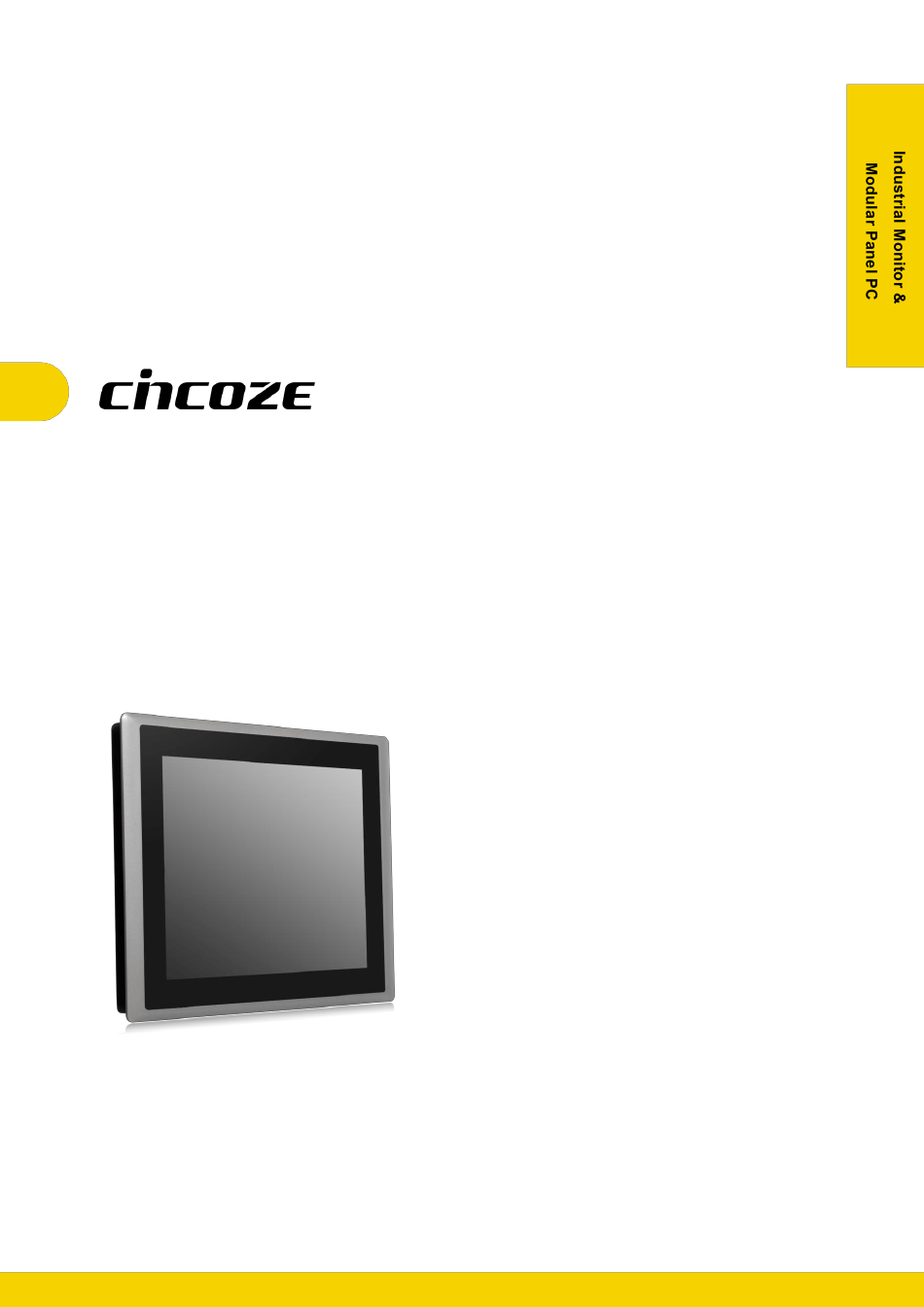

  • Page 1 CV-100/P1100 Series User Manual Industrial Panel PC Power Efficient Series Version: V1.54...

  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...05 Copyright Notice.…………………………………………………………………………………...05 Acknowledgement.………………………………………………………………......05 Disclaimer.………………………………………………………………….………………...05 Declaration of Conformity.………………………………………………….……………………05 Product Warranty Statement …………………………………………………………….....06 Technical Support and Assistance.…………………………………………….…………………07 Conventions Used in this Manual …………………………………………….…………....08 Safety Precaution …...……………………………………………….………….………....08 Package Contents ………………………………………………………….…….………...……10 Ordering Information …………………………………...…………………….…….……...……...10 Optional Modules & Accessories……………………………………........14 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....16 1.2 Highlights …………………………………………………….…………..……………..16 1.3 Product Pictures……...……………………………………….……………………....17...
  • Page 3 3.9 Connecting with CV Display Module..………..……………………….…………….....72 3.10 VESA Mount Bracket.…………..……...…….……….……………………….…....74 3.11 Panel Mount ……….…………..……...…….……….……………………….…....75 Chapter 4 BIOS Setup 4.1 BIOS Introduction …….……….…………….…….…..….……………………....80 4.2 Main Setup ……...……….…..……………….…..….………………..…………...81 4.2.1 System Date …….……………………………………………...……………....81 4.2.2 System Time ………..……………………………………………..………....81 4.3 Advanced Setup ……………………………………………………………………………...82 4.3.1 ACPI Settings …………………………………………………………………………82 4.3.2 F81866 Super IO Configuration……………………………….…………………..83 4.3.3 Hardware Monitor…………..…………………...……………………….…....84 4.3.4 S5 RTC Wake Settings……………..………………………………………………..85...
  • Page 4 Chapter 6 Optional Modules and Accessories 6.1 Location of the Connectors for CMI Modules……………………...……………………107 6.2 Installing a CFM-IGN Module...…….………………………………………………….……107 6.3 Installing a CFM-PoE Module…….…..……………………………….……..……….…….109 P1100 Series | User Manual CV-100/...

  • Page 5: Revision

    2021/06/28 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 9 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫ The power cord or plug is damaged. ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Utility DVD Driver Screw Pack Panel Mounting Kit Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Thermal Pad (for CPU Thermal Block) Note: Notify your sales representative if any of the above items are missing or damaged.
  • Page 11 10.4" TFT-LCD XGA 4:3 Modular Touch Panel PC CV-110HR-R10/P1101-N42-R10 with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch 10.4" TFT-LCD SVGA 4:3 Modular Touch Panel PC CV-110C-R10/P1101-E50-R10 with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch 10.4" TFT-LCD SVGA 4:3 Modular Touch Panel PC CV-110R-R10/P1101-E50-R10 with Intel®...
  • Page 12 15" TFT-LCD XGA 4:3 Modular Touch Panel PC with CV-115C-R10/P1101-E50-R10 Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch 15" TFT-LCD XGA 4:3 Modular Touch Panel PC with CV-115R-R10/P1101-E50-R10 Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch 15" TFT-LCD XGA 4:3 Modular Touch Panel PC with CV-115C-R10/P1101-N42-R10 Intel®...
  • Page 13 15.6" TFT-LCD WXGA 16:9 Modular Touch Panel PC CV-W115R-R10/P1101-E50-R10 with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch 15.6" TFT-LCD WXGA 16:9 Modular Touch Panel PC CV-W115C-R10/P1101-N42-R10 with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch 15.6" TFT-LCD WXGA 16:9 Modular Touch Panel PC CV-W115R-R10/P1101-N42-R10 with Intel®...

  • Page 14: Optional Modules & Accessories

    19" TFT-LCD SXGA 5:4 Modular Panel PC with Intel® Atom™ E3950 Quad Core Processor and without CV-119G-R10/P1101-E50-R10 Touch 19" TFT-LCD SXGA 5:4 Modular Panel PC with Intel® Pentium™ N4200 Quad Core Processor and without CV-119G-R10/P1101-N42-R10 Touch 21.5" TFT-LCD Full HD 16:9 Modular Panel PC with Intel®...

  • Page 15: Chapter 1 Product Introductions

    Chapter 1 Product Introductions P1100 Series | User Manual CV-100/...

  • Page 16: Overview

    CV-100/P1100 Series provides CDS (Convertible Display Systems) CV-100/P1100 Series is an extensive I/O, Mini-PCIe slot, 2.5” is a Cincoze patented technology, energy-saving fanless panel PC. SATA drive bay, mSATA socket, and which allows for easy system Based on Intel® Atom® / SIM card slot.

  • Page 17: Product Pictures

    1.3 Product pictures 1.4 Key Features ⚫ 8.4” ~ 24” TFT LCD with Resistive 5-wire Touch, Projected Capacitive Touch or Glass Only (Available on Selected Models) ® ® ⚫ Onboard Intel® Atom / Pentium Processor ⚫ Triple Independent Displays (via VGA and DisplayPort outputs) ⚫...

  • Page 18: Hardware Specification

    1.5 Hardware Specification 1.5.1 CV-108C/P1101-E50 (N42) & CV-108R/P1101-E50 (N42) Display Expansion • LCD Size: 8.4" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 800 x 600 • 1x SIM Socket • Brightness (cd/m2): 400 • Supports Control Function Module (CFM) Technology •...
  • Page 19 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 20 1.5.2 CV-110HC/P1101-E50 (N42) & CV-110HR/P1101-E50 (N42) Display Expansion • LCD Size: 10.4" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1024 x 768 • 1x SIM Socket • Brightness (cd/m2): 400 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 1400 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 21 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 22 1.5.3 CV-110C/P1101-E50 (N42) & CV-110R/P1101-E50 (N42) Display Expansion • LCD Size: 10.4" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 800 x 600 • 1x SIM Socket • Brightness (cd/m2): 400 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 700 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 23 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 24 1.5.4 CV-112HC/P1101-E50 (N42) & CV-112HR/P1101-E50 (N42) Display Expansion • LCD Size: 12.1" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1024 x 768 • 1x SIM Socket • Brightness (cd/m2): 500 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 700 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 25 Operating System Protection • Windows® 10 • Reverse Power Input Protection • Linux: Supports by project • Over Voltage Protection - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 26 1.5.5 CV-112C/P1101-E50 (N42) & CV-112R/P1101-E50 (N42) Display Expansion • LCD Size: 12.1" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 800 x 600 • 1x SIM Socket • Brightness (cd/m2): 450 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 800 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 27 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 28 1.5.6 CV-115C/P1101-E50 (N42) & CV-115R/P1101-E50 (N42) Display Expansion • LCD Size: 15" (4:3) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1024 x 768 • 1x SIM Socket • Brightness (cd/m2): 350 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 800 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 29 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 30 1.5.7 CV-117C/P1101-E50 (N42) & CV-117R/P1101-E50 (N42) Display Expansion • LCD Size: 17" (5:4) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1280 x 1024 • 1x SIM Socket • Brightness (cd/m2): 350 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 800 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 31 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 32 1.5.8 CV-117G/P1101-E50 (N42) Display Expansion • LCD Size: 17" (5:4) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1280 x 1024 • 1x SIM Socket • Brightness (cd/m2): 350 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 800 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 33 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 34 1.5.9 CV-119C/P1101-E50 (N42) & CV-119R/P1101-E50 (N42) Display Expansion • LCD Size: 19" (5:4) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1280 x 1024 • 1x SIM Socket • Brightness (cd/m2): 350 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 1000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 35 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 36 1.5.10 CV-119G/P1101-E50 (N42) Display Expansion • LCD Size: 19" (5:4) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1280 x 1024 • 1x SIM Socket • Brightness (cd/m2): 350 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 1000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 37 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 38 1.5.11 CV-W115C/P1101-E50 (N42) & CV-W115R/P1101-E50 (N42) Display Expansion • LCD Size: 15.6" (16:9) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1366 x 768 • 1x SIM Socket • Brightness (cd/m2): 400 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 500 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 39 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 40 1.5.12 CV-W121C/P1101-E50 (N42) & CV-W121R/P1101-E50 (N42) Display Expansion • LCD Size: 21.5" (16:9) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1920 x 1080 • 1x SIM Socket • Brightness (cd/m2): 300 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 5000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 41 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 42 1.5.13 CV-W121G/P1101-E50 (N42) Display Expansion • LCD Size: 21.5" (16:9) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1920 x 1080 • 1x SIM Socket • Brightness (cd/m2): 300 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 5000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 43 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 44 1.5.14 CV-W124C/P1101-E50 (N42) & CV-W124R/P1101-E50 (N42) Display Expansion • LCD Size: 24" (16:9) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1920 x 1080 • 1x SIM Socket • Brightness (cd/m2): 300 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 5000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 45 Protection Operating System • Reverse Power Input Protection • Windows® 10 • Over Voltage Protection • Linux: Supports by project - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...
  • Page 46 1.5.15 CV-W124G/P1101-E50 (N42) Display Expansion • LCD Size: 24" (16:9) • 2x Full-size Mini-PCIe Socket • Max. Resolution: 1920 x 1080 • 1x SIM Socket • Brightness (cd/m2): 300 • Supports Control Function Module (CFM) Technology • Contrast Ratio: 5000 : 1 - Optional CFM IGN Module for Power Ignition •...
  • Page 47 Operating System Protection • Windows® 10 • Reverse Power Input Protection • Linux: Supports by project • Over Voltage Protection - Protection Range: 51~58V - Protection Type: shut down operating voltage, re- power on at the present level to recover •...

  • Page 48: System I/O

    1.6 System I/O 1.6.1 Front Power On/Off Switch SIM Card Slot Press to power-on or power-off the system Used to inserts a SIM card Antenna Hole IGN Switch Used to install an antenna jack Used to set up IGN function Power LED 12 /24V Switch Indicates the power status of the system...
  • Page 49 1.6.3 Side (Right) Reset Button Decrease Brightness Used to reset the system Press to decrease brightness of the screen Temperature LED LCD On/Off Indicates the temperature of the system Press to turn-on or turn-off the display Antenna Hole USB 3.0 port Used to install an antenna jack Used to connect USB 3.0/2.0/1.1 device Increase Brightness...
  • Page 50 1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) P1100 Series | User Manual CV-100/...
  • Page 51 Chapter 2 Switches & Connectors P1100 Series | User Manual CV-100/...

  • Page 52: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View P1100 Series | User Manual CV-100/...

  • Page 53: Bottom View

    2.1.2 Bottom View P1100 Series | User Manual CV-100/...

  • Page 54: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switches & Connectors Location Definition AT_ATX AT / ATX Power Mode Switch CLR_CMOS Clear CMOS Switch RESET1 Reset Button BL_UP1 Backlight Increase Button BL_UP2 Backlight Decrease Button BL_PWR1 Backlight Power On / Off Button USB3_1 / USB3_2 / USB 3.0 Ports USB3_3...

  • Page 55: Definition Of Switches

    2.3 Definition of Switches AT_ATX: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) CLR_CMOS: Clear CMOS Switch Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push...
  • Page 56 SW1: Super CAP SW / COM3~4 with Power Select Location Function DIP1 DIP2 Enabled ON (Default) Super Disabled Location Function DIP3 DIP4 0V (RI) ON (Default) ON (Default) COM3 Location Function DIP5 DIP6 0V (RI) ON (Default) ON (Default) COM4 SW2: COM1~2 with Power Select Location Function...

  • Page 57: Definition Of Connectors

    2.4 Definition of Connectors MINIPCIE1 : Mini PCI-Express Socket (Support SIM Card to Link feature) Pin Definition Definition Pin Definition WAKE# 37 RESERVED 3.3V 3.3V 38 USB_D+ 39 RESERVED PERST# 40 GND PERN0 (USB3RN0) / 41 3.3V SATARP0 1.5V 3.3V 42 NA PERP0 (USB3RP0) / CLKREQ#...
  • Page 58 MINIPCIE2 : Mini PCI-Express Socket (Support mSATA feature) Pin Definition Definition Pin Definition WAKE# 37 GND 3.3V 3.3V 38 USB_D+ 39 3.3V PERST# 40 GND PERN0 / SATARP0 41 3.3V 1.5V +3.3VAUX 42 NA CLKREQ# PERP0 / SATARN0 43 GND 44 NA 45 NA 10 NA...
  • Page 59 PWR_SW2: Remote Power On/Off Connector Definition PWR_SW Do not apply power to this connector! This port is used to connect a SWITCH! DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1x3 3-pin, 5.0mm pitch Definition +9~48V IN Ignition (IGN) Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system.
  • Page 60 COM1_1 / COM2_1 / COM3_1 / COM4_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA - DATA + POWER1/ POWER2: Power Connector Connector Type: 1x4 4-pin Wafer, 2.0mm pitch Pin 1 Definition +12V...

  • Page 61: Chapter 3 System Setup

    Chapter 3 System Setup P1100 Series | User Manual CV-100/...

  • Page 62: Removing The Top Cover

    3.1 Removing the Top Cover 1. Loosen the 8 screws of front and rear panel, then place them aside. 2. Remove the cover from the chassis. Place the top cover gently. P1100 Series | User Manual CV-100/...

  • Page 63: Installing So-Dimm Memory

    3.2 Installing SO-DIMM Memory 1. Locate the SO-DIMM sockets. 2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. P1100 Series | User Manual CV-100/...

  • Page 64: Installing Mini-Pcie Cards

    3.3 Installing Mini-PCIe Cards (Applicable for full or half size card) Locate the Mini PCIe slot. Insert the Mini-PCIe card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°...

  • Page 65: Installing Antennas

    If you have a Half-size Mini-PCIe card, make sure use extender to make it Full-size as shown below. 3.4 Installing Antennas 1. Remove the antenna hole covers at front panel. 2. Have antenna jack penetrate through the hole. P1100 Series | User Manual CV-100/...
  • Page 66 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. P1100 Series | User Manual CV-100/...

  • Page 67: Installing Cpu Thermal Pad

    3.5 Installing CPU Thermal Pad 1. Place the thermal pad on the CPU heatsink. thermal pad Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! P1100 Series | User Manual CV-100/...

  • Page 68: Assembling The System

    3.6 Assembling the System 1. Put on the cover. 2. Fasten the 8 screws to fix the cover. P1100 Series | User Manual CV-100/...

  • Page 69: Installing A Sata Hard Drive

    3.7 Installing a SATA Hard Drive 1. Loosen 2 screws on front panel to remove cover plate. 2. Turn over the unit to have the bottom side face up and loosen 1 screw. 3. Pull out the HDD bracket. P1100 Series | User Manual CV-100/...
  • Page 70 4. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly.

  • Page 71: Installing A Sim Card

    3.8 Installing a SIM Card 1. Loosen 2 screws on front panel to remove cover plate. 2. SIM card slot is at the front panel of the system. 3. Insert the SIM card. P1100 Series | User Manual CV-100/...

  • Page 72: Connecting With Cv Display Module

    3.9 Connecting with CV Display Module 1. Locate the module connector slot. 2. Turn over the unit to have the bottom side face up, loosen the 2 screws of the module connector bracket. The photos show the male connector (on display module) and female connector (on PC module) P1100 Series | User Manual CV-100/...
  • Page 73 3. Connect the module. 4. Fasten the 6 screws to fix the PC module on the display module. P1100 Series | User Manual CV-100/...

  • Page 74: Vesa Mount Bracket

    3.10 VESA Mount Bracket The following picture indicates VESA mounting hole pattern on P1100 series, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P1100 series +CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.

  • Page 75: Panel Mount

    3.11 Panel Mount 1. Accessories provided by Cincoze are as follows. P1100 Series | User Manual CV-100/...
  • Page 76 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. P1100 Series | User Manual CV-100/...
  • Page 77 P1100 Series | User Manual CV-100/...
  • Page 78 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. P1100 Series | User Manual CV-100/...

  • Page 79: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup P1100 Series | User Manual CV-100/...

  • Page 80: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 81: Main Setup

    4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date.

  • Page 82: Advanced Setup

    4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 ACPI Settings ■ Enable ACPI Auto Configuration [Disabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration.

  • Page 83: F81866 Super Io Configuration

    ■ ACPI Sleep State [S3 (Suspend to RAM)] Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. ■...

  • Page 84: Hardware Monitor

    ❑ Serial Port [Enabled] Enables or disables serial port. ❑ Change Settings [Auto] Allows you to change the IO Address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1~6 Mode [RS232] Allows you to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■...

  • Page 85: S5 Rtc Wake Settings

    4.3.4 S5 RTC Wake Settings ■ Wake system from S5 [Disabled] Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. 4.3.5 Serial Port Console Redirection ■...

  • Page 86: Cpu Configuration

    4.3.6 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores [Enabled] Number of cores to enable in each processor package. ■ Intel Virtualization Technology [Enabled] Enables or disables Intel Virtualization Technology. Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions.

  • Page 87: Csm Configuration

    ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.8 CSM Configuration This option controls legacy/UEFI ROMs priority. ■ CSM Support [Disabled] Enables or disables compatibility support module. ■ Boot option filter [UEFI and Legacy] Allows you to select which type of operating system to boot. [UEFI and Legacy]: Allows booting from operating systems that support legacy option ROM or UEFI option ROM.

  • Page 88: Usb Configuration

    [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. 4.3.9 USB Configuration ■ Legacy USB Support [Enabled] This item allows you to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected.

  • Page 89: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options. P1100 Series | User Manual CV-100/...

  • Page 90: South Bridge

    4.4.2 South Bridge ■ OS Selection [Windows] Allows you to configure Operating System version to install. Configuration options: [Windows] [Intel Linux] ■ Mini PCIE2/mSATA Switch [Mini PCIE] Allows you to change Mini PCIE2 as [Mini PCIE] or [mSATA]. ■ Amplifier Function [Enabled] Enables or disables Amplifier Function.

  • Page 91: South Cluster Configuration

    4.4.3 South Cluster Configuration ■ PCI Express Configuration PCI Express Root Port 5 (MiniPcie2) ❑ PCI Express Root Port 5 (MiniPcie2) [Enabled] Enables or disables PCI Express Root Port. ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2].
  • Page 92 ❑ PCIe Speed [Auto] Allows you to select PCI Express port speed. Configuration options: [Auto] [Gen1] [Gen2]. ■ SATA Devices SATA Port 0 ❑ Port 0 [Enabled] Enables or disables SATA Port 0. SATA Port 1 Port 1 [Enabled] ❑ Enables or disables SATA Port 1.
  • Page 93 ❑ Restore AC Power Loss [Last state] Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Last state]: Enters to the last power state before a power failure sables.

  • Page 94: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. P1100 Series | User Manual CV-100/...

  • Page 95: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. ■ Bootup NumLock State Allows you to set NumLock key to [On] or [Off] state when system boots up. ■ Quiet Boot Allows you to enable or disable Quiet Boot function. ■...

  • Page 96: Save & Exit

    4.7 Save & Exit ■ Save Changes and Reset This item allows you to reset the system after saving changes. ■ Discard Changes and Reset This item allows you to reset system setup without saving any changes. ■ Restore Defaults This item allows you to restore/ load default values for all the setup options.

  • Page 97: Chapter 5 Product Application (For Cmi-Dio100 Only)

    Chapter 5 Product Application P1100 Series | User Manual CV-100/...

  • Page 98: Digital I/O (Dio) Application

    This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O of Cincoze P1101 series product Item Standard GPIO74 (Pin107)
  • Page 99 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. P1100 Series | User Manual CV-100/...
  • Page 100 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 101 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output Mode Selection>...
  • Page 102 5.1.1.5 Change base address - DIO base address (Cincoze default 0xA00) <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...
  • Page 103 5.1.1.6 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 = DI1 = DO1 0 0 0 1 - - - - value - - - - 0 0 0 1 value 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0...

  • Page 104: Digital I/O (Dio) Hardware Specification

    5.2 Digital I/O (DIO) Hardware Specification XCOM+: Isolated power in V+ ⚫ XCOM-: Isolated power in V- ⚫ Isolated power in DC voltage: 9~30V ⚫ 4x Digital Input (Source Type) ⚫ Input Signal Voltage Level ⚫ Signal Logic 0: XCOM+ = 9V, Signal Low <...
  • Page 105 P1100 Series | User Manual CV-100/...
  • Page 106 Chapter 6 Optional Modules and Accessories Pin Definitions and Settings P1100 Series | User Manual CV-100/...
  • Page 107 6.1 Location of the Connectors and Switches Model No. Description CFM Module with Power Ignition Sensing Control Function, CFM-IGN101 12V/24V Selectable CFM-PoE02 CFM Module with PoE Control Function, Individual Port 25.5W 6.2 Installing a CFM-IGN Module 1. Locate the IGN connector on system motherboard as indicated. 2.
  • Page 108 3. Loosen 2 screws on front panel to remove cover plate. 4. IGN function switch is at the front panel of the system. SW2: IGN Function Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition...
  • Page 109 6.3 Installing a CFM-PoE Module 1. Locate the PoE connector on system motherboard as indicated. 2. Insert the female connector of CFM-PoE module to the male connector on system motherboard. 3. Turn over the heatsink and paste the thermal pad onto the marked by red squares. Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! P1100 Series | User Manual...
  • Page 110 4. Paste the heatsink onto the CFM-PoE module carefully and fasten 2 screws to fix it. 5. Paste the thermal pads onto the heatsink and coil carefully. Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! 6.
  • Page 111 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
