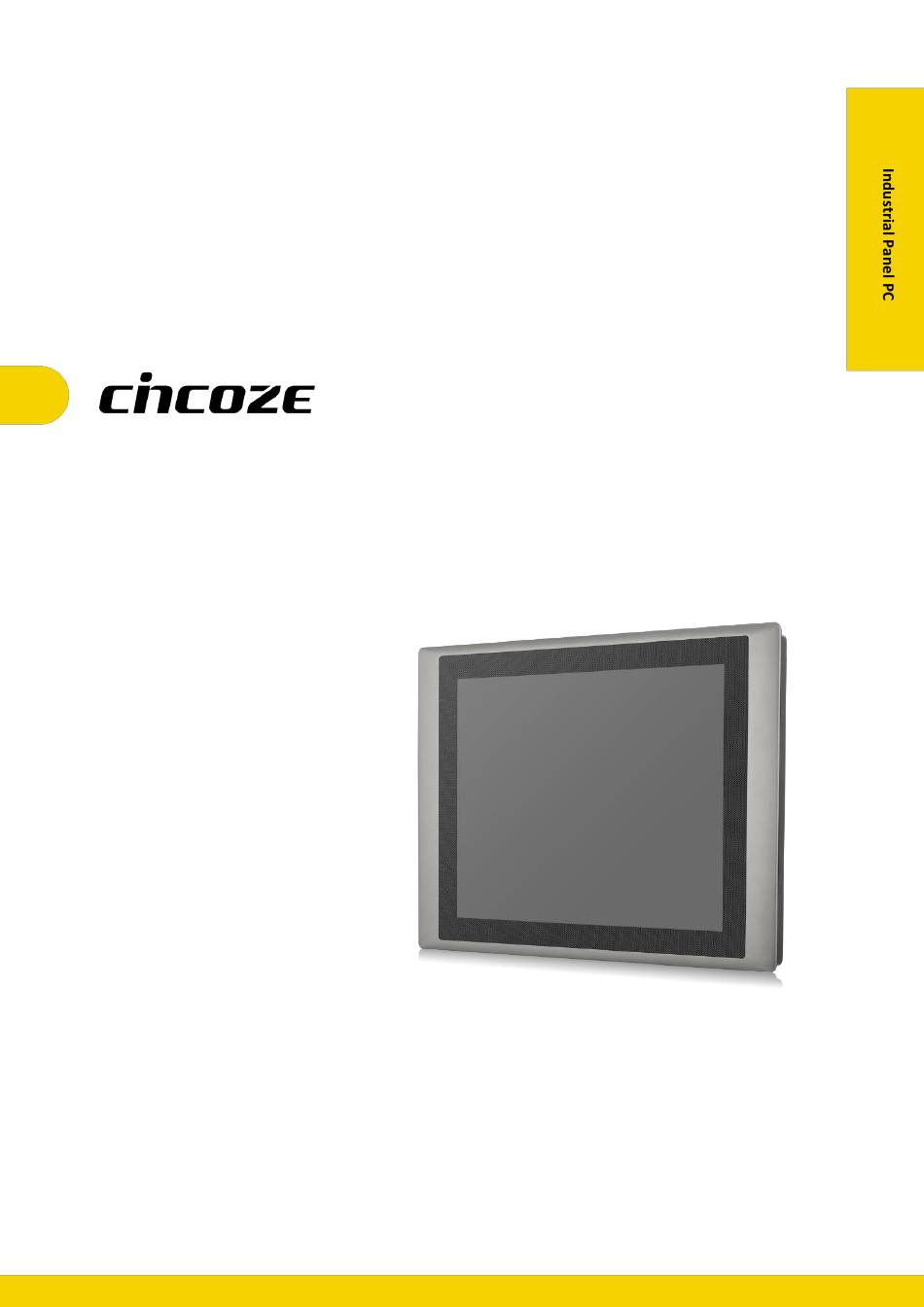

CV-100/P2102 Series
User Manual
Industrial Panel PC
High Performance Modular Panel PC
Version: V1.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-W115FH/P2102 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CV-W115FH/P2102 Series

Summary of Contents for Cincoze CV-W115FH/P2102 Series

  • Page 1 CV-100/P2102 Series User Manual Industrial Panel PC High Performance Modular Panel PC Version: V1.12...

  • Page 2: Table Of Contents

    1.4 Hardware Specification ......................20 1.4.1 CV-112H/P2102 Series ....................20 1.4.2 CV-115/P2102 Series....................25 1.4.3 CV-W115/P2102 Series ....................30 1.4.4 CV-W115FH/P2102 Series ................... 35 1.4.5 CV-117/P2102 Series....................40 1.4.6 CV-119/P2102 Series....................45 1.4.7 CV-W121/P2102 Series ....................50 1.4.8 CV-W124/P2102 Series ....................55 1.5 System I/O ..........................
  • Page 3 Chapter 3 System Setup ........................73 3.1 Removing Top Cover....................... 74 3.2 Installing Half Size Mini PCIe Card ..................75 3.3 Installing Full Size Mini PCIe Card ..................76 3.4 Installing M.2 E Key Card ......................77 3.5 Installing Antenna(s) ......................78 3.6 Installing SO-DIMM Memory ....................
  • Page 4 5.1.1 Digital I/O Programming Guide ................. 120 5.2 P2102 Digital I/O (DIO) Hardware Specification ..............127 5.2.1 P2102 DIO Connector Definition ................128 Chapter 6 Optional Modules & Accessories ..................130 6.1 Pin Definition and Settings of IGN Module ................131 6.2 Installing CFM-IGN Module ....................

  • Page 5: Preface

    2025/03/31 Copyright Notice © 2020 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Safety Precautions

    This indication alerts operators to an operation that, if not strictly observed, may result in severe injury. (Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement observée, peut entraîner des blessures graves.) This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.
  • Page 9 qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫ The power cord or plug is damaged. ⚫ Liquid has penetrated into the equipment. ⚫ The equipment has been exposed to moisture. ⚫...

  • Page 10: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Panel PC Thermal Pad (for CPU Thermal Block) Power Terminal Block Connector Remote Power On/Off Terminal Block Connector DIO Terminal Block Connector Screws Pack PCI / PCIe Card Installation Kit (For CV-100/P2102E Only)
  • Page 11 12.1” XGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-112HC/P2102E-i3 Core i3-8145UE Dual Core Processor and P-Cap. Touch 15" XGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE CV-115R/P2102-i5 Quad Core Processor and Resistive Touch 15”...
  • Page 12 15.6" WXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE CV-W115C/P2102-i5 Quad Core Processor and P-Cap. Touch 15.6” WXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-W115C/P2102E-i5 Core i5-8365UE Quad Core Processor and P-Cap. Touch 15.6"...
  • Page 13 17” SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-117R/P2102E-i5 Core i5-8365UE Quad Core Processor and Resistive Touch 17" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE CV-117C/P2102-i5 Quad Core Processor and P-Cap. Touch 17”...
  • Page 14 19" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE CV-119G/P2102-i5 Quad Core Processor and Glass Only 19” SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-119G/P2102E-i5 Core i5-8365UE Quad Core Processor and Glass Only 19"...
  • Page 15 21.5" Full HD TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-W121R/P2102E-i3 Core i3-8145UE Dual Core Processor and Resistive Touch 21.5" Full HD TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE CV-W121C/P2102-i3 Dual Core Processor and P-Cap. Touch 21.5"...
  • Page 16 24" Full HD TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE CV-W124G/P2102-i3 Dual Core Processor and Glass Only 24" Full HD TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel CV-W124G/P2102E-i3 Core i3-8145UE Dual Core Processor and Glass Only CV-100-P2102 Series | User Manual...

  • Page 17: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CV-100-P2102 Series | User Manual...

  • Page 18: Overview

    Patented CDS Technology Thanks to Cincoze patented Convertible Display System (CDS) technology, the CV-100/P2102 series not only makes maintenance easier but also provides upgradability whenever requested. CV-100-P2102 Series | User Manual...

  • Page 19: Key Features

    1.3 Key Features ⚫ 12.1” ~ 24” TFT LCD with Resistive / P-CAP / P-CAP (AG) ⚫ Onboard 8th Generation Intel® Core™ U Series Processor ⚫ 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB ⚫ Supports Triple Independent Display ⚫...

  • Page 20: Hardware Specification

    1.4 Hardware Specification 1.4.1 CV-112H/P2102 Series Model Name CV-112HR CV-112HC Display • 12.1" (4:3) LCD Size • Max. Resolution 1024 x 768 • 500 Brightness (cd/m2) • Contrast Ratio 700 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.24 (H) x 0.24 (V) •...
  • Page 21 • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel®...
  • Page 22 Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card PCI Express * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 23 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 24 Dimensions CV-112H/P2102 unit: mm CV-112H/P2102E unit:mm CV-100-P2102 Series | User Manual...

  • Page 25: Cv-115/P2102 Series

    1.4.2 CV-115/P2102 Series Model Name CV-115R CV-115C CV-115C-AG Display • 15" (4:3) LCD Size • Max. Resolution 1024 x 768 • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.297 (H) x 0.297 (V) •...
  • Page 26 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel®...
  • Page 27 Optional Riser Card * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket • 1 x Front Accessible SIM Socket SIM Socket •...
  • Page 28 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 29 Dimensions CV-115/P2102 unit: mm CV-115/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 30: Cv-W115/P2102 Series

    1.4.3 CV-W115/P2102 Series Model Name CV-W115R CV-W115C Display • 15.6" (16:9) LCD Size • Max. Resolution 1366 x 768(WXGA) • 400 Brightness (cd/m2) • Contrast Ratio 500 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.252 (H) x 0.252 (V) •...
  • Page 31 • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W •...
  • Page 32 * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket • 1 x Front Accessible SIM Socket SIM Socket •...
  • Page 33 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 34 Dimensions CV-W115/P2102 unit: mm CV-W115/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 35: Cv-W115Fh/P2102 Series

    1.4.4 CV-W115FH/P2102 Series Model Name CV-W115FHR CV-W115FHC Display • 15.6" (16:9) LCD Size • Max. Resolution 1920 x 1080 (Full HD) • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.17925 (H) x 0.17925 (V) •...
  • Page 36 • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W •...
  • Page 37 * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket • 1 x Front Accessible SIM Socket SIM Socket •...
  • Page 38 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 39 Dimensions CV-W115FH/P2102 unit: mm CV-W115FH/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 40: Cv-117/P2102 Series

    1.4.5 CV-117/P2102 Series Model Name CV-117R CV-117C CV-117G Display • 17" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.264 (H) x 0.264 (V) •...
  • Page 41 • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel®...
  • Page 42 • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card PCI Express * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket •...
  • Page 43 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 44 Dimensions CV-117/P2102 unit: mm CV-117/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 45: Cv-119/P2102 Series

    1.4.6 CV-119/P2102 Series Model Name CV-119R CV-119C CV-119G Display • 19" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness (cd/m2) • Contrast Ratio 1000 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.294 (H) x 0.294 (V) •...
  • Page 46 • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W •...
  • Page 47 * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket • 1 x Front Accessible SIM Socket SIM Socket •...
  • Page 48 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 49 Dimensions CV-119/P2102 unit: mm CV-119/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 50: Cv-W121/P2102 Series

    1.4.7 CV-W121/P2102 Series Model Name CV-W121R CV-W121C CV-W121G Display • 21.5" (16:9) LCD Size • Max. Resolution 1920 x 1080 • 350 Brightness (cd/m2) • Contrast Ratio 5000 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.24825 (H) x 0.24825 (V) •...
  • Page 51 • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name P2102 P2102E System • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) Processor - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W •...
  • Page 52 * Support maximum dimension of add-on card (H x L): 111mm x 169mm • 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module M.2 E Key Socket • 1 x Front Accessible SIM Socket SIM Socket •...
  • Page 53 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 54 Dimensions CV-W121/P2102 unit: mm CV-W121/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 55: Cv-W124/P2102 Series

    1.4.8 CV-W124/P2102 Series Model Name CV-W124R CV-W124C CV-W124G Display • 24" (16:9) LCD Size • Max. Resolution 1920 x 1080 • 350 Brightness (cd/m2) • Contrast Ratio 5000 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.27675 (H) x 0.27675 (V) •...
  • Page 56 • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V •...
  • Page 57 Storage • 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 SSD/HDD Expansion • 2x Full-size Mini-PCIe Sockets Mini PCI Express • 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card PCI Express * Support maximum dimension of add-on card (H x L): 111mm x 169mm •...
  • Page 58 Safety • EN45545-2 Fire Protection * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100-P2102 Series | User Manual...
  • Page 59 Dimensions CV-W124/P2102 unit: mm CV-W124/P2102E unit: mm CV-100-P2102 Series | User Manual...

  • Page 60: System I/O

    1.5 System I/O 1.5.1 Front Antenna Hole Clear CMOS Used to connect an antenna for optional wireless Used to clear CMOS to reset BIOS module Removable HDD SIM Card Used to insert a 2.5” SATA HDD/SSD Used to insert a SIM card Power LED IGN Switch Indicates the power status of the system...

  • Page 61: Rear

    1.5.2 Rear DC IN Display Port Used to plug a DC power input with terminal block Used to connect a monitor with DisplayPort interface Digital I/O Terminal Block Used to connect to a monitor with analog signal The Digital I/O terminal block supports 16 isolated interface DIO (8 digital input and 8 digital output) Remote Power On/Off Terminal Block...

  • Page 62: Left

    1.5.3 Left Antenna Hole COM Port Used to connect an antenna for optional wireless Used to connect to RS-232/422/485 serial devices module USB 2.0 Used to connect to USB 2.0/1.1 compatible devices CV-100/P2102 CV-100/P2102E 1.5.4 Right COM Port OSD Function (For CDS Display Module) Used to connect to RS-232/422/485 serial devices LCD On/Off...

  • Page 63: Chapter 2 Switches & Connectors

    Chapter 2 Switches & Connectors CV-100-P2102 Series | User Manual...

  • Page 64: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View CV-100-P2102 Series | User Manual...

  • Page 65: Switches And Connectors Definition

    2.2 Switches and Connectors Definition List of Switch Location Definition AT_ATX1 AT / ATX Power Mode Switch BL_PWR1 Backlight Power on / off switching BL_UP1 Backlight Increase BL_DN1 Backlight Decrease LED1 HDD / Power Access LED Status PWR_SW2 Power button RTC2 Clear COMS Switch Reset1...

  • Page 66: Definition Of Switches

    2.3 Definition of Switches AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Left) AT Power Mode 2-3 (Right) ATX Power Mode (Default) BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push...
  • Page 67 RTC2：Clear CMOS Switch Switch Definition 1-2 (Left) No Operation (Default) 2-3 (Right) Clear CMOS RESET1: Reset Switch Switch Definition Push Reset System SW1: COM1~4 with Power Select Switch Location Function DIP1 DIP2 ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 ON (Default) ON (Default)

  • Page 68: Definition Of Connectors

    SW2: Super CAP Switch Location Function DIP1 DIP2 Super CAP Enabled ON (Default) ON (Default) Super CAP Disabled 2.4 Definition of Connectors COM1 / COM2 / COM3/ COM4: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition...
  • Page 69 CN1： Mini PCI-Express Socket (Support mPCIE & SIM Module & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0(USB3TN0)/SATATN0 1.5V SMB_DATA CLKREQ# PETP0(USB3TP0)/SATATP0 SIM_VCC SIM_DATA USB_D- REFCLK- RESERVED SIM_CLK USB_D+ REFCLK+ RESERVED SIM_Reset 3.3V SIM_VPP 3.3V PERST# +1.5V PERN0(USB3RN0)/SATARP0 3.3V PERP0(USB3RP0)/SATARN0 +3.3V CV-100-P2102 Series | User Manual...
  • Page 70 CN2： Mini PCI-Express Socket (Support mPCIE & USB) Definition Definition WAKE# 3.3V +1.5V SMB_CLK PETN0/SATATN0 1.5V SMB_DATA CLKREQ# PETP0/SATATP0 USB_D- REFCLK- USB_D+ REFCLK+ 3.3V 3.3V 3.3V PERST# +1.5V PERN0/SATARP0 +3.3VAUX PERP0/SATARN0 +3.3V CV-100-P2102 Series | User Manual...
  • Page 71 CN3： M.2 Key E Socket (Support M.2 PCIE / Intel CNVi ) Definition Definition Definition +3.3V PULL-UP USB_D+ PEWAKE0# +3.3V USB_D- RGI_DT I2C_DATA WTD1N/PETP1 PCM_CLK RGI_RSP I2C_CLK WGR_D1N PETP0 WTD1P/PETN1 RBI_DT PCM_SYNC/LPCRSTN WGR_D1N PETN0 PCM_IN CLINK_REST REF_CLK WTD0N/PETP1 PCM_OUT CLINK_DATA WGR_D0N PERP0 WTD0P/PERN1...
  • Page 72 DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. LAN1 / LAN2 LED： LAN1 / 2 LED Status Definition LAN LED Status Definition...

  • Page 73: Chapter 3 System Setup

    Chapter 3 System Setup CV-100-P2102 Series | User Manual...

  • Page 74: Removing Top Cover

    This chapter takes P2102 as an example to demonstrate the installation of hardware components, except for chapter 3.7. 3.1 Removing Top Cover In order to prevent electric shock or system damage, must turn off power and disconnect the unit from power source before removing the chassis cover. (Afin d'éviter tout risque d'électrocution ou d'endommagement du système, vous devez couper l'alimentation et débrancher l'appareil de la source d'alimentation avant de retirer le couvercle du châssis.)

  • Page 75: Installing Half Size Mini Pcie Card

    3.2 Installing Half Size Mini PCIe Card Locate the Mini PCIe socket on the system board. Use two screws provided on adapter bracket to fasten the card and bracket together. Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly.

  • Page 76: Installing Full Size Mini Pcie Card

    Press down the card and secure it with two screws. 3.3 Installing Full Size Mini PCIe Card 1. Locate the Mini PCIe slot on the system board. 2. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 77: Installing M.2 E Key Card

    3. Press the card down and secure it with 2 screws. 3.4 Installing M.2 E Key Card 1. Locate the M.2 E Key slot on the system board. 2. Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly.

  • Page 78: Installing Antenna(S)

    3. Press the card down and secure it with 1 screw. 3.5 Installing Antenna(s) 1. Remove the antenna rubber cover on front, left or right panel. 2. Penetrate the antenna jack through the hole. CV-100-P2102 Series | User Manual...
  • Page 79 3. Put on the washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. Attach the RF connector at another end of the cable onto the card. CV-100-P2102 Series | User Manual...

  • Page 80: Installing So-Dimm Memory

    3.6 Installing SO-DIMM Memory 1. Locate the SO-DIMM socket on the system board. 2. Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 3. Press down the memory module until retaining clips snap back in place. CV-100-P2102 Series | User Manual...

  • Page 81: Installing Pci(E) Card

    4. For the upper SO-DIMM socket, please follow the same steps described earlier to install. 3.7 Installing PCI(e) Card This chapter takes P2102E for example to demonstrate the installation steps. 1. Loosen the two screws as indicated at rear panel. 2.
  • Page 82 3. Loosen the screw as indicated to remove the PCI bracket. 4. Align the notch of golden fingers of Riser card(Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. 5.
  • Page 83 6. Fasten the screw back to secure the PCI(e) expansion card. 7. Locate the retention module of PCI(e) expansion card. 8. Loosen the two screw as indicated to have the clamp arm slidable. CV-100-P2102 Series | User Manual...
  • Page 84 9. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. 10. Finally, fasten the two screws that were previously loosen halfway to fix the retention module. CV-100-P2102 Series | User Manual...

  • Page 85: Installing Thermal Pad Of Thermal Block

    3.8 Installing Thermal Pad of Thermal Block 1. Place thermal pad on the top of CPU thermal block in order to provide a seamless contact with the body of chassis to create an efficient heat dissipation. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! 3.9 Installing Top Cover 1.

  • Page 86: Installing Sata Hard Drive At Front Panel

    2. Fasten the eight screws at front and rear panel to secure the top cover. 3.10 Installing SATA Hard Drive at Front Panel 1. Turn over the system to bottom side, and remove the screw. 2. Loosen the screw to remove the HDD bay cover bracket. CV-100-P2102 Series | User Manual...
  • Page 87 3. Pull the rotating arm of HDD bracket outward as indicated. 4. Hold the rotating arm to pull out the HDD bracket. CV-100-P2102 Series | User Manual...
  • Page 88 5. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket. 6. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket and push it until the edge connector of HDD fully inserted into SATA slot. 7.

  • Page 89: Installing Sata Hard Drive On Bottom Side

    8. Fasten the screw to secure the HDD bracket on the system chassis. 3.11 Installing SATA hard drive on Bottom Side 1. Turn over the system to bottom side. Locate the cover of HDD compartment. CV-100-P2102 Series | User Manual...
  • Page 90 2. Loosen the two screws, lift the cover, and then remove it. 3. Loosen three screws and take the HDD bracket out of HDD compartment. 4. Place the HDD bracket on screw-hole side of HDD. Use four screws provided to assemble HDD on the bracket.
  • Page 91 5. Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. 6. Secure the HDD bracket with three screws. 7. Put back the cover and fasten the two screws. CV-100-P2102 Series | User Manual...

  • Page 92: Installing Sim Card

    3.12 Installing SIM Card 1. Loosen the screw to remove the Maintenance cover bracket. 2. Locate the SIM card slot. 3. Insert the SIM card. CV-100-P2102 Series | User Manual...

  • Page 93: Connecting With Cv Display Module

    3.13 Connecting with CV Display Module 1. Prepare the mounting kit that accompanied with P2102 as shown below. (including two mounting brackets and one screw pack) 2. Remove the six screws at left and right panel. 3. Assemble two mounting brackets by fastening six screws from the screws pack. CV-100-P2102 Series | User Manual...
  • Page 94 4. Turn over the system to bottom side. Locate the connector cover of display module. 5. Loosen two screws to remove the cover. The following photos indicates the male connector (on display module) and female connector (on P2102). CV-100-P2102 Series | User Manual...
  • Page 95 6. Place the P2102 on the display module through its display connector hole as indicated. 7. Align the mounting holes of P2102 with the screw holes of display module underneath. Then slide the PC2100 carefully as indicated to have P2102 and display module connected together. 8.

  • Page 96: Installing Panel Mount

    3.14 Installing Panel Mount 1. Accessories provided by Cincoze are as below. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) CV-100-P2102 Series | User Manual...
  • Page 97 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CV-100-P2102 Series | User Manual...
  • Page 98 CV-100-P2102 Series | User Manual...
  • Page 99 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CV-100-P2102 Series | User Manual...

  • Page 100: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CV-100-P2102 Series | User Manual...

  • Page 101: Bios Introduction

    4.1 BIOS Introduction The BIOS (Basic Input/ Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self-test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 102: Advanced Setup

    Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time.

  • Page 103: Cpu Configuration

    4.3.1 CPU Configuration ■ Intel® Virtualization Technology [Enabled] Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. ■...

  • Page 104: Trusted Computing

    ■ Intel AMT [Enabled] Allows you to enable or disable Intel® Active Management Technology BIOS execution. ■ Firmware Update Configuration ❑ ME FW Image Re-Flash [Disabled] Allows you to enable or disable ME firmware image re-flash function. 4.3.3 Trusted Computing CV-100-P2102 Series | User Manual...

  • Page 105: Acpi Settings

    ■ Security Device Support [Disable] Allow you to enables or disables Security Device Support function. 4.3.4 ACPI Settings This item allows users to configure ACPI settings. ■ Enable ACPI Auto Configuration [Enabled] Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration. ■...

  • Page 106: F81866 Super Io Configuration

    [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.5 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option. ■...

  • Page 107: Hardware Monitor

    This item allows users to change the address & IRQ settings of the specified serial port. ❑ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■...

  • Page 108: Serial Port Console Redirection

    ■ Wake System from S5 [Disabled] This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.8 Serial Port Console Redirection ■...

  • Page 109: Csm Configuration

    ■ Legacy USB Support [Enabled] This item allows users to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected. ■ XHCI Hand-off [Enabled] This item allows users to enable or disable XHCI (USB3.2) hand-off function. ■...

  • Page 110: Nvme Configuration

    This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.3.11 NVMe Configuration The screen allows users to select options for the NVMe configuration, and change the value of the selected option.

  • Page 111: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ■ Memory Configuration This item displays detailed memory information in the system. CV-100-P2102 Series | User Manual...

  • Page 112: Primary Display [Auto]

    ■ Graphics Configuration ❑ Primary Display [Auto] Allows users to select which graphics device should be primary display or select SG for switchable graphics. Configuration options: [Auto] [IGFX] [PEG] [PCIe] [SG] ❑ Internal Graphics [Auto] This item allows users to enable or disable Internal Graphics. When set to [Auto], it will detect by BIOS.
  • Page 113 ■ PCI Express Configuration ❑ PCI Express Root Port (CN1 mPCIe) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑...
  • Page 114 ■ SATA Configuration ❑ SATA Controller(s) [Enabled] Enables or disables Serial ATA controller. ❑ SATA Mode [AHCI] This item allows users to choose [AHCI] or [RAID] mode. ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑...
  • Page 115 ❑ HD Audio [Enabled] Allows you to select HD Audio options. [Enabled]: HD Audio device is unconditionally enabled. [Disabled]: HD Audio device is unconditionally disabled. ■ LAN i219LM Controller [Enabled] Enables or disables i219LM LAN Controller. ■ Wake On LAN (i219) [Enabled] Enables or disables integrated LAN i219LM Wake On LAN function.

  • Page 116: Security Setup

    4.5 Security Setup This section allows users to configure BIOS security settings. ◼ Administrator Password Administrator Password controls access to the BIOS Setup utility. ◼ User Password User Password controls access to the system at boot and to the BIOS Setup utility. ◼...

  • Page 117: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. ◼ Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. ◼ Bootup NumLock State [Off] Allows you to select the power-on state for keyboard NumLock. ◼...

  • Page 118: Save & Exit

    4.7 Save & Exit ◼ Save Changes and Exit This item allows you to exit system setup after saving changes. ◼ Discard Changes and Exit This item allows you to exit system setup without saving changes. ◼ Save Changes and Reset This item allows you to reset the system after saving changes.

  • Page 119: Chapter 5 Product Application

    Chapter 5 Product Application CV-100-P2102 Series | User Manual...

  • Page 120: Digital I/O (Dio) Application

    5.1 Digital I/O (DIO) application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O Item Standard GPIO70 (Pin103) GPIO71 (Pin104)
  • Page 121 To program the Super I/O chip F81866A configuration registers, the following configuration procedures must be followed in sequence: (1) Enter the Extended Function Mode (2) Configure the configuration registers (3) Exit the Extended Function Mode The configuration register is used to control the behavior of the corresponding devices. To configure the register, use the index port to select the index and then write data port to alter the parameters.
  • Page 122 CV-100-P2102 Series | User Manual...
  • Page 123 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP70 to GP77 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 124 5.1.1.4.2 Control of GP80 to GP87 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(DataPort, 0x06) // Select logic device 06h <Output/Input Mode Selection>...
  • Page 125 // Select configuration register 60h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x03)) WriteByte(AddrPort, 0x61) // Select configuration register 61h WriteByte(DataPort, (ReadByte(DataPort) ǀ 0x20)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h CV-100-P2102 Series | User Manual...
  • Page 126 5.1.1.6 DATA Bit Table (DIO) = DI1 = DO1 = DI2 = DO2 = DI3 = DO3 = DI4 = DO4 = DI5 = DO5 = DI6 = DO6 = DI7 = DO7 = DI8 = DO8 5.1.1.7 DIO I/O Port Address CV-100-P2102 Series | User Manual...

  • Page 127: P2102 Digital I/O (Dio) Hardware Specification

    5.2 P2102 Digital I/O (DIO) Hardware Specification • XCOM+ / 2XCOM+ : Isolated power in V+ • XCOM- / 2XCOM- : Isolated power in V- • Isolated power in DC voltage : 9~30V • 8x / 16x Digital Input (Source Type) •...

  • Page 128: P2102 Dio Connector Definition

    5.2.1 P2102 DIO Connector Definition DIO-1/DIO-2 : Digital Output / Input Connector Connector Type: Terminal Block 2X10 10-pin, 3.5mm pitch DIO-1 (Out) DIO-2 (In) Location Definition Location Definition DC INPUT DC INPUT DIO-1 DIO-2 CV-100-P2102 Series | User Manual...
  • Page 129 Reference Input Circuit Reference Output Circuit CV-100-P2102 Series | User Manual...

  • Page 130: Chapter 6 Optional Modules & Accessories

    Chapter 6 Optional Modules & Accessories CV-100-P2102 Series | User Manual...

  • Page 131: Pin Definition And Settings Of Ign Module

    6.1 Pin Definition and Settings of IGN Module SW2 on CFM-IGN101: IGN Module Timing Setting Switch Set shutdown delay timer when ACC is turned off Pin 1 Pin 2 Pin 3 Pin 4 Definition 0 second 1 minute 5 minutes ON (IGN enabled) 10 minutes 30 minutes...

  • Page 132: Installing Cfm-Ign Module

    6.2 Installing CFM-IGN Module This chapter takes CFM-IGN101 module for example. Locate the power Ignition connector on system motherboard as indicated. Insert the female connector of power ignition board to the male connector on system motherboard. CV-100-P2102 Series | User Manual...

  • Page 133: Installing Cfm-Poe Module

    Fasten two screws to secure the power ignition board. 6.3 Installing CFM-PoE Module This chapter takes CFM-PoE04 module for example. 1. Place a thermal pad on the top of the heatsink, and locate the two regions as marked. 2. Turn over the heatsink and paste the thermal pad at the marked region. Before putting on the thermal block, please make sure the protective film on the Thermal Pad has been removed! CV-100-P2102 Series | User Manual...
  • Page 134 3. Paste the thermal pad onto the coil of the CFM-PoE module. Locate the PoE connector on system motherboard as indicated. Insert the female connector of PoE daughter board to the male connector on system motherboard. CV-100-P2102 Series | User Manual...
  • Page 135 Put on the PoE thermal block and fasten two screws to secure the PoE board. Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! CV-100-P2102 Series | User Manual...

  • Page 136: Installing Vesa Mount

    6.4 Installing VESA Mount The following picture indicates VESA mounting hole pattern on P2102, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (P2102+CV/CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.

  • Page 137: Installing Rack Mount

    6.5 Installing Rack Mount 1. Locate the screw holes on the PC or monitor module. Then fasten 8 screws (M4x6) as indicated to fix it on the rack mount base. 2. Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4”...
  • Page 138 For 19” ~ 24” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P2102 / P2102E/P2202/P2202E/P2302/P2302E Left Side Right Side Bottom Side 3. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side.
  • Page 139 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Cv-112h/p2102 seriesCv-115/p2102 seriesCv-w115/p2102 seriesCv-100/p2102 seriesCv-117/p2102 seriesCv-119/p2102 series ... Show all

Table of Contents
