- Page 1 M1000 Series User Manual Convertible Display Monitor Module M1000 Series Version: V1.31...
-
Page 2: Table Of Contents
Contents Preface Revision……………………………………………..……………….……………...……………...03 Copyright Notice.…………………………………………………………………………………...03 Acknowledgement.………………………………………………………………......03 Disclaimer.………………………………………………………………….………………...03 Declaration of Conformity.………………………………………………….……………………03 Product Warranty Statement …………………………………………………………….....04 Technical Support and Assistance.…………………………………………….…………………05 Conventions Used in this Manual …………………………………………….…………....06 Safety Precaution …...……………………………………………….………….………....06 Package Contents ………………………………………………………….…….………...……08 Ordering Information …………………………………...…………………….…….……...……...08 Optional Modules & Accessories……………………………………........08 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....10 1.2 Product Pictures……...……………………………………….……………………....10 1.3 Key Features….……..……………..……………………….……...………………..……11... -
Page 3: Revision
2020/10/22 Copyright Notice © 2015 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 4: Product Warranty Statement
Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation. -
Page 5: Technical Support And Assistance
Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies. -
Page 6: Conventions Used In This Manual
Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. - Page 7 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...
-
Page 8: Package Contents
Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty M1001 Monitor Module Utility DVD Driver USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. -
Page 9: Chapter 1 Product Introductions
Chapter 1 Product Introductions 1000 Series | User Manual... -
Page 10: Overview

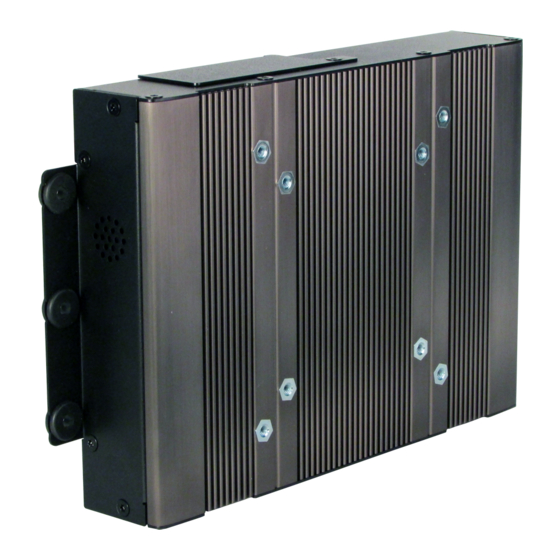

M1001 is a monitor module which supports Convertible Display Systems (CDS) technology; it is compatible with Cincoze Display Modules for different display sizes and touchscreens. M1001 offers both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort. -
Page 11: Key Features
1.3 Key Feature • 1x VGA, 1x DVI-D, 1x DisplayPort Input Interface • 1x USB, 1x COM, 1x Audio Input • OSD Control Pad: LCD On/Off, Auto, Menu, Up and Down • Multi-language OSD Function • Wide Range Power Input 9~48VDC •... -
Page 12: System I/O
1.5 System I/O 1.5.1 Front 1.5.2 Rear DC IN Audio-in Used to plug a DC power input with terminal This port connects PC audio source by the block. bundled audio cable. USB for Touch Panel Connector Use the rear panel standard 15-pin female Use the rear panel standard USB touch panel VGA connector to connect the monitor to the connector to connect the monitor to the system... -
Page 13: Side (Left)
1.5.3 Side (Left) 1.5.4 Side (Right) OSD (On Screen Display) Function: LCD On/Off To increase the value of selected item. Press to turn-on or turn-off the display. Down Auto To decrease the value of selected item. Press to auto adjust the optimal frequency of Power LED horizontal and vertical. -
Page 14: Top
1.5.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) 1.6 Mechanical Dimensions 1000 Series | User Manual... -
Page 15: Chapter 2 Osd Operation
Chapter 2 OSD Operation 1000 Series | User Manual... -
Page 16: Function Description Of Osd
2.1 OSD Function Description 1000 Series | User Manual... -
Page 17: Chapter 3 System Setup
Chapter 3 System Setup 1000 Series | User Manual... -
Page 18: Connecting With Cv Display Module
3.1 Connecting with CV Display Module 1. Locate the module connector slot and loosen the 1 screw. 2. Turn over the module and loosen 2 screws at the back of the connector cover. 1000 Series | User Manual... - Page 19 The photos show the male connector (on display module) and female connector (on PC module) 3. Connect the modules. 1000 Series | User Manual...
- Page 20 4. Have the studs screwed to the display module through the holes of the PC module. 1000 Series | User Manual...
- Page 21 3.2 VESA Mount The following picture indicates VESA mounting hole pattern on M1000, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (M1000+CV display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.
- Page 22 3.3 Panel Mount 1. Accessories provided by Cincoze are as follows. 1000 Series | User Manual...
- Page 23 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. 1000 Series | User Manual...
- Page 24 1000 Series | User Manual...
- Page 25 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. 1000 Series | User Manual...
- Page 26 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
