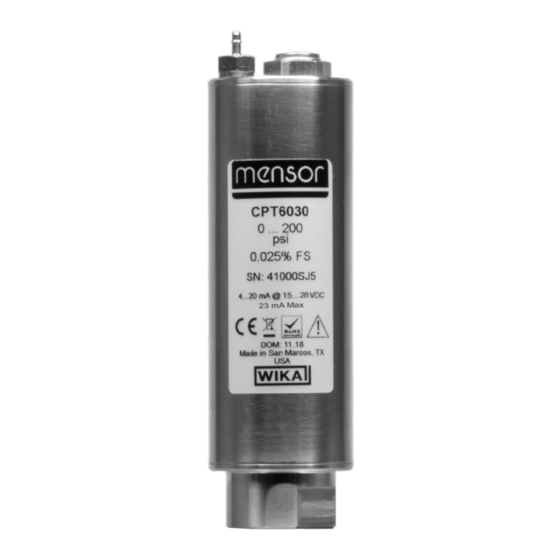

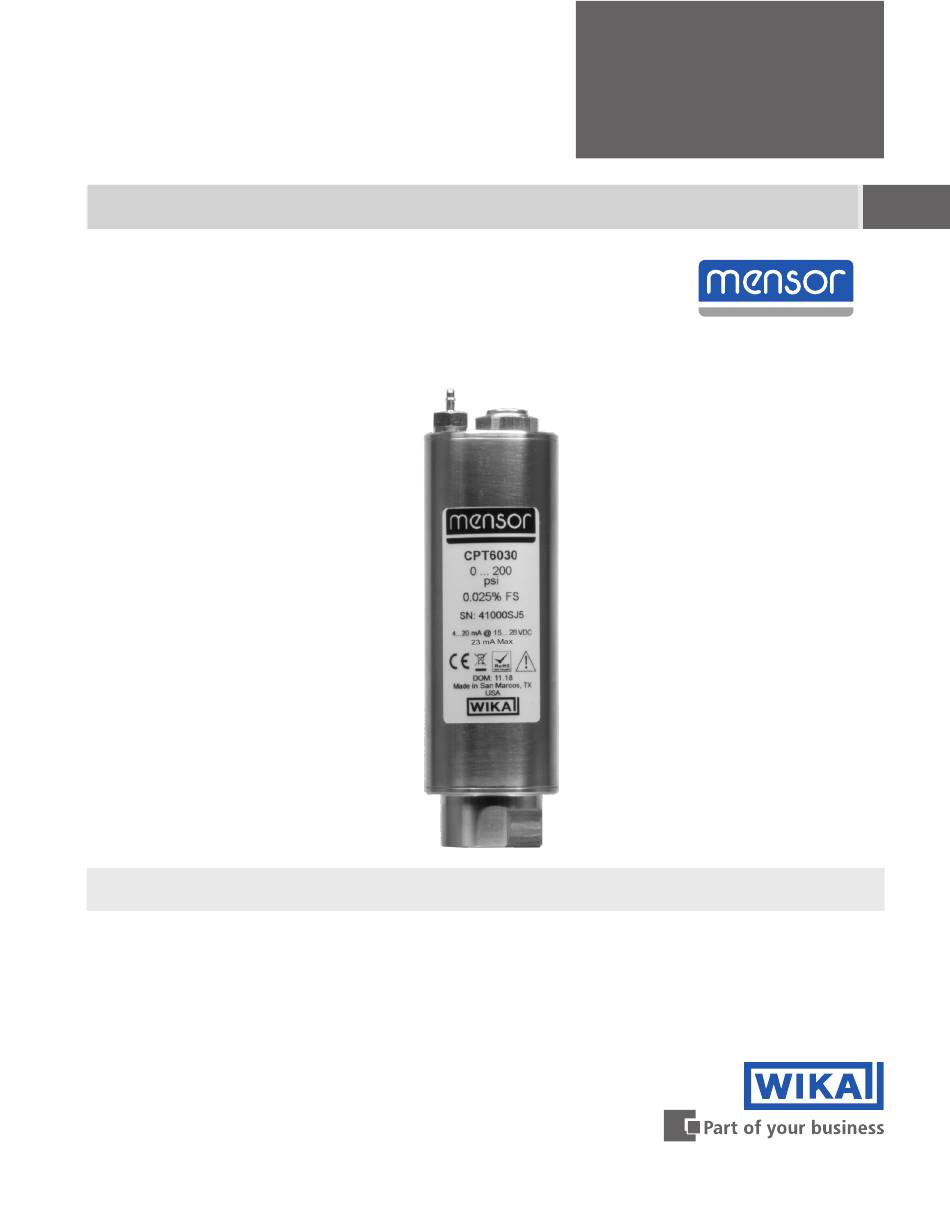

- Page 1 Operating instructions Analog Pressure Transducer, Model CPT6030 Analog Pressure Transducer, Model CPT6030...
- Page 2 Mensor is a registered trademark of Mensor, LP. All other brand and product names are trademarks or registered trademarks of their respective companies. Prior to starting any work, read the operating instructions! Keep for later use! WIKA operating instructions analog pressure transducer, model CPT6030...
-
Page 3: Table Of Contents
Recalibration ........15 6.2.1 Calibration Services by Mensor or WIKA worldwide ....15 6.2.2 Environment . - Page 4 Accessories ........24 WIKA operating instructions analog pressure transducer, model CPT6030...
-
Page 5: General Information
- Application consultant: Tel.: (+1) 512-396-4200 (+1) 800-984-4200 (USA only) Fax: (+1) 512-396-1820 E-Mail: sales@mensor.com techservices@mensor.com Importer for Europe WIKA Alexander Wiengand SE & Co. KG Alexander Wiegand-Straße Address 63911 Klingenberg, Germany - Internet address: www.wika.de / www.wika.com - Relevant data sheet: CT 25.14... -
Page 6: Radio Frequency Emission Notices
1.4.3 Certifications and Accreditations Mensor is registered to ISO 9001:2008. The calibration program at Mensor is traceable to SI units, complying with both the ISO/ IEC 17025:2005 and the ANSI/NCSL Z540-1-1994 standards. WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 7: Short Overview
Scope of Delivery Analog pressure transducer model CPT6030 ■ 5 ft. connection cable with flying leads ■ Operating instruction ■ ISO 17025, NIST or equivalant traceable certificate ■ Pressure adapter (as specified) ■ WIKA operating instructions analog pressure transducer CPT6030... -
Page 8: Safety
The instrument is used in the industrial sector. The operator is therefore responsible for legal obligations regarding safety at work. The safety instructions within these operating instructions, as well as the safety, accident prevention and environmental protection regulations for the application area must be maintained. WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 9: Personnel Qualification
Special knowledge for working with instruments for hazardous areas: The skilled (electrical) personnel must have knowledge of ignition protection types, regulations and provisions for equipment in hazardous areas. Special operating conditions require further appropriate knowledge, e.g. of aggressive media. WIKA operating instructions analog pressure transducer CPT6030... -
Page 10: Personal Protective Equipment
SN:41000MDJ 4...20 mA @ 15...28 VDC 23 mA Max DOM: 3.20 Made in San Marcos, TX USA EU Importer Model Power Requirements Range Symbols Accuracy Date of Manufacture Serial Number Importer Origin WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 11: Symbols
Do not position the equipment so that it is difficult to disconnect the AC power cord. WARNING! Detachable main power supply cord with inadequate ratings should not be used. See Section 9.2 Specifications for power ratings. Additional Warning and Caution notices are found throughout this manual. WIKA operating instructions analog pressure transducer CPT6030... -
Page 12: Transport, Packaging And Storage
Avoid exposure to the following factors: Direct sunlight or proximity to hot objects ■ Mechanical vibration, excessive mechanical shock ■ Soot, vapor, dust and corrosive gases ■ Hazardous environments, flammable atmospheres ■ WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 13: Installation
A media comparable with the wetted parts of the transducer must be used. CAUTION USE THE PROPER PRESSURE MEDIUM! Only use media compatible with materials of construction as specified . This transducer is not designed for oxygen use. WIKA operating instructions analog pressure transducer CPT6030... -
Page 14: Electrical Connections
Note: Power supply should be The pinouts on the six pin connector are: External Connector Pinouts Function Pigtail Color + 15-28 VDC Brown Reserved White Reserved Blue Reserved Black Gray Reserved Pink WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 15: Maintenance And Recalibration
Calibration Services by Mensor or WIKA worldwide Mensor and WIKA worldwide have extensive experience and knowledge of Mensor products. Calibration of the transducers can be performed at the addresses below or by competent internal or external labs using the procedures in this section. -
Page 16: Environment
(600 mTorr, 80 Pa recommended) throughout the system. If you try to run calibration points below that pressure, the system will have significant pressure gradients in it unless left to stabilize for an extended period of time. WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 17: Calibration & Communication Software
The calibration adapter calibrates the CPT6030 digital output and uses the on board known resistor to calibrate the 4-20 mA output for the CPT6030. Negative port for voltmeter DB-9 port for RS-232 communication Positive port for voltmeter 12 VDC power supply port WIKA operating instructions analog pressure transducer CPT6030... - Page 18 Query it for various parameters (range, serial number, calibration date, etc.) • Restore the factory calibration. Complete instructions on how to operate the calibration software utility are detailed in the instructions available to download on the Mensor website along with the software. WIKA operating instructions analog pressure transducer, model CPT6030...
-
Page 19: Dismounting, Return And Disposal
Wear the requisite protective equipment (see Chapter 3.6 “Personal protective equipment”). ▶ Observe the information in the material safety data sheet for the corresponding medium. ▶ Only disconnect the pressure measuring instrument/measuring assembly/test and calibration installations once the system has been de-pressurised. WIKA operating instructions analog pressure transducer CPT6030... -
Page 20: Return
Dismounting, Return and Disposal Return Strictly observe the following when shipping the instrument: All instruments delivered to WIKA or Mensor must be free from any kind of hazardous substances (acids, bases, solutions, etc.) and must be cleaned before being returned. WARNING! Physical injuries and damage to property and the environment through residual media Residual media in the dismounted instrument can result in a risk to persons, the environment and equipment. -
Page 21: Specifications
3) It is defined as the combined effects of linearity, repeatability and hysteresis throughout the stated compensated temperature range. 4) Ranges from 1,500 to 15,000 psig will be sealed gauge transducers. 5) The negative portion of a bidirectional range has the same accuracy as the equivalent positive range. WIKA operating instructions analog pressure transducer CPT6030... -
Page 22: General Specification
Measure port internal volume <1 cc Reference port internal volume ~ 45 cc Communication Measuring rate 21 values/second Certificates Calibration Traceable to SI units through NIST or equivalent 3) Calibration in a vertical position. WIKA operating instructions analog pressure transducer, model CPT6030... -
Page 23: Dimensions In Mm (In)
.74in AUTOCLAVE F250C SAE J514 37° FLARE PORT SAE J514 37° FLARE PORT 7/16-20 THREAD FEMALE PORT 7/16-20 THREAD 1500 to 6000 psi ≤1500 psi 6000 to 15000 psi Figure 8.4 Technical Drawings WIKA operating instructions analog pressure transducer CPT6030... -
Page 24: Accessories
6000604054 1/8” BSPG FEMALE 6000604055 1/8” NPT FEMALE 6000604056 1/4” NPT FEMALE Other pressure fittings are available, consult the factory if you need assistance. Accessories Part Number Description 0019825001 Calibration adapter kit WIKA operating instructions analog pressure transducer, model CPT6030... - Page 25 WIKA operating instructions analog pressure transducer CPT6030...
- Page 26 WIKA subsidiaries worldwide can be found online at www.wika.com. Mensor Corporation WIKA Alexander Wiegand SE & Co. KG 201 Barnes Drive Alexander-Wiegand-Straße 30 San Marcos, TX 78666 • USA 63911 Klingenberg • Germany Tel. (+1) 512 3964200-15 Tel. +49 9372 132-0...
