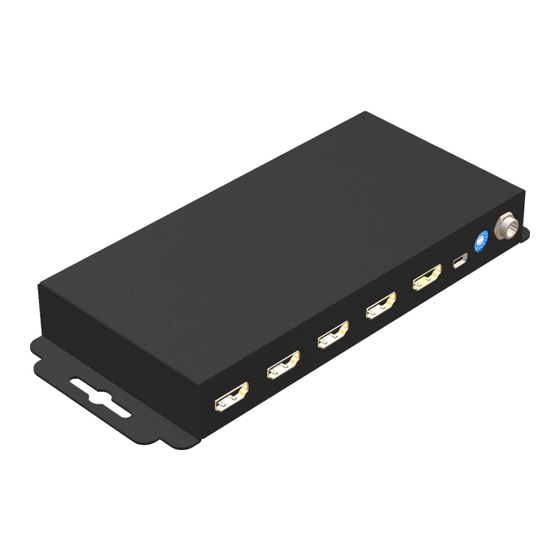

- Page 1 SP-5004PZQ 1x4 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management User Manual rev: 170615 Made in Taiwan...
- Page 2 However, like all electronic equipments, the SP-5004PZQ should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, SP-5004PZQ is suitable for high quality HDMI broadcasting, digital signage and education applications! FEATURES ●...
- Page 4 SPECIFICATIONS Model Name SP-5004PZQ Technical Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a DVI compliance DVI 1.0 HDCP compliance HDCP 2.2 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital,...
- Page 5 PANEL DESCRIPTIONS 1. Signal LED: Signal LED indicator 2. Power LED: Lights on when device is ready 3. HDMI IN: Connect to a HDMI input source 4. HDMI OUT1-4: HDMI outputs to HDMI displays [HDMI OUT1: EDID Learn Default] 5. Mini-USB: For technical support only [firmware update] 6.
- Page 6 HARDWARE INSTALLATION Broadcasts HDMI signal to 4 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Make sure the rotary switch is NOT at “MODE 0” 5.
- Page 7 NOTICE 1. While connecting a new monitor to the splitter under mode D (auto EDID) & mode E and F (EDID learning), experiencing a short period of time without displaying might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.
- Page 8 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5004PZQ features and specifications is subject to change without further notice.
