- Page 1 1x2 HDMI Splitter over Cat.X with Local Out User Manual rev: 111123 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-5012 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction

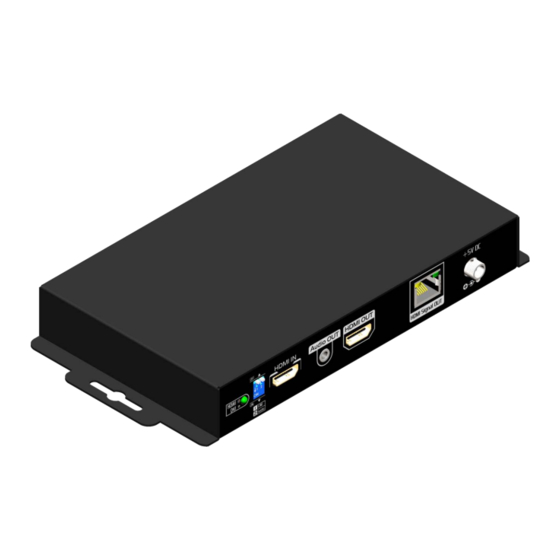

Cat-5/5e/6 cables with HDMI over CAT5 receivers (CV-735 and/or CV-715s). For convenience, SP-5012 is also equipped a local HDMI output for monitoring. With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet) long under Full HD, and make the overall transmission distance superior than regular HDMI splitters or matrix switches in the market. -
Page 4: Specifications
SPECIFICATIONS Model Name SP-5012 Technical Role of usage 1x2 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color Full HD (1080p) –... -
Page 5: Package Contents
PACKAGE CONTENTS ● 1x SP-5012 ● 1x DC 5V 4A wall wart ● 1x User Manual PANEL DESCRIPTIONS Rear Panel HDMI / DVI LED: Input signal format indicator [bright - HDMI source signal is detected; dark - no HDMI signal.] DIP SWITCH: See more detail in the DIP SWITCH SETTING section. -
Page 6: Dip Switch Setting
DIP SWITCH SETTING DIP Switch Position Video Audio Description Pin 1 Pin 2 — Default Mode Surround Off [] Off [] Up to 1080p Up to 1080p & surround sound audio output up to 7.1ch (DTS-HD Master & Dolby TrueHD) —... -
Page 7: Connection Diagram
CONNECTION DIAGRAM... -
Page 8: Pin Definition
PIN DEFINITION HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock– Pin 3 TMDS Data2– Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15... -
Page 9: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI or HDMI display EDID information. 2. All HDMI over Cat.X transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C &... -
Page 10: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5012 features and specifications is subject to change without further notice.
