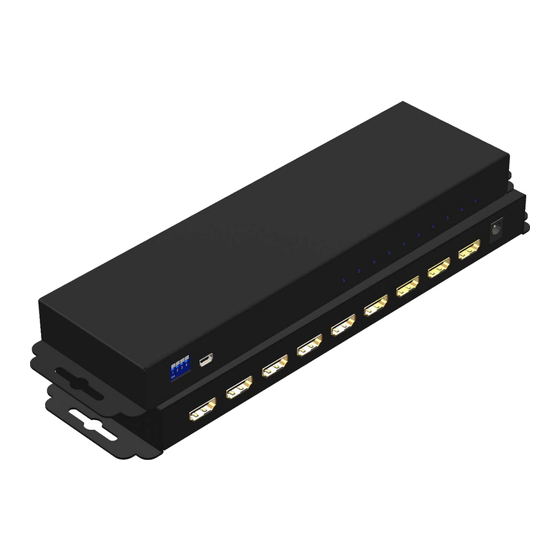

- Page 1 SP-5008IZ 1x8 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management User Manual rev: 180131 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-5008IZ should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P (2) Frame rate conversion (3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0 2. SP-5008IZ can bypass 4K HDR data content, but can NOT process it and make HDR content 100% fit into 1080p PACKAGE CONTENTS ●... -
Page 4: Specifications
SPECIFICATIONS Model Name SP-5008IZ Technical Role of usage 1x8 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital,... -
Page 5: Paneldescriptions
PANEL DESCRIPTIONS 1. EDID MODE: See more detail in the DIP SWITCH SETTING section 2. Mini-USB: For technical support only [firmware update] 3. Power LED: Lights on when device is ready 4. Signal LED: Input signal LED indicator 5. Signal LED: Output 1-8 signal LED indicator 6. -
Page 6: Dip Switch Setting
DIP SWITCH SETTING DIP Switch Position Description Pin 2 Pin 3 Pin 4 Off [] Off [] Off [] Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio On [ ] Off [] Off [] Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio Ultra HD(4K2K@30)(4K2K@60 420) –... -
Page 7: Hardware Installation
HARDWARE INSTALLATION Broadcasts HDMI signal to 8 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply. 5. -
Page 8: Notice
NOTICE 1. If somehow user cannot get video output, please try to adjust EDID dip switch to “[pin2,pin3,pin4]=[↓- ↑-↓]” or “[pin2,pin3,pin4]=[↑-↓-↓]” for trouble shooting. Under “[pin2,pin3,pin4]=[↓-↑-↓]”, there will be video output. The only requirement is that the display has to support at least Full HD. If default Full-HD EDID still cannot work, user can switch to “[pin2,pin3,pin4]=[↑-↓-↓]”... -
Page 9: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5008IZ features and specifications is subject to change without further notice.
