Summary of Contents for GoMax Electronics SP-5128

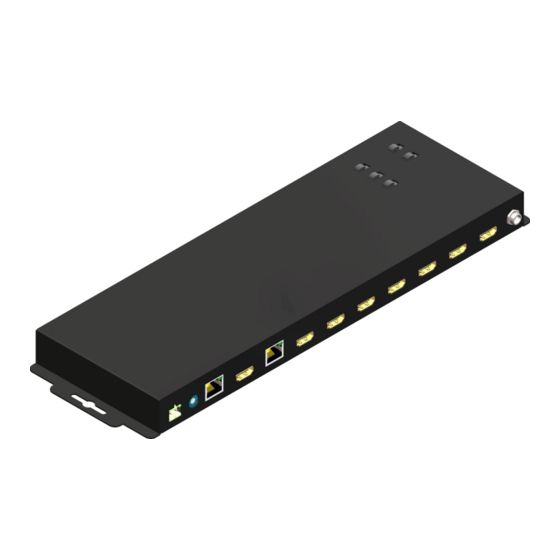

- Page 1 2x8 HDMI Splitter with EDID Manager User Manual rev: 111130 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-5128 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
● Support HDMI Deep Color & 3D ● HDCP compliant ● HDMI video distribution to up to 7 displays and one Cat.X Receiver or cascade to another SP-5128 ● Acts as a 2x1 HDMI switch plus a 1x8 HDMI over Cat.X splitter ●... -
Page 4: Specifications
SPECIFICATIONS Model Name SP-5128 Technical Role of usage 2x8 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.25Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 Transmission over... -
Page 5: Panel Descriptions
HDMI Signal IN 1: for cascading from another SP-5128 or SP-5022 HDMI IN 2: for connecting to video source, SP-5012, SP-5018, or another SP-5128 HDMI Signal OUT: for connecting to display through CV-715 or CV-715s; or for cascading to another... -
Page 6: Edid Management
8 bit ROTARY CONTROL In order to adapt the CAT5 cable, SP-5128 offers 8-level equalization control on the received HDMI signal level. 0-to-7 = strongest-to-weakest signal level for respective transmission length [long to short]. It is recommended to switch from 7 to 0 to find the optimal visual... -
Page 7: Edid Learning
EDID LEARNING 1. Power up the SP-5128. Connect to HDMI OUT 7 with the display you want the SP-5128 to learn its EDID. 2. The SP-5128 is only bound to learn the EDID from the display for the HDMI source device connected to HDMI OUT 7. -
Page 8: Hardware Installation
3. Connect all HDMI outputs to the HDMI displays. 4. Connect RJ45 output to HDMI over CAT5 receiver through Cat-5e cable. 5. Plug in 5V 4A DC power supply. 6. Power on the SP-5128. 7. Power on the HDMI displays. 8. Power on the HDMI source(s). -
Page 9: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use CV-1001 or CV-5005H EDID Reader/Writer to retrieve and provide DVI or HDMI display EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C &... -
Page 10: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5128 features and specifications is subject to change without further notice.
