- Page 1 SP-9008 1x8 VGA/Component/S-Video/Composite Splitter User Manual Made in Taiwan ...
- Page 2 Safety and Notice The SP-9008 1x8 VGA/Component/S-Video/Composite Splitter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, SW-9008 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

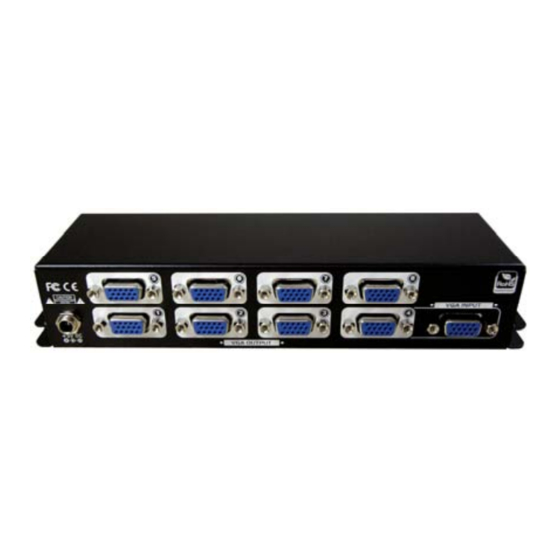

- Page 3 The SP-9008 is designed to work as a duplicator and an amplifier at the same time for VGA video applications. The SP-9008 not only takes one video input from a VGA source and immediately directs it to eight VGA monitors or projectors, but also boosts and extends the signal up to 65m (210ft) without noticeable signal loss or picture degradation.
- Page 4 Inter-locked power supply Power supply 5V 4A DC Power consumption 5 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x SP-9008/9004/9002 Package Contents 1x 5V power adapter 1x User Manual ...
-
Page 5: Application Diagrams
Application Diagrams Hardware Installation 1. Connect a PC source to the VGA input of the SP‐9008. 2. Connect eight VGA monitors or projectors to the VGA outputs. 3. Plug power adapter cable into 5V DC power jack. ... -
Page 6: Limited Warranty
Limited Warranty The SELLER warrants the SP‐9008 1x8 VGA/Component/S‐Video/Composite Splitter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 ...
