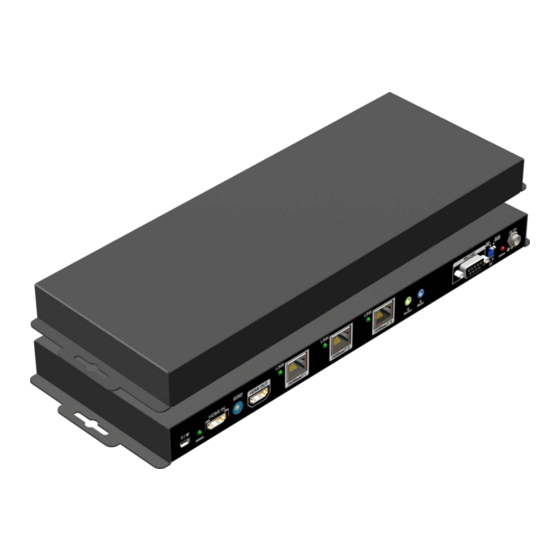

- Page 1 1x4 HDMI Splitter over Single Cat.X with HDBaseT-Lite, 4K2K, IR & RS-232 User Manual rev: 150205 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-5004V should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
With built-in RS-232 firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost 16 bit deep color video and high definition audio support, SP-5004V is suitable for high quality HDMI broadcasting, digital signage and education applications! FEATURES ●... -
Page 4: Specifications
SPECIFICATIONS Model Name SP-5004V Technical Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI Deep Color, full 3D & 4K2K@30 HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Rear Panel 1. Mini-USB: For technical support only [firmware update] 2. Signal LED: Signal LED indicator 3. HDMI IN: Connect to a HDMI input source 4. EDID Management Rotary control: MODE 0 EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio MODE 1 EDID Full-HD(1080p@60) - 24bit 2D video &... -
Page 6: Hardware Installation
HARDWARE INSTALLATION Broadcasts HDMI signal to 4 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply. 5. - Page 7 Software HDBaseT Manager 1. Introduction What is HDBaseT Manager? HDBaseT Manager is the specialized software focusing on detecting the connecting environment and providing in-time investigation on the device that equipped Valens chip inside to find the potential problems in house efficiently and easily. ...
- Page 8 2. Firmware 2.1 Check the current firmware version The upper part reveals the IC type and firmware version on the TX and RX.
- Page 9 2.2 Update the require firmware In the lower parts, we will see the information as below. Step 1: Select the firmware file from your PC. Step 2: Review the file information of the selected firmware. Step 3: Select to get firmware updated and verified at the same time.
- Page 10 4. Check the status of connecting 4.1 In upper part, it will reveal the Valens Mode and Source type of different ports. 4.2 If connected successfully, you will see the status as below: 4.3 If fail to connect, you will get the status as below: 4.4 Indication radio the light to recognize the connection condition.
- Page 11 If the status is good, the light should always keep green. If the status is bad, the light will turn to yellow or red. 5. Burn-In Test 5.1 Select the required polling period and click button to get the data 5.2 Get the technical file to analyze the unusual situation ...
- Page 12 5.3 If there is error detected, you will drops as shown below 5.4 Select and send the file to the engineer for analyzing.
-
Page 13: Notice
NOTICE 1. While connecting a new monitor to the splitter, experiencing a short period of time without display might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. -
Page 14: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-5004V features and specifications is subject to change without further notice.
