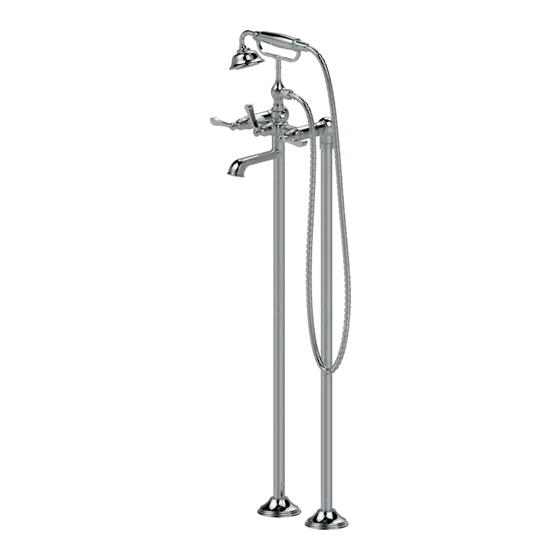

Berea Floor-mount Tub Filler
11-04
Installation Instructions
For ease of installation you will need:
To read the installation instructions completely before beginning.
To read all warnings, care, and maintenance information.
Anti-scald protection is the responsibility of the installer and
according to applicable codes.
Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
15122805
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crosswater 11-04
Summary of Contents for Crosswater 11-04
- Page 1 Berea Floor-mount Tub Filler 11-04 Installation Instructions For ease of installation you will need: Before beginning installation, check for any damage To read the installation instructions completely before beginning. that may have occurred during transport. To read all warnings, care, and maintenance information.
-
Page 2: Installation Instructions
11-04 Installation Instructions FLOOR JOIST 1/2-14 NPT Cold Mounting base Thread and securely tighten 1/2" male Adequate floor support is required. The WOOD SUPPORT must be a minimum of NPT hot and cold supply lines into the 2" (51mm) thick by 10" (254mm) wide. Wood support must be located within mounting base. -
Page 3: Replacement Parts
11-04 Replacement Parts 5mm HEX WRENCH FINISHED FLOOR Before final installation, check that all sealing surfaces are clean.Install the mounting adapters onto the mounting base. Install the mounting screws and washers through the mounting plate. Attach handshower yoke to valve Mount valve body on the riser pipe And into the mounting base. -
Page 4: Cleaning Instructions
11-04 Installation Instructions NO. Description Part No. 1 Handshower 5F0M015901 0A0 Handshower Yoke 5y0010200 0 Diverter cartridge 9Q240800NT Cartridge - Hot 52009335NT Diverter Handle 9Q240700 Handle Assembly- Hot 9Q240500 Handle Assembly- Cold 9Q240600 Cartridge - Cold 52009347NT Aerator Assembly 5Q0M0443PL... -
Page 5: Installation Dimensions
5-7/8 3-1/8 2-1/2-14NPT Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 www.crosswaterlondon.com Toll free number: 844-XWATER-1 (844-992-8371)
