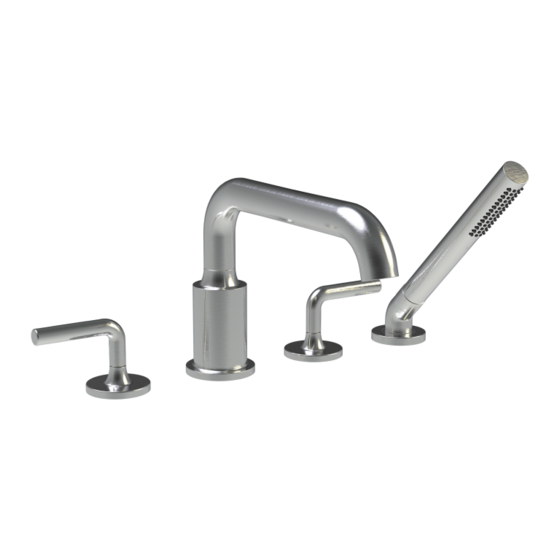

Crosswater Taos Deck-mount Tub Faucet with Handshower Trim 17-03-T Installation Instructions

Replacement Parts
NO. Description Part No.
1 Diverter Knob Assembly 9Q1144
2 Set Screw & Allen Key 9Q1350NT
3 Handle Assembly 9Q1143
4 Diverter Rod Extension 9Q257000NT
5 Washer, Key & Aerator 9Q1110PL
6 Hand Shower 5F0M0174
1
2
3
4
Applicable Standards/Codes
IAPMO certified to meet or exceed the following:
• ASME A112.18.1/CSA B125.1
• Uniform Plumbing Code
• National Plumbing Code of Canada
• ADA Compliant
Installation Dimensions
9"
3 ＂
5 ＂
2-1/4"
15121437-C
17-03-T
6
5
19" Max 19" Max
7"
4"
2-1/2 ＂
2-1/2"
2-1/8 ＂
1-1/2" - 1-1/2 ＂
1-1/4 ＂ - 1-1/2 ＂
3/4 ＂ -14 NPT
59"
19-3/4"
4
Taos Deck-mount Tub Faucet with Handshower Trim
17-03-T
Installation Instructions
7-1/2"
2-1/8" MAX
1-1/2"
For ease of installation you will need:
● To read the installation instructions completely before beginning.
● To read all warnings, care, and maintenance information.
Anti-scald protection is the responsibility of the installer and
according to applicable codes.
Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
15121437-C
