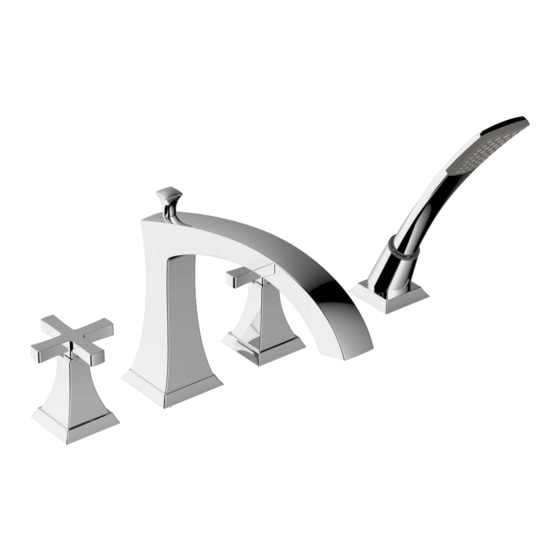

Leyden Deck-mount Tub Faucet with Handshower Trim
14X-03-T
Installation Instructions
For ease of installation you will need:
● To read the installation instructions completely before beginning.
● To read all warnings, care, and maintenance information.
Anti-scald protection is the responsibility of the installer and
according to applicable codes.
Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or
after installation.
15121442-A
Advertisement
Table of Contents
Related Manuals for Crosswater Leyden 14X-03-T
Summary of Contents for Crosswater Leyden 14X-03-T
- Page 1 Leyden Deck-mount Tub Faucet with Handshower Trim 14X-03-T Installation Instructions For ease of installation you will need: Before beginning installation, check for any damage that may have occurred during transport. ● To read the installation instructions completely before beginning. Note: Damage claims cannot be made during or ●...
-
Page 2: Installation Instructions
14X-03-T Note: For illustration purposes, lever handle version is shown. Please refer to page 5 for instructions on how to remove the lever handle and install the cross handle. Installation Instructions Insert diverter knob and rod assembly into the spout and thread the Place the spout washer under the spout and install spout on spout assembly onto the diverter rod in the... -
Page 3: Replacement Parts
Re-install the aerator with key. Installation complete. Replacement Parts NO. Description Part NO. Diverter Knob & Rod Assembly 9Q1108 Deck Spout Set Screw & Allen Key 9Q1350NT Cross Handle Assembly 14-XHDL Washer, Key & Aerator 9Q1110PL Washer 51011909PL Hand Shower Set Screw & Allen Key 9Q1349NT Hand Shower 5F0M0178... -
Page 4: Installation Dimensions
Please see the website for care instructions for specific finishes. Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757 www.crosswaterlondon.com... - Page 5 Leyden Cross Handle Installation Instructions 14X-02-T, 14X-03-T,14X-08 1. Hold the handle escutcheon and turn it counterclockwise to remove 2. Take out the screw and lock 3. Remove the lever 4. Replace with cross handle washer with a Phillips screwdriver and re-install the screw and washer...
