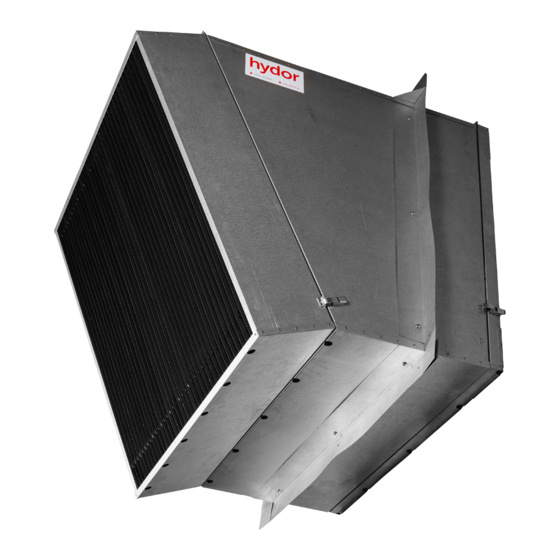

Side Wall Easi-Fit Fan Unit
Installation and Maintenance Instructions.
THESE INSTRUCTIONS MUST BE READ FULLY BEFORE COMMENCING INSTALLATION.
Owner / installer: The life of this apparatus and its efficiency will be increased if
its use and maintenance is carried out in accordance with these instructions and
current statutory requirements. The installation and initial adjustments should
be carried out by a qualified and competent technician. Hydor Limited should be
consulted before substituting or fitting parts from another manufacturer. It is the
responsibility of the installer to verify that the installation is in accordance with
current statutory requirements and the owner is given the current User's Manual.
Any modifications to the unit or its installation, even the smallest
modification, change or elimination of security components or pieces
that influence the efficiency or loss of ventilation, will result in the CE
Certification and Hydor's warranty being cancelled.
1.
General
1.1
It is important these Installation and Maintenance Instructions are fully
adhered to.
1.2 Full details of the unit supplied are shown on the product nameplate. If in
doubt about any detail contact Hydor or its agents for clarification.
1.3 All electrical installation must be carried out by suitably qualified and
competent personnel in accordance with all current statutory
requirements.
1.4
These instructions cover only the Hydor product and do not include the
supply or installation of any safety equipment that may be required e.g.
adequate guarding or protection from rotating parts and proper electrical
isolation.
1.5 Any declarations made by Hydor about product installation and safety, are
dependent on the fan equipment being used within installations which
themselves meet the requirements of the relevant Standards and
Directives of your region.
1.6 The fan is designed for use in an ambient temperature of up to 50°C and
up to 95% relative humidity. The fan is not suitable for corrosive or
explosive atmospheres.
incorrect
correct, minimum hei

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HXSU450 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydor HXSU450

Summary of Contents for Hydor HXSU450

  • Page 1 The installation and initial adjustments should be carried out by a qualified and competent technician. Hydor Limited should be consulted before substituting or fitting parts from another manufacturer. It is the responsibility of the installer to verify that the installation is in accordance with current statutory requirements and the owner is given the current User’s Manual.

  • Page 2: Installation

    (wired for form B airflow), flying lead (four core) with loose capacitor. Ensure that the impeller is free to rotate before and after installation. 2.2 If there are any queries concerning the fan equipment, Hydor should be contacted prior to the installation.
  • Page 3 Start-up 3.1 Before power is supplied to the unit, check that the wiring is correct as per the fan connection diagram. 3.2 At initial start-up, check that impeller rotation and airflow direction is correct. 3.3 Check that the motor amperage draw does not exceed the nameplate rating.
  • Page 4 Assembly WIRE GUARD REMOVABLE WEATHER LOUVRE 4° Product Code HXSU450 HXSU500 HXSU560 HXSU630 HXSU710 HXSU800 1070 1025 Dimensions in mm. Wiring 6.1 Check that the fan unit supplied is suitable for the supply voltage and type of fan being replaced.

  • Page 5: Single Phase

    6.3 Single Phase FORM "A" AIRFLOW MODELS U2 - BLACK U3 - WHITE 220V TO 240V 1Ph 50Hz SUPPLY U4 - BROWN N - BLUE U1 - RED L - BROWN Z2 - BLUE CAPACITOR Z1 - YELLOW E - GREEN/YELLOW ANTI-CLOCKWISE ROTATION TO REVERSE THE MOTOR ROTATION FORM "B"...

  • Page 6: Three Phase

    6.4 Three Phase STAR V2 - YELLOW U1 - BLACK 380V TO 440V 3Ph 50Hz W2 - BLUE SUPPLY V1 - BROWN U2 - RED W1 - WHITE E - GREEN/YELLOW DELTA TO CHANGE MOTOR ROTATION SWAP ANY 2 SUPPLY PHASES DELTA 380V TO 440V 3Ph 50Hz 230V 3Ph 50Hz...

  • Page 7: Dimensional Data

    Dimensional Data 4 Holes Mounting E CTRS øJ Face Airflow Airflow Airflow Airflow Mounting Face Form A Airflow Form B Airflow Product Code (A Airflow) (B Airflow) HXP45041 450 462 500 575 535 HXP45043 450 462 500 575 535 HXP45061 450 462 500 575 535 HXP45063 450 462 500 575 535 HXP50041 500 512 560 655 615 HXP50043 500 512 560 655 615...
  • Page 8 Guarantee Hydor or its agents will, within a period of one year from the date of dispatch from their works, at its option, replace any goods, which are proven to have defects as a result of defective materials or workmanship. The goods must be inspected by a Hydor official and if necessary returned, with a Returns Note Number, carriage paid, for further examination.
